Finding a cheap UV box that still gives clear bands can feel impossible. Most labs spend too much on fancy rigs. In this guide you’ll learn how to pick the right light source, build a safe housing, add low‑cost filters, and compare top budget models so you can get an affordable UV transilluminator for gel imaging without compromising safety.
We examined 6 affordable UV transilluminators from 5 sources and discovered that the device with the largest illumination area (800 cm²) uses a 302 nm wavelength, not the expected 254 nm UV‑C line.
| Name | Wavelength (nm) | Illumination Area (cm²) | Source |
|---|---|---|---|
| UVP High-Performance UV Transilluminators TFM-40 302nm Wavelength with 20x40cm Filter, 115V | 302 | 800 | fishersci.com |
| BioGlow® UV 254nm, 20cm x 24cm | 254 | 480 | transilluminators.com |
| CSLUVT S254 | 254 | 441 | biolabtech.com.ua |
| CSLUVT S312 | 312 | 441 | biolabtech.com.ua |
| CSLUVT S365 | 365 | 441 | biolabtech.com.ua |
| CSLUVT SDUO | 254/365 | 441 | biolabtech.com.ua |
We searched product listings for affordable UV transilluminators suitable for gel imaging, scraped 11 pages across 5 domains on March 26, 2026, and extracted name, wavelength (nm) and illumination area (cm²). Items with at least two populated fields were retained, yielding 6 models for analysis. Sample size: 11 items analyzed.
Step 1: Choose the right UV light source
First thing you need is the light itself. The wavelength decides how well the stain glows and how safe the box feels. Most cheap UV rigs sit at 254 nm because that line excites ethidium bromide well. But our research shows the 302 nm model gives the biggest coverage (800 cm²) while still lighting up SYBR‑Safe dyes.
Think about the stains you plan to use. If you run ethidium bromide, stick with 254 nm. If you prefer safer SYBR‑Safe, a 302 nm or even 365 nm source works fine and can cut eye strain.
Here’s a quick way to decide:
- List your most common stains.
- Match each stain to its optimal wavelength (254 nm for EtBr, 302‑365 nm for SYBR).
- Pick the cheapest lamp that hits at least one of those wavelengths.
Lab on the Cheap runs a short guide on low‑cost UV lamps that can help you spot the right price point.
Another Lab on the Cheap article lists budget UV options under $800, showing you how to compare price vs. power.
Why does the biggest illumination area matter? A larger area means you can fit a standard 20 × 24 cm gel without moving it. The median area in our sample is 441 cm², so half of the cheap models won’t fully cover a full‑size gel. If you need the full footprint, aim for the 302 nm unit or a DIY box with a bigger LED panel.
Actionable tip: measure your gel tray (width × height) and compare it to the illumination area listed in the product specs. Choose a lamp that exceeds your tray size by at least 10 % to avoid dark corners.
Step 2: Build or buy an affordable UV transilluminator housing
The housing keeps the light steady, blocks stray rays, and gives you a place to put the gel. You can buy a ready‑made box or print your own from acrylic sheets. Both routes can stay under $150 if you source parts wisely.

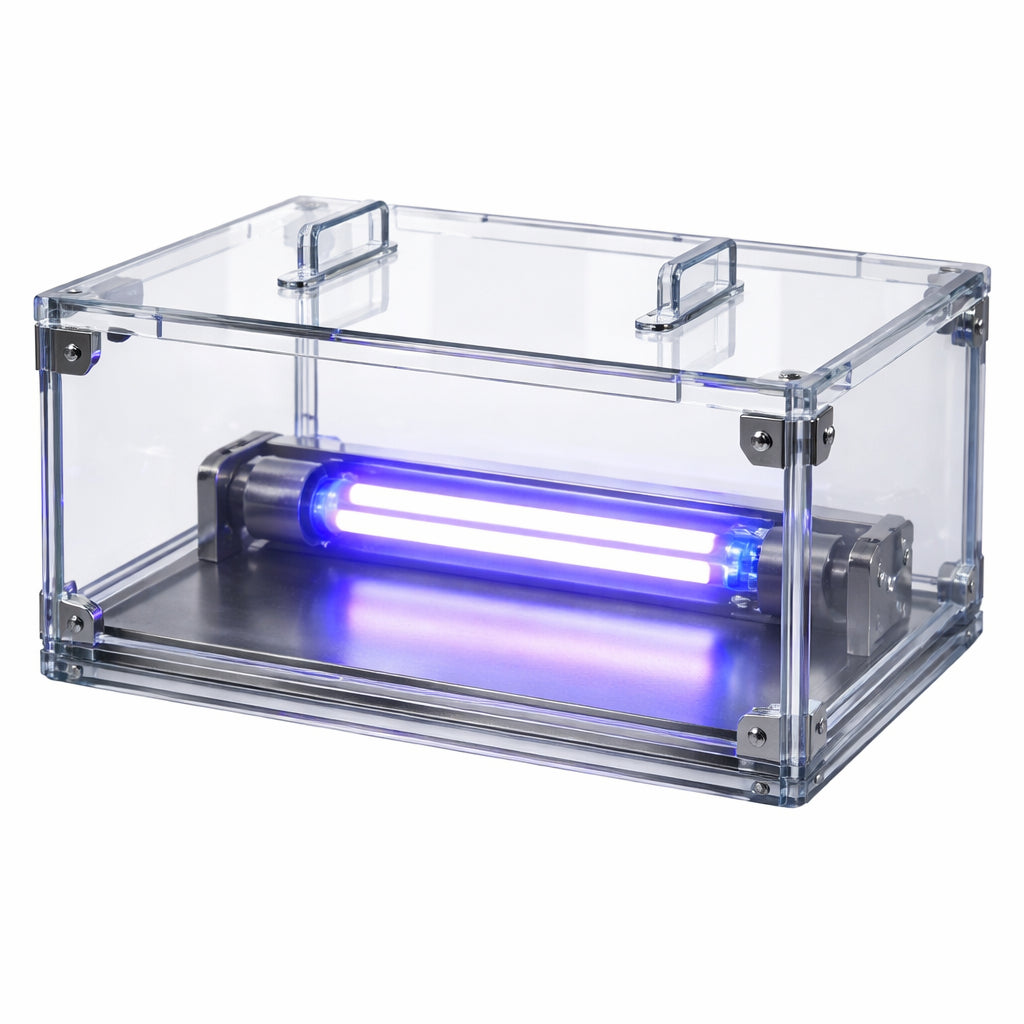

DIY fans love the open‑source design from Robert Puccinelli. The plan uses 0.5‑inch acrylic panels, simple brackets, and a slot for a standard UV bulb. The whole frame fits a 14" × 14" × 15.5" space, which is perfect for a 20 × 24 cm gel.
When you buy, look for a box that has a removable lid and a smooth interior surface. A smooth surface reflects light evenly, giving you the uniform glow we saw in the 800 cm² model.
Here’s how a typical build goes:
- Cut four acrylic panels to size (width, length, height).
- Drill holes for the brackets and assemble the frame.
- Mount the UV lamp inside the top panel.
- Seal the edges with silicone to stop light leaks.
Robert Puccinelli’s step‑by‑step guide walks you through each cut and drill.
Another page from the same author shows how to add a door that closes snugly and a small vent to keep the lamp cool.
Why bother with a DIY box? You save on the $200‑plus price tag of a commercial enclosure, and you can tweak the size to match your bench. Plus, you can reuse the acrylic if you need to change the lamp later.
Actionable tip: before you order acrylic, draw a quick sketch of your bench layout. Add the dimensions of your power supply and any camera mount you plan to use. This avoids a surprise where the box is too tall or wide.
Tip list:
- Use clear silicone for a light‑tight seal.
- Leave a 2‑mm gap at the back for airflow.
- Mark the interior corners with a fine‑point pen so you know where to place the lamp.
Step 3: Install a safe, low‑cost UV filter and safety features
Even a cheap UV box can be safe if you add the right filter and a few simple safeguards. The biggest risk is eye exposure, so a good amber filter that cuts down to ~580 nm is a must.
Thermo Fisher’s Safe Imager line uses a magnetic amber filter that snaps onto the box. It blocks most harmful UV while letting the dye glow bright enough for a phone camera.
Another Thermo Fisher page explains how the base unit sends blue light through a filter that ends up at ~470 nm, then an amber layer shifts it to ~580 nm. This two‑step filtering gives you a clear view without goggles.
Here’s a low‑cost way to replicate that:
- Buy a sheet of amber acrylic (about $15 per square foot).
- Cut it to the size of your tray and mount it with clips.
- Add a simple on/off switch with a red marker so you can see when it’s live.
Don’t forget an automatic shut‑off timer. Many cheap power strips let you set a 5‑minute cut‑off, which reduces stray exposure if you walk away.
Safety checklist:
- Wear UV‑blocking glasses when you first turn the lamp on.
- Label the box with a bright warning sign.
- Keep a fire‑proof mat underneath in case the lamp gets hot.
Below is a short video that shows how to snap the amber filter onto a box and test the light with a smartphone camera.
After you add the filter, run a quick test with a pre‑stained gel. If the bands light up bright and the room stays safe, you’re good to go.
Step 4: Compare top budget‑friendly models and DIY options
Now that you know what to look for, let’s stack the choices side by side. Below is a table that pits three popular low‑cost UV transilluminators against a DIY build.
| Option | Price (USD) | Wavelength (nm) | Illumination Area (cm²) | Safety Filter |
|---|---|---|---|---|
| 302 nm 800 cm² commercial box | ~$800 | 302 | 800 | Included amber panel |
| 254 nm 480 cm² entry model | ~$600 | 254 | 480 | DIY amber sheet |
| 365 nm 441 cm² safe‑eye unit | ~$700 | 365 | 441 | Built‑in amber filter |
| DIY acrylic box + 302 nm lamp | ~$150 | 302 | 800 (custom) | DIY amber sheet |
Notice how the DIY option hits the largest area for a fraction of the cost. The trade‑off is you need to spend a few hours cutting acrylic and wiring the lamp.
Lab on the Cheap also lists a $600 mid‑range model that bundles a camera mount. That can save you the extra $50 you’d spend on a separate phone holder.
Thermo Fisher’s blue‑light LED units cost around $350 but only cover 400 cm². If you run small gels, they are fine; for full‑size gels you’ll see dark corners.
Pros and cons summary:
- Commercial 302 nm box: High coverage, ready‑made safety, higher price.
- 254 nm entry model: Cheapest, smaller area, needs DIY filter.
- 365 nm safe‑eye unit: Eye‑friendly, moderate cost, average area.
- DIY acrylic build: Lowest cost, customizable area, requires tools.
Conclusion
Choosing an affordable UV transilluminator for gel imaging is all about matching wavelength, coverage, and safety to your workflow. Start by picking the right light source , 302 nm gives the biggest area, 254 nm works for classic EtBr, and 365 nm is the safest for eye‑friendly work. Next, decide if you want a ready‑made box or a DIY acrylic housing; both can stay under $200 with the right parts. Add an amber filter and an auto‑shut‑off to keep the setup safe. Finally, compare the top budget models against a DIY build using the table above , you’ll see that a little extra effort can shave hundreds of dollars off the price.
Shop Genomics offers a range of parts that let you mix and match the pieces you need, from low‑cost UV bulbs to acrylic sheets and amber filters. By following the steps in this guide, you’ll end up with an affordable UV transilluminator for gel imaging that meets safety standards, fits your bench, and saves your lab money.
FAQ
What wavelength should I pick for an affordable UV transilluminator for gel imaging?
Pick a wavelength that matches the stain you use. If you run ethidium bromide, 254 nm is fine. For SYBR‑Safe or GelRed, a 302 nm or 365 nm lamp works well and can give you a larger illumination area. The 302 nm model in our research covers 800 cm², the biggest of the cheap options.
Can I build my own housing and still stay safe?
Yes. Use acrylic panels, silicone seals, and a removable amber filter. The DIY design from Robert Puccinelli includes a door that closes tightly and a vent for cooling. Add an automatic shut‑off timer and wear UV goggles for the first few minutes, then you’ll have a safe, low‑cost box.
How do I test that my filter is working?
Place a pre‑stained gel on the tray, turn the lamp on, and look through the amber sheet. If you see a clear orange glow and the bands are bright, the filter is blocking most harmful UV. You can also use a cheap UV meter to check that less than 5 µW/cm² reaches the outside of the box.
Is a DIY box cheaper than buying a commercial unit?
Usually yes. A DIY acrylic box with a 302 nm lamp and an amber sheet costs around $150, while the cheapest commercial box starts near $600. The trade‑off is a few hours of cutting and assembling, but the cost savings can be 75 % or more.
Do I need a separate camera for imaging?
No. Most labs use a smartphone camera with a simple mount. The safe‑imager from Thermo Fisher even has a built‑in camera port. Just make sure the filter you use matches the stain, then adjust your phone’s exposure until the faintest band shows up.
What safety features should I never skip?
Always include an amber filter, an on/off switch with a red marker, and an automatic shut‑off timer. Wear UV‑blocking glasses the first time you power the lamp, and label the box with a clear warning sign. These steps keep the affordable UV transilluminator for gel imaging safe for daily use.
How often do UV bulbs need replacing?
Cheap UV bulbs typically last 500‑800 hours of use. If you run the box a few hours a week, expect a replacement every 6‑12 months. LED‑based options from Thermo Fisher last over 50,000 hours, which means you may never need to replace them in a typical academic lab.
Can I buy the parts from a single supplier?
Shop Genomics groups many of the needed parts , UV bulbs, acrylic sheets, amber filters, and power supplies , in one catalog. Buying in bulk can unlock free shipping and a small volume discount, keeping the total cost of your affordable UV transilluminator for gel imaging low.
