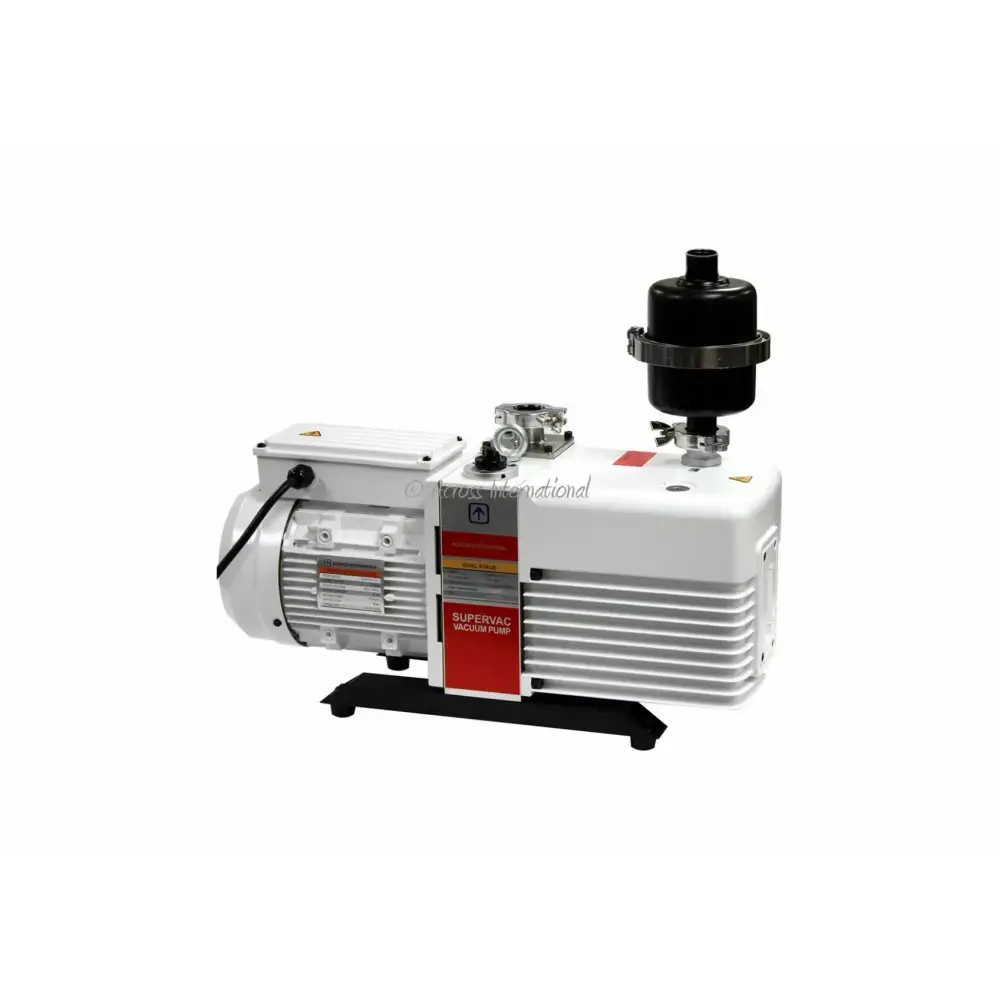

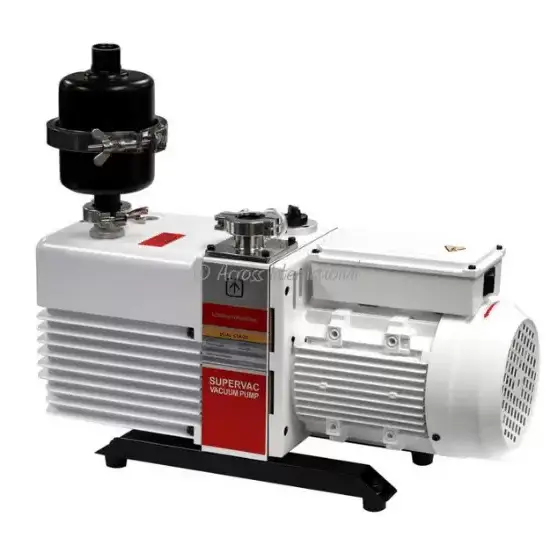

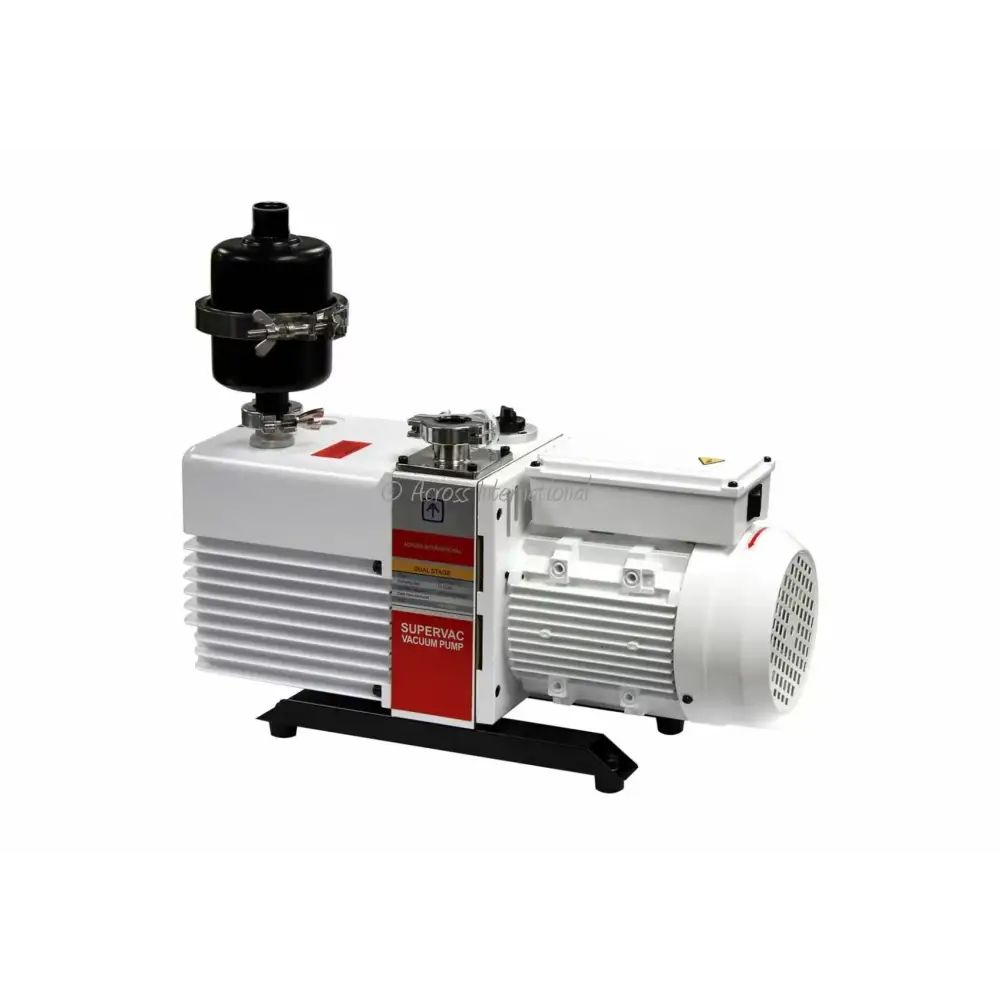

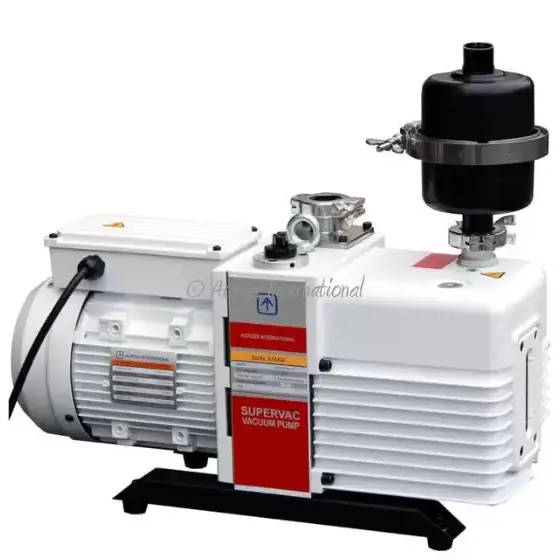

Ai SuperVac 21 cfm Corrosion-Resist 2-Stage Pump UL/CE

The Ai SuperVac 21 cfm Corrosion-Resistant 2-Stage Vacuum Pump is a commercial-grade, high-performance vacuum pump designed for long-term, continuous operation in demanding environments. This pump is especially ideal for applications such as rotary evaporators and other systems requiring a reliable and powerful vacuum. The UL certification (for the 115V model) ensures the pump meets high safety standards, making it suitable for a wide range of professional applications.

Key Features:

• UL Certified (115V Model): The 115V version of this pump is UL certified, meeting rigorous safety standards for use in many municipal and industrial settings. This certification provides enhanced safety and helps improve the lifespan of the pump.

• High Performance: The 21 cfm pumping rate makes this pump extremely effective at quickly pulling a vacuum, capable of achieving an ultimate vacuum down to 0.3 micron. This ensures rapid, efficient removal of air and vapors during distillation or other vacuum-dependent processes.

• Corrosion-Resistant Design: Built with corrosion-resistant materials, the Ai SuperVac pump is engineered for reliability in environments with harsh solvents or other corrosive substances, making it an excellent choice for laboratories or industrial applications.

• Ultimate Vacuum: Achieving an ultimate vacuum of 0.3 microns without using gas ballast, or 6 microns with gas ballast, this pump offers a highly adjustable vacuum range for different laboratory processes.

• Gas Ballast System: The multi-level gas ballast allows for controlled vacuum reduction by introducing dry air into the pump. This feature helps to prevent moisture, solvents, and other contaminants from accumulating in the pump and reduces the chances of damage, ensuring longer-lasting performance.

• Quiet Operation: Despite its high performance, the pump operates quietly with a noise level of less than 58 dB, reducing disruption in the lab environment.

• Increased Efficiency and Safety: The pump comes with a high-capacity exhaust oil mist filter, which reduces airborne oil mist while making the pump quieter and more efficient. The filter also helps to return trapped oil back to the pump, conserving oil and enhancing the overall system’s performance.

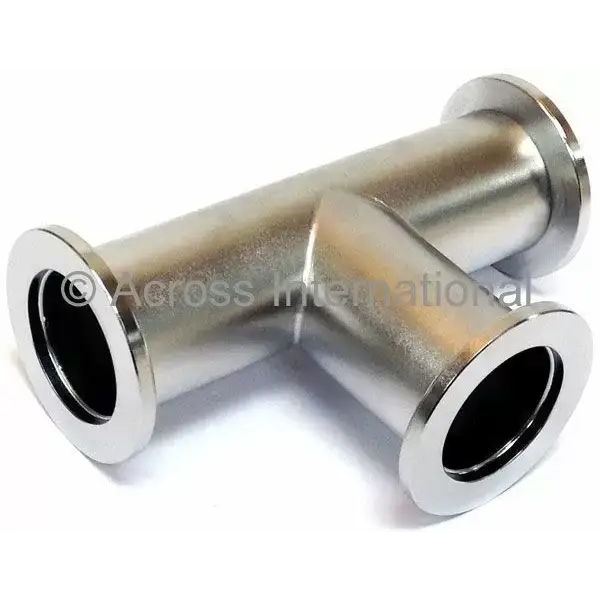

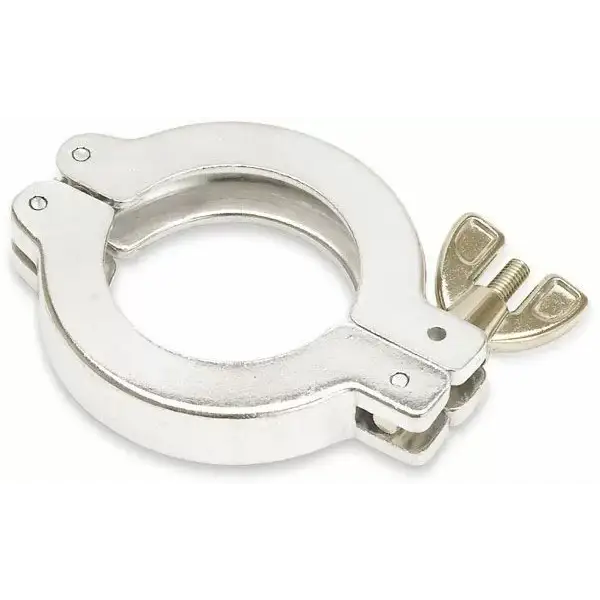

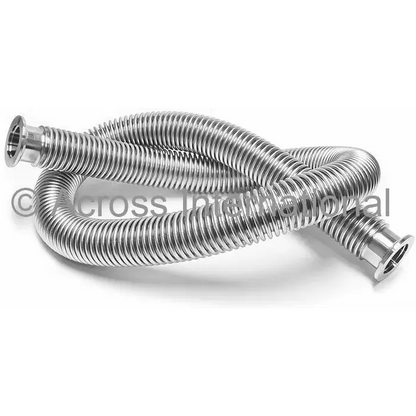

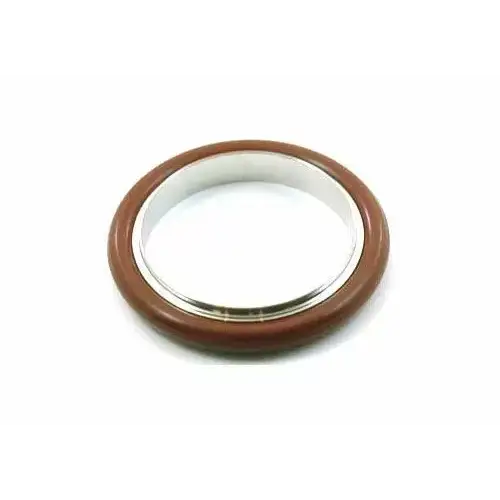

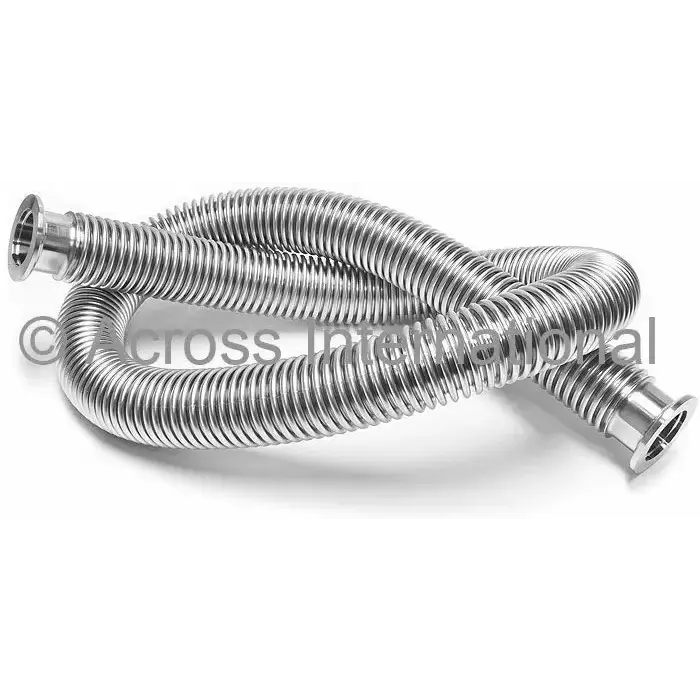

• Included Accessories: The pump comes with a full set of accessories, including KF25 flexible stainless steel bellow (3.3 ft), clamps, and a centering ring set, adding over $469 in value to the purchase. These components facilitate easy integration into your system and ensure efficient operation.

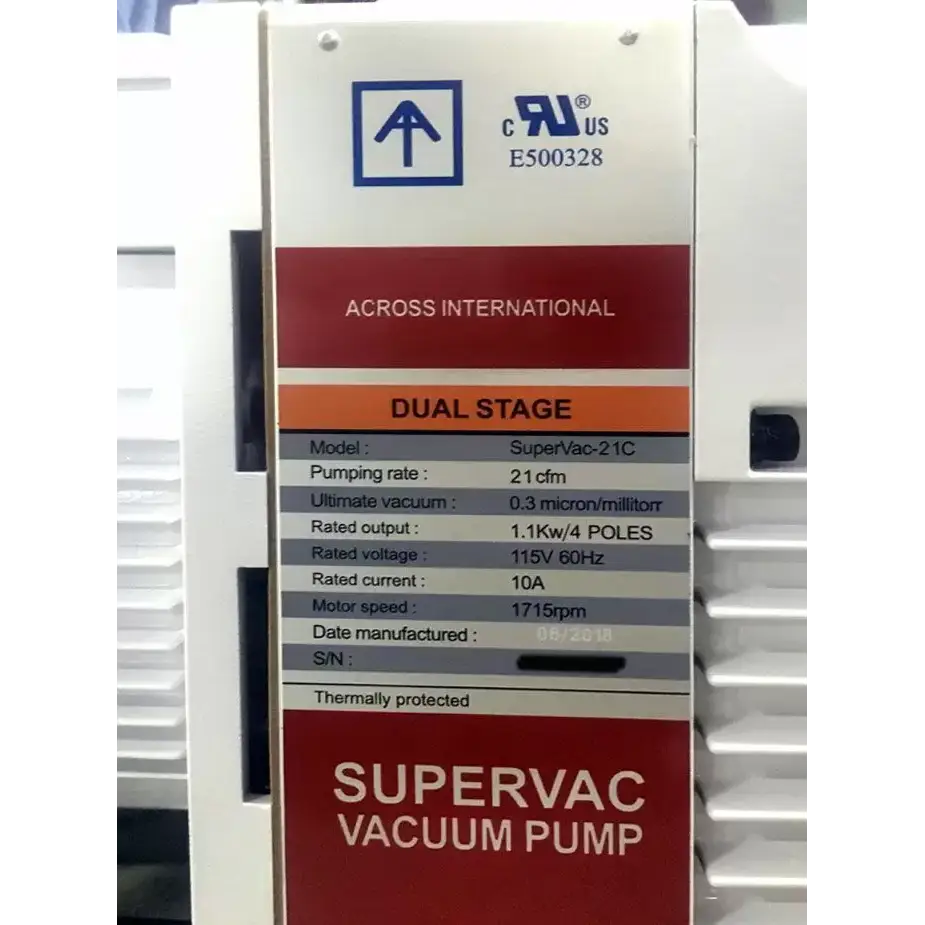

Specifications:

• Electrical Requirements: 115V 60Hz or 230V 50/60Hz, single-phase, 1,100 watts
• Pumping Rate: 21 cfm
• Ultimate Vacuum: 0.3 micron (without gas ballast), 6 micron (with gas ballast)
• Inlet/Outlet Connection: KF25/NW25 flange
• Oil Volume: 2 liters / 2.1 quarts
• Motor Speed: 1,715 rpm
• Working Temperature: 5°C to 40°C
• Noise Level: < 58 dB
• Recommended Oil: Ultra-grade 19
• Warranty: Two years
• Dimensions: 21" x 7.5" x 12" (Unit), 37" x 10" x 17" (Shipping)
• Weight: 80 lbs (Unit), 98 lbs (Shipping)

Additional Benefits:

• Enhanced Safety and Efficiency: The exhaust oil mist filter helps reduce contamination in the lab and makes the pump run more quietly, improving the safety and comfort of the workspace.
• Highly Reliable for Long-Term Use: The Ai SuperVac pump is engineered for continuous operation, making it perfect for labs with high-demand vacuum processes.
• Wide Range of Applications: Suitable for rotary evaporators, distillation, solvent recovery systems, and other applications that require a reliable vacuum source.

Conclusion:

The Ai SuperVac 21 cfm Corrosion-Resistant 2-Stage Pump is a robust and highly efficient vacuum pump, ideal for labs and industrial applications that require continuous and reliable performance. With its UL certification (for the 115V model), corrosion-resistant design, powerful pumping capacity, and quiet operation, this pump offers excellent value for high-performance vacuum systems. The included accessories make it even more convenient and cost-effective for immediate integration into your operations.
