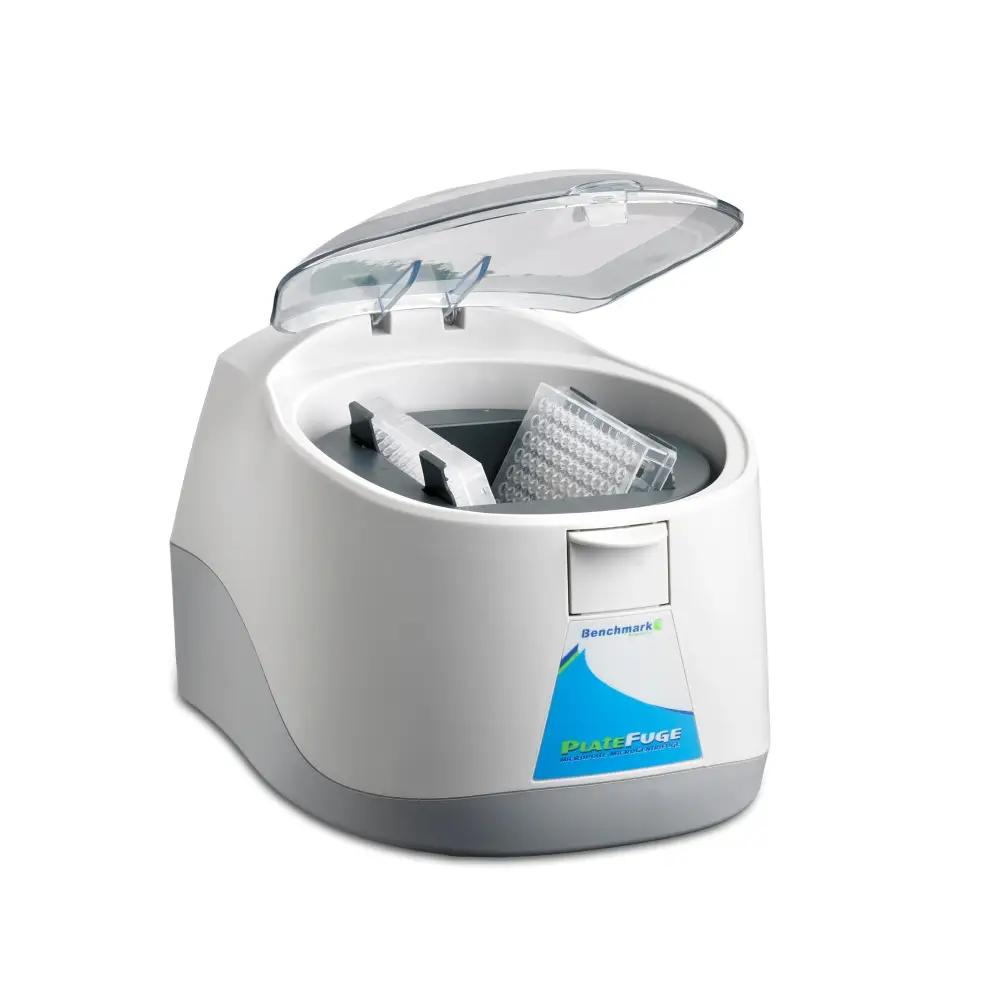

PlateFuge™ MicroPlate MicroCentrifuge

PlateFuge™ Microcentrifuge

The PlateFuge™ Microcentrifuge by Benchmark is the perfect solution for laboratories needing to centrifuge PCR plates quickly and efficiently. Its compact design, combined with a unique swing-out rotor, allows for effective sample concentration and improved yields, making it an ideal tool for PCR preparations.

Key Features:

• Compact and Efficient Design: At only 9 x 10 inches, the PlateFuge™ is 50% smaller than traditional centrifuges, making it a space-saving choice for labs with limited bench space. Despite its compact size, it provides full functionality for PCR plates.
• Unique Rotor Design: The patented swing-out rotor design securely holds up to 2 PCR microplates at a 75° angle, ensuring all liquid samples move to the bottom of the wells for optimal sample collection. It accepts most common types of PCR plates, including skirted, semi-skirted, non-skirted, and most microtiter plates.
• Fast and Effective Operation: The centrifuge quickly accelerates to speeds of up to 2,500 rpm / 600 xg, and it spins down samples in less than 20 seconds. The rotor quickly swings the plates into horizontal position, concentrating droplets into the bottom of the wells.
• Automatic Stopping System: Once the run is complete, the centrifuge automatically slows down, and the rotor comes to a quick, smooth stop in just 4 seconds. Plates can then be easily removed from the rotor without any mess or spillage.
• Safety and Convenience: The PlateFuge™ features an automatic lid lock that ensures the lid cannot be opened while the rotor is spinning, ensuring operator safety during operation.

Technical Specifications:

• Speed: Up to 2,500 rpm / 600 xg
• Capacity: 2 PCR microplates, 2 microtiter plates
• Deceleration Time: 4 seconds
• Dimensions: 9.2 x 10.2 x 7.75 in. (W x D x H)
• Weight: 9 lbs / 4.1 kg
• Electrical: 115V, 60Hz or 230V, 50Hz

Ordering Information:

• C2000: PlateFuge™ Microcentrifuge with rotor and plate carriers (115V)
• C2000-A02: Tube adapter, holds 96 x 0.2ml tubes or 8 and 12 position PCR strips
• C2000-DWMP: Optional rotor with carriers for deep well plates (5000 rpm max capacity)

The PlateFuge™ is the ideal microcentrifuge for labs focusing on PCR applications, ensuring all samples are effectively concentrated in less time. With its space-saving design and versatile rotor options, the PlateFuge™ helps maximize laboratory efficiency while providing reliable results.
