15mm Diameter ID Dry Pressing Die Set

15mm Hardened Steel Dry Pressing Die Set

Achieve precision pellet production with this 15mm diameter dry pressing die set, designed for durability and accuracy in industrial and laboratory applications.

Key Features:

• Accurate Dimensions: Provides consistent pellet sizes with a tight tolerance of 0.01-0.02 mm.
• Robust Construction: Crafted from W18Cr4V and Cr12 hardened carbon tool steel for long-lasting performance.
• High Pressure Capacity: Supports up to 20 metric tons for demanding pressing needs.
• Comprehensive Kit: Includes all essential components for seamless operation.

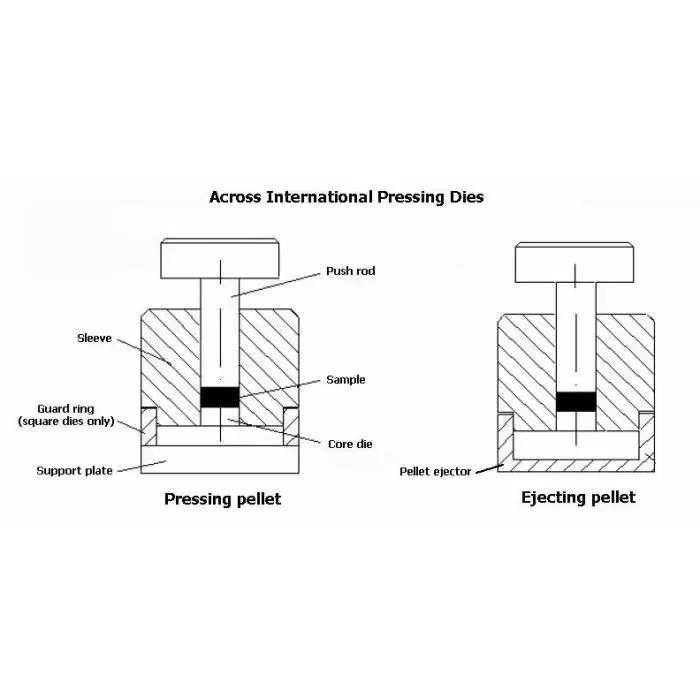

Die Set Includes:

• Two polished 15mm ID core dies
• One steel sleeve
• One steel support plate
• One push rod
• One pellet ejector

Specifications:

• Maximum Pressure: 20 metric tons
• Inner Diameter (ID): 15 mm
• Assembled Height (without sample): 90 mm
• Sleeve Height: 45 mm
• Outer Diameter (sleeve): 39 mm
• Material:
  • Core die & push rod: W18Cr4V hardened carbon tool steel
  • Sleeve, ejector & support: Cr12 hardened carbon tool steel

Usage Guidelines:

• Use protective goggles during operation for safety.
• Clean components with absolute ethyl alcohol after use and store them in a dry box with silica gel to prevent rust.
• Do not fill the die more than 1/3 of its sleeve height with the sample.
• Avoid exceeding the maximum pressure of 20 metric tons to ensure the die's longevity.

Conclusion:
This 15mm hardened steel dry pressing die set delivers reliable performance and precision, making it an ideal choice for producing high-quality pellets with minimal effort.
