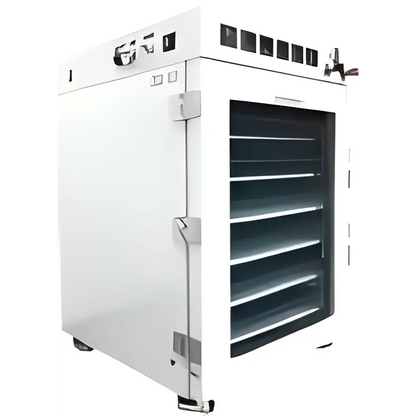

316L SST 100C UL Certified 16 CF Vacuum Oven w/ 6 Shelves & SST Tubing

The 316L SST Optional 100°C UL Certified 16 CF Vacuum Oven is engineered to meet the demanding needs of laboratories and industrial applications. With a spacious 16 cubic foot capacity and robust stainless steel construction, this vacuum oven offers unparalleled performance in drying, curing, and degassing processes. UL certified for safety and built to provide long-term reliability, this model ensures optimal temperature control, rapid vacuum purging, and superior process results.

Key Features:

• UL Certified for Safety: Meets UL 61010-1 standards for superior equipment safety and longevity, offering peace of mind during operation.
• Massive 16-Cubic Foot Stainless Steel Chamber: Spacious and easy-to-clean, the durable stainless steel interior is designed for industrial-scale operations, ensuring excellent durability and minimal maintenance.
• Six Heated Aluminum Shelves: Each shelf is equipped with its own heater, in-shelf temperature sensor, and independent temperature controller, ensuring uniform heating with high thermal efficiency.
• Advanced Vacuum System: Features a vacuum level better than 500 microns, ideal for applications requiring deep vacuum environments. Perfect for processes like degassing, purging, and drying heat-sensitive materials.
• Temperature Control with Low Proportional Gain: The 4th-generation microcomputer PID controller, coupled with a low proportional gain, provides precise temperature control with a uniformity of ±5% of setpoint. The adjustable temperature range goes from ambient to 100°C (212°F).
• Fast Vacuum Purging and Release: Equipped with 2.5x larger internal stainless steel tubing, this system delivers faster vacuum purging and release, improving processing efficiency.
• Secondary Over-Temp Protection: A built-in over-temp dial offers an additional layer of protection, ensuring safe operation.
• LED Observation Window: The dual-layer, 3/4" tempered glass safety window allows for easy monitoring of the chamber’s interior, while built-in white LED lights illuminate the oven.
• Easy Maintenance & Durability: The vacuum oven features stainless steel internal tubing and compression fittings, which maintain vacuum integrity up to 10 times longer than traditional rubber tubing, offering a sanitary and low-maintenance environment.

Technical Specifications:

• Chamber Dimensions (WxDxH): 25.6 x 30 x 35.5 inches (16 cubic feet)
• Heating System: 6 aluminum shelves, each with 250 watts for optimal, energy-efficient heating.
• Temperature Range: Ambient to 100°C (212°F)
• Uniformity: ±5% of setpoint
• Vacuum: Ultimate vacuum level better than 500 microns; Mechanical vacuum gauge range: 0 to 30 inHg
• Vacuum Port: KF25 flange x 1; Vent Port: KF25 flange x 1
• Controller: Microcomputer PID with LCD display
• Weight: 710 lbs (unit), 1,114 lbs (shipping)
• Dimensions (WxDxH): 33 x 37 x 52 inches (unit), 46 x 39 x 60 inches (shipping)
• Shelves: 6 non-removable aluminum shelves (25 x 29.25 inches), each with a max load capacity of 20 lbs

Additional Features:

• Oil-Filled Mechanical Vacuum Gauge: Ensures stable and accurate vacuum readings for reliable process monitoring.
• Secondary Over-Temp Dial: Provides additional over-temperature protection for added safety during operation.
• Vacuum and Vent Ports with Needle Valves: Allow for fine-tuning of vacuum and vent rates to suit specific processes.
• Stackable Shelves Option: Optional stackable aluminum shelves allow for increased workspace with a total surface area of 60 square feet.
• Built-In Swivel Casters with Leveling Feet: Easy mobility and precise leveling for optimal setup.
• Quick Delivery: Shipped from AI’s New Jersey or Nevada locations for fast delivery.

Compliance & Warranty:

• Certified to UL, CSA, ISO, and CE Standards: Ensures safety, reliability, and compliance with industry standards.
• Warranty: 2-year warranty and lifetime US-based parts and service support. Guaranteed US-based phone and email assistance from an AI support engineer within 30 minutes.

Conclusion:

The 316L SST Optional 100°C UL Certified 16 CF Vacuum Oven is the ideal solution for industrial and laboratory applications requiring efficient, precise, and safe vacuum drying, curing, and degassing. With cutting-edge technology, superior build quality, and comprehensive safety features, this vacuum oven ensures fast, reliable results in even the most demanding environments. Backed by a 2-year warranty and lifetime support, it’s an essential tool for high-performance processing.
