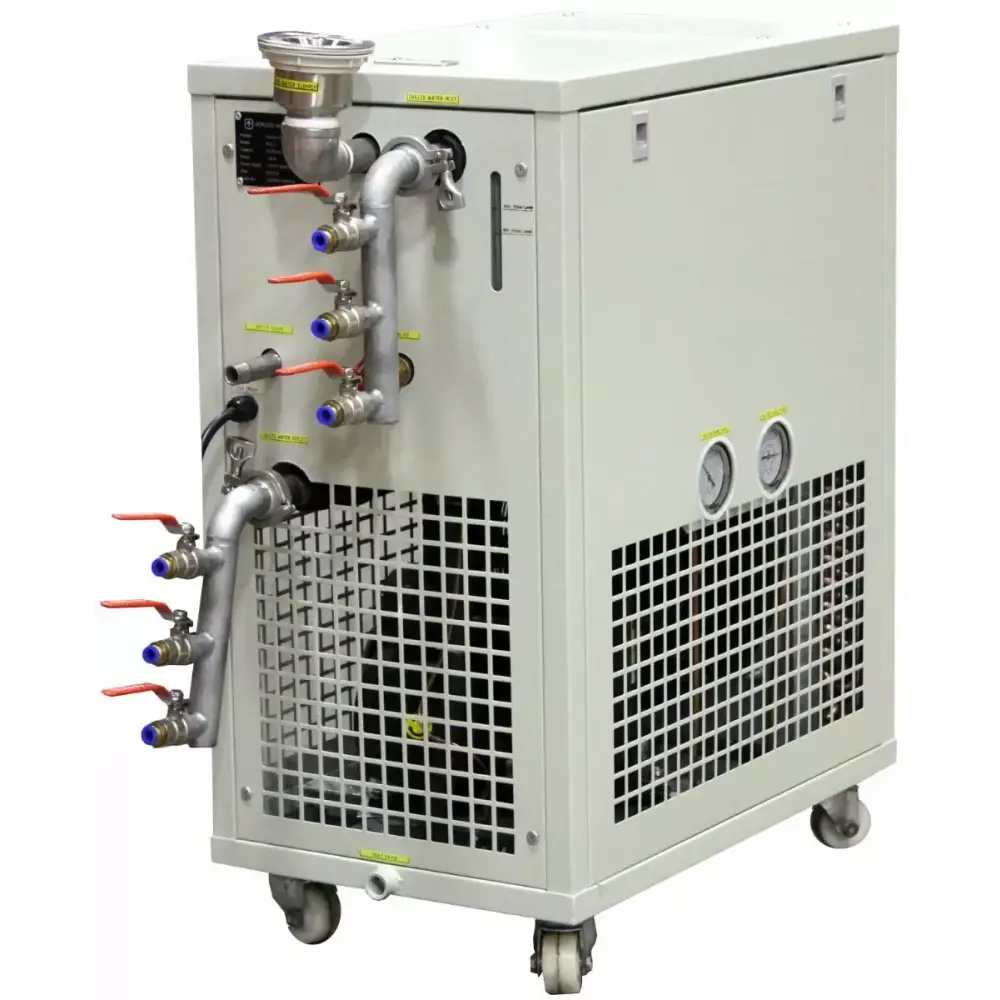

Ai 10°C to 25°C 33L/Min 17L Capacity Recirculating Chiller

The Ai WAC-1 is a high-performance, digitally controlled recirculating water chiller designed for use with induction heating systems, including the Ai IH series induction heaters (e.g., 4kW, 6.6kW, 15kW, and 25kW models). This chiller offers reliable cooling with a 33L/min flow rate and a 17L reservoir capacity, ensuring efficient heat dissipation during high-intensity processes.

Key Features:

• Built-in Swivel Casters: Makes the chiller highly portable and easy to position in various work environments.

• Stainless Steel Tank & Water Pump: Ensures durability and rust-free operation, providing a long service life for demanding cooling applications.

• Dual Water Manifolds: Includes two sets of water manifolds for immediate use, simplifying the setup process and making it ready for integration into your system.

• High Cooling Capacity:

  • At 10°C, the chiller offers a cooling capacity of 2300W.
  • At 15°C, the cooling capacity increases to 2750W.
  • The nominal cooling capacity is 1935 kcal/h when operating within specific conditions (inlet chilled fluid at 12°C, outlet chilled fluid at 7°C, cooling air inlet at 30°C, and cooling air outlet at 35°C).

• Temperature Control Accuracy: Maintains a temperature accuracy of ±2°C, ensuring precise cooling for sensitive equipment.

• Powerful Compressor:

  • Panasonic Compressor (UL listed), capable of handling high cooling demands.
  • Refrigerant: Uses R410A, a common refrigerant with high efficiency.

• Efficient Water Pump:

  • LX water pump provides a flow rate of 528 gallons per hour with a maximum pressure of 10 bar. This ensures a steady and strong flow of chilled fluid for optimal cooling.

• Cooling Fan:

  • Equipped with a Kunli fan, offering a flow rate of 70,000 cubic feet per hour to efficiently dissipate heat from the chiller.

• Safety Features: The chiller is protected against overcurrent and compressor thermal issues, ensuring safe and reliable operation.

• Environmentally Friendly: Distilled water is the recommended coolant, making it a safe, non-toxic option.

• CE Compliant: Meets CE standards for electrical and mechanical safety, ensuring compliance with European regulations.

Specifications:

• Model: WAC-1
• Input Power: 110VAC 60Hz single-phase, 1460 watts
• Nominal Cooling Capacity:
  • 10°C: 2300W
  • 15°C: 2750W
  • Nominal: 1935 kcal/h
• Compressor:
  • Make: Panasonic, UL listed
  • Refrigerant: R410A (800g)
  • Power: 110VAC 60Hz 1-Phase, LRA42
  • Number of Compressors: 1
• Water Pump:
  • Make: LX
  • Power: 370W, 3.7A, 3450rpm
  • Flow Rate: 528 gallons per hour
  • Max Pressure: 10 bar
• Reservoir Volume: 4.5 gallons
• Cooling Fan:
  • Make: Kunli
  • Power: 155W, 1.35A, 2700rpm
  • Flow Rate: 70,000 cu ft/hr
• Temperature Accuracy: ±2°C
• Coolant: Distilled water
• Water Inlet & Outlet: 1.5" tri clamp flange
• Manifold:
  • Inlet: 1.5" tri clamp flange with silicon gasket and clamp
  • Outlet: 8mm quick connect with ball valve
• Unit Weight: 200 lbs
• Shipping Weight: 260 lbs
• Unit Dimensions: 29 x 17 x 35" (DxWxH)
• Shipping Dimensions: 36 x 21 x 42" (DxWxH)
• Safety: Over current and compressor thermal protection
• Working Environment:
  • Chilled fluid temperature range: 5°C to 35°C
  • Chilled fluid temperature difference between inlet and outlet: 3°C to 8°C
  • Ideal ambient temperature: ≤35°C
• Compatible Ai Induction Heaters:
  • High frequency: 4kW, 6.6kW
  • Mid frequency: 15kW, 25kW
  • Low frequency: 15kW
• Compliance: CE compliant
• Warranty: One year

Conclusion:

The Ai WAC-1 recirculating chiller is an essential cooling solution for Ai’s induction heaters and other high-performance systems requiring precise temperature control. With a powerful compressor, efficient water pump, and accurate temperature control, it provides optimal cooling to ensure that your equipment operates safely and efficiently. The chiller’s compact design and built-in swivel casters offer easy portability, while the stainless steel tank and pump provide long-lasting durability in demanding environments. Whether for laboratory or industrial use, the WAC-1 delivers reliable, consistent performance with excellent cooling capacity.
