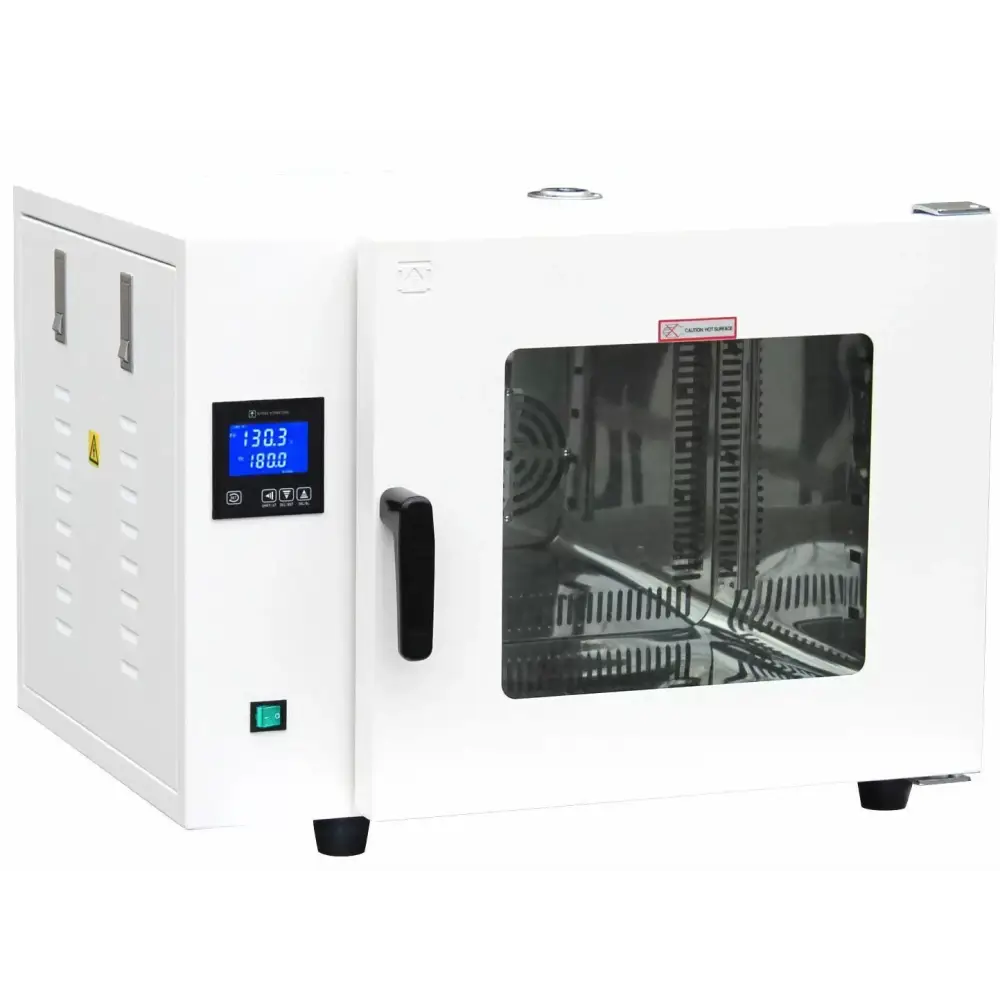

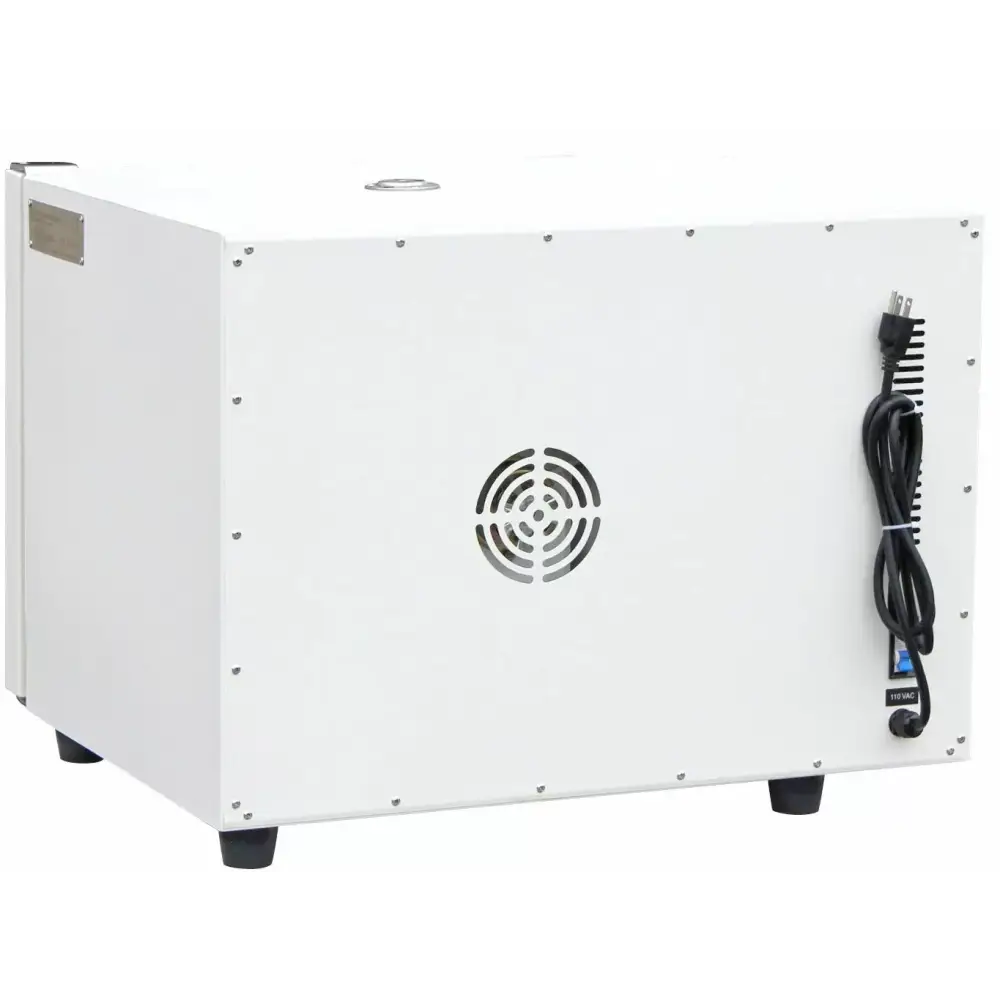

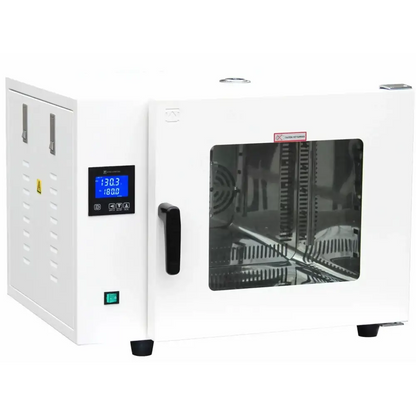

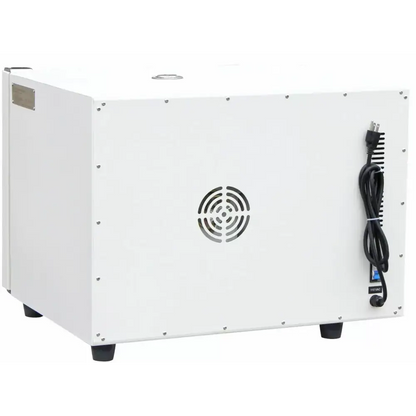

Ai 200°C 1.9 Cu Ft 5 Shelves Max Forced Air Drying Oven 110V with 316L SST Chamber

The Ai 1.9 Cu Ft Forced Air Drying Oven with a 316L stainless steel chamber is engineered to provide precision, reliability, and uniform heating for a range of laboratory and medical applications. Featuring advanced microcontroller-based temperature control and forced-air circulation, this oven ensures consistent results and is especially useful for drying and sterilizing medical devices.

Key Features

1. Precision & Uniformity

   • Microcontroller-based digital temperature control ensures high precision and uniform temperature distribution.
   • Memory function retains your settings during power interruptions and resumes previous operations automatically when power is restored.
   • Temperature alarm can be set to trigger if the temperature deviates from your desired range, ensuring safe and controlled operation.

2. Corrosion-Resistant & Durable Construction

   • The 316L stainless steel chamber provides excellent resistance to corrosion and is durable for high-demand environments.

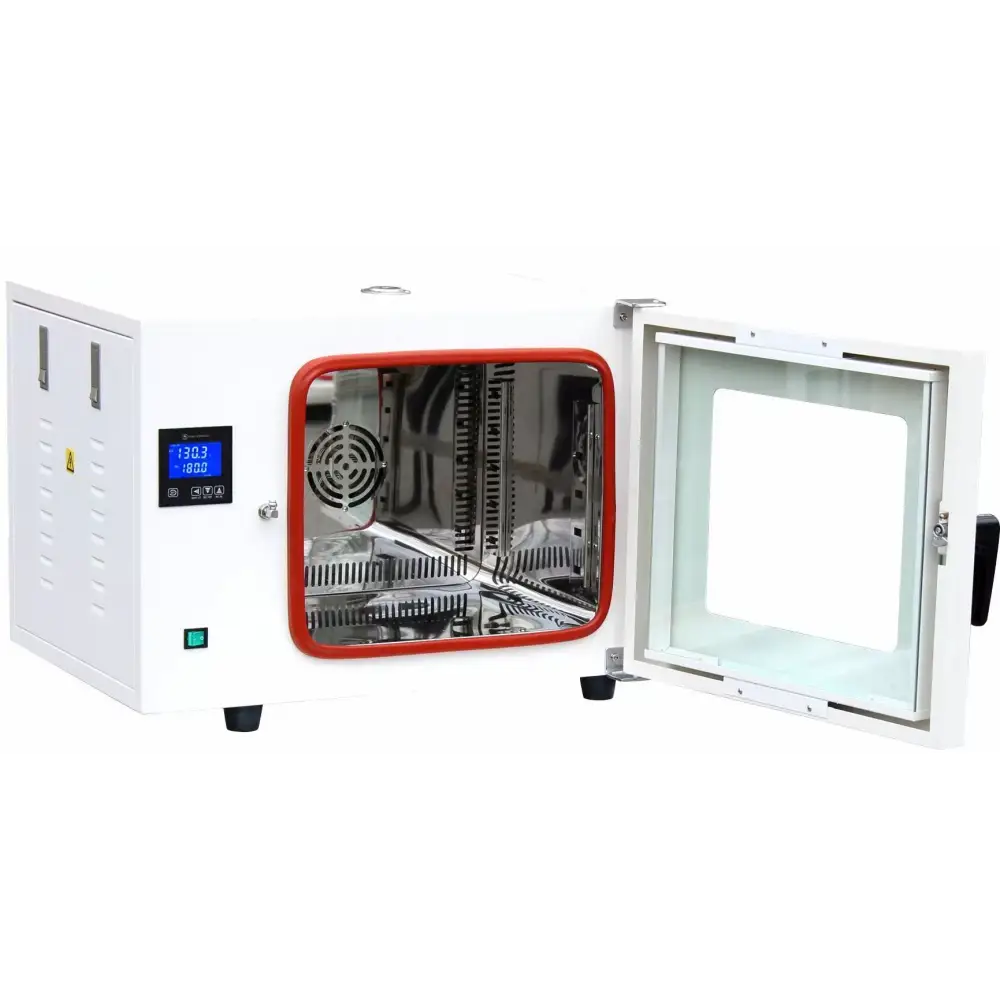

   • Toughened double-glazing observation window offers a clear view of the chamber without compromising safety or temperature integrity.

3. Forced Air Circulation for Even Heating

   • Forced-air circulation ensures uniform heating and dependable drying, essential for even heat distribution across samples.
   • Gentle downward airflow along chamber walls minimizes sample disruption, maintaining the integrity of sensitive materials during the drying process.

4. Adjustable Moisture Escape Port

   • The oven is equipped with an adjustable 2" diameter moisture escape port located at the top of the oven, facilitating effective moisture removal during drying.

5. Safety Features

   • Overheat protection automatically cuts off power if the temperature exceeds safe levels or if a sensor failure occurs, ensuring safe operation.
   • The access port (optional 2" diameter with cover) allows for convenient external monitoring or additional connections without compromising the oven's interior conditions.

Specifications

• Electrical Requirements: 110VAC, 60Hz, single-phase, 900 watts
• Usable Chamber Dimensions: 16 x 13.5 x 13.75 inches (WxDxH)
• Unit Dimensions: 27.5 x 22 x 20.75 inches (WxDxH)
• Shipping Dimensions: 32 x 28 x 27 inches (WxDxH)
• Temperature Range: Ambient to 200°C
• Timer Range: 1 to 9999 minutes
• Racks Included: 2 (additional racks available at extra cost)
• Maximum Rack Capacity: 5 (with 2-inch spacing between each rack)
• Moisture Escape Port: 2" diameter x 1 (adjustable, located at the top of the oven)
• Access Port: 2" diameter with covers (optional)
• Unit Weight: 95 lbs
• Shipping Weight: 150 lbs
• Certification:
  • ETL tested to UL and CSA standards (optional)
  • CE certified

Warranty: One year

Applications
The Ai 1.9 Cu Ft Forced Air Drying Oven is ideal for a variety of laboratory and industrial applications, particularly for medical device drying and sterilization, as well as material testing and other processes requiring precise temperature control.

Conclusion
This 1.9 cu ft forced air drying oven is an excellent choice for laboratories needing reliable and uniform drying. Its 316L stainless steel chamber, precise temperature control, and advanced safety features ensure consistent results with minimal effort, making it a valuable tool for drying sensitive materials.
