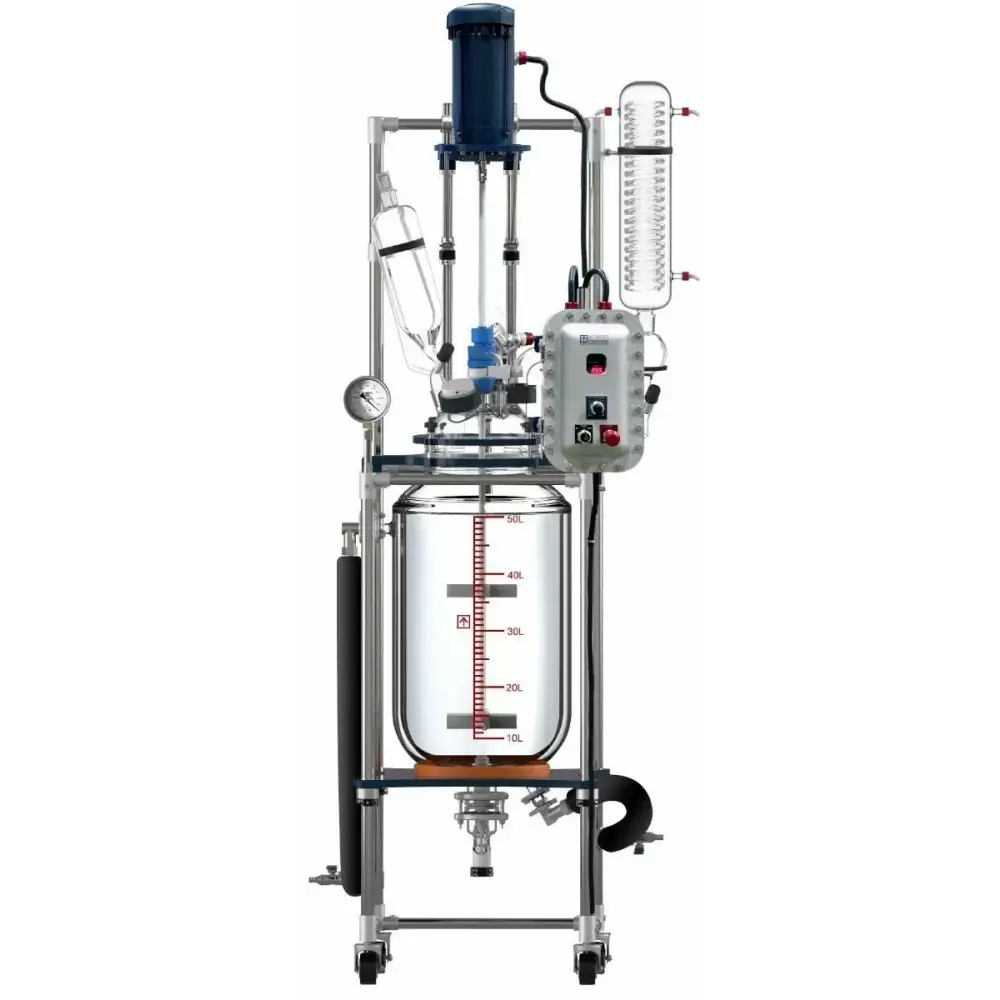

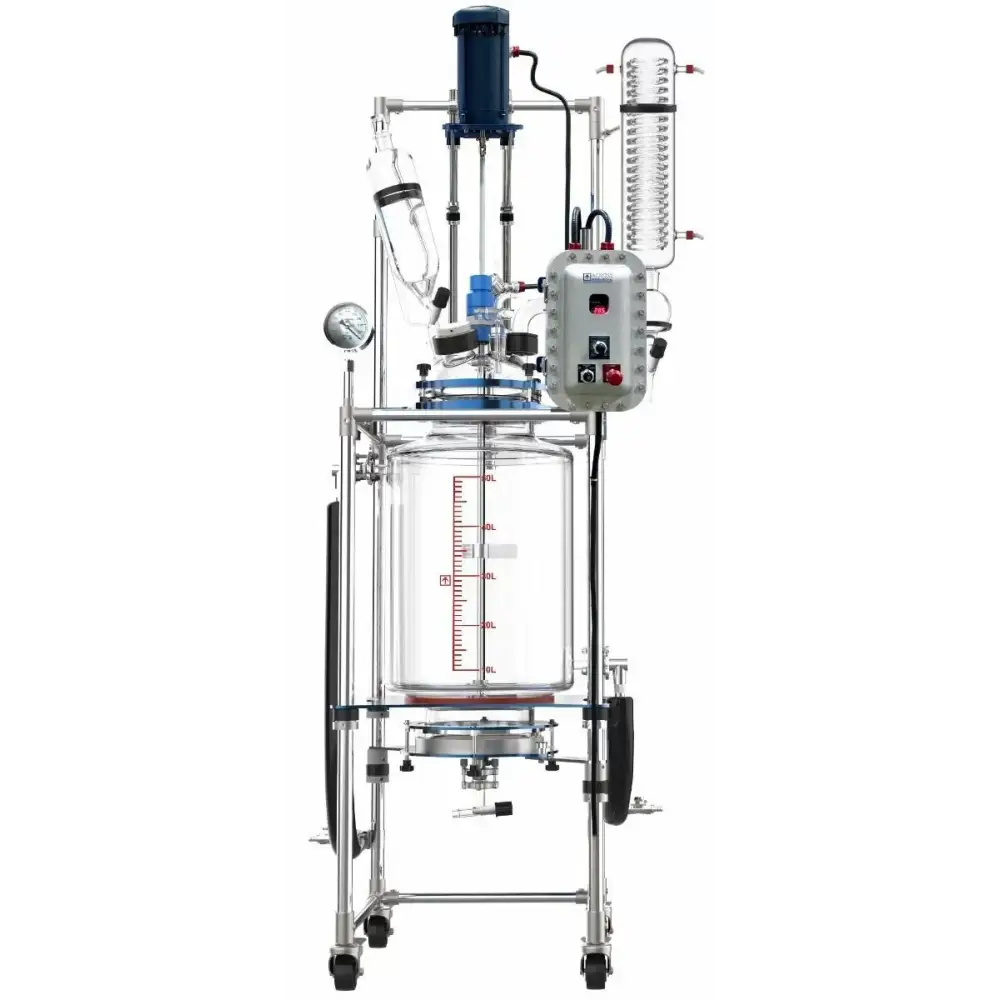

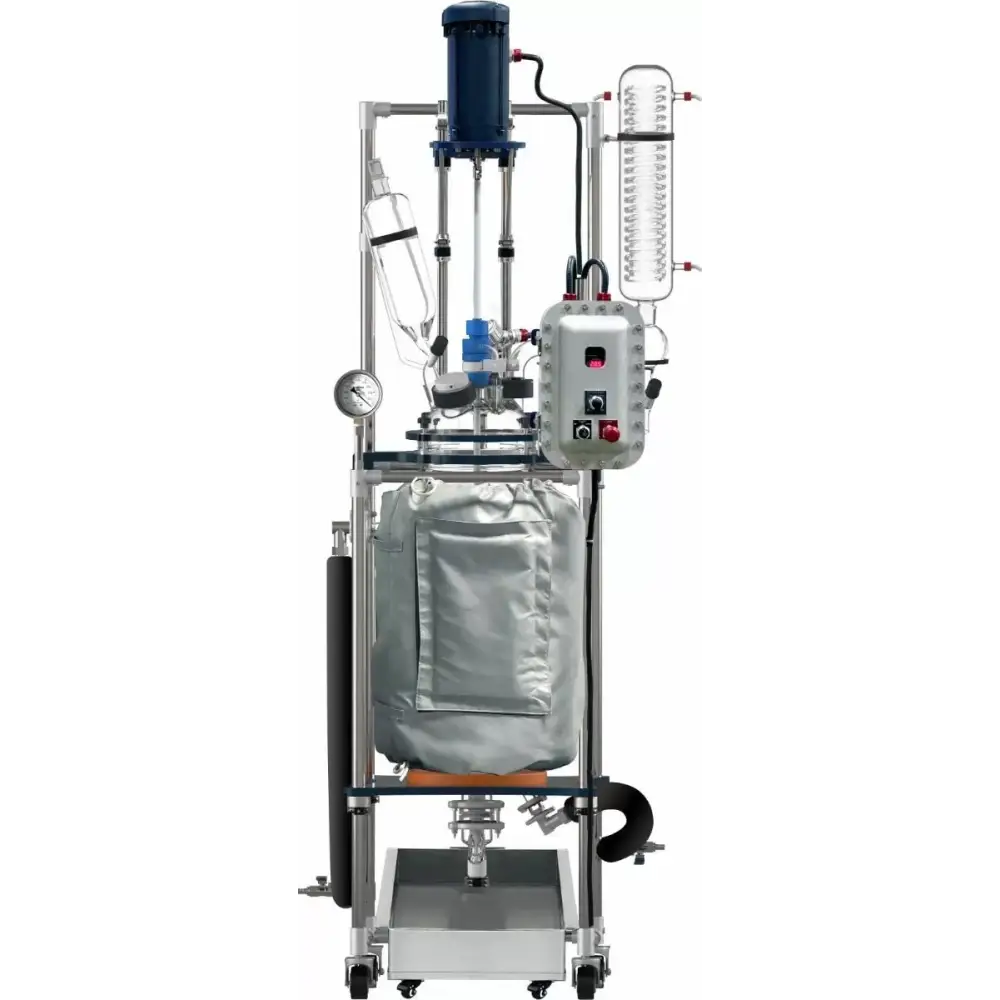

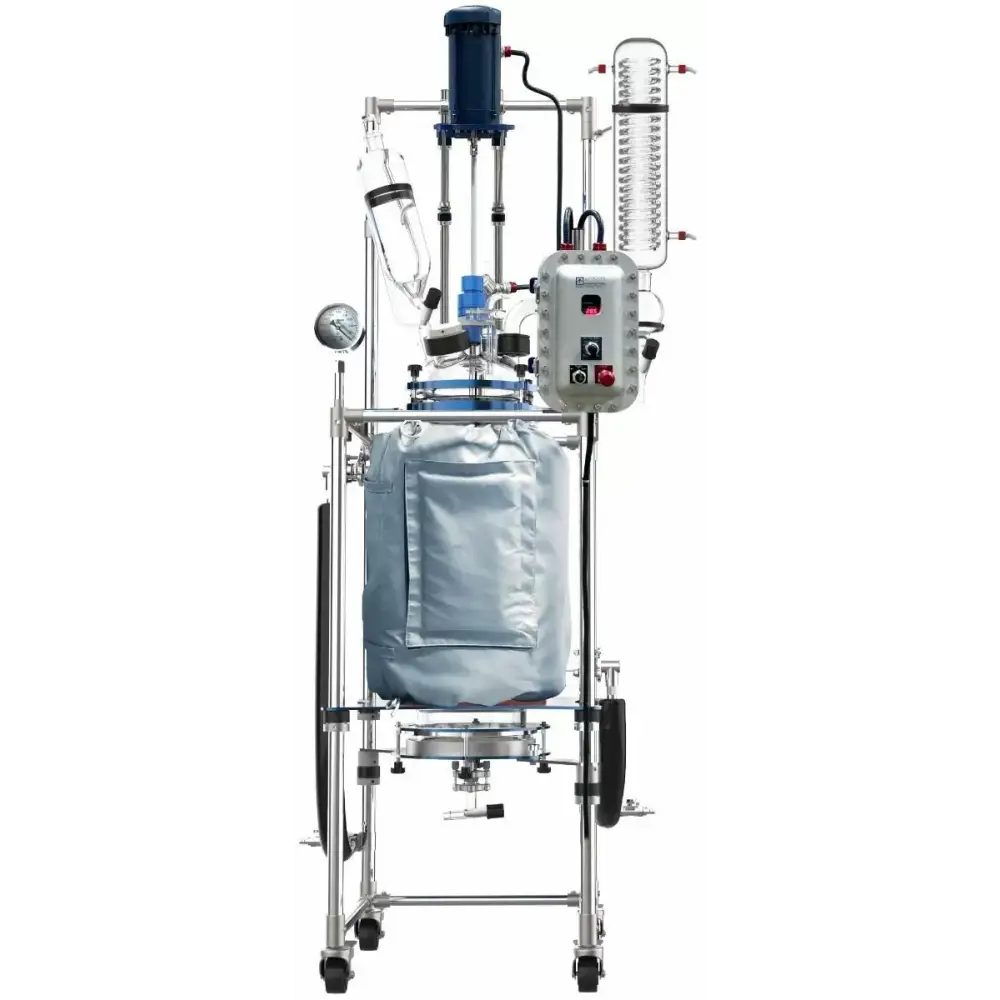

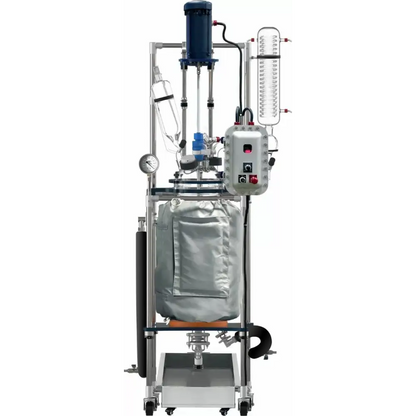

Ai 50L Dual Jacket Reactor w/ Explosion-Proof Motor & Controller 220V

The Ai 50L Jacketed Glass Reactor with Explosion-Proof Motor & Controller is designed to meet the highest safety standards for handling volatile materials in environments where the risk of ignition is a concern. Ideal for chemical synthesis, research, and production applications requiring precise control over temperature, vacuum, and agitation, this reactor combines cutting-edge technology with superior safety features. Equipped with an explosion-proof motor and controller, this system provides a reliable solution for working with flammable solvents such as ethanol, methanol, acetone, and more.

Key Features:

Explosion-Proof Design for Maximum Safety:

• The explosion-proof motor (3/4 HP, 560 watts) and controller are specifically designed for hazardous environments. These components are housed in rugged enclosures capable of withstanding internal explosions and preventing ignition of surrounding gases or vapors, meeting C1D1 safety standards.
• The explosion-proof design prevents sparks or internal explosions from igniting surrounding flammable materials, ensuring safer operation in environments with ethanol, pentane, methanol, and other volatile substances.

Advanced Temperature Control and Heating System:

• The reactor features a wide temperature range from -80°C to +200°C (-112°F to +400°F), allowing for precise temperature control for various chemical reactions.
• Dual-jacketed vessel design, with a 16L fluid jacket, enables excellent temperature stability, enhanced control over the process, and protection from temperature fluctuations, contributing to energy savings and extended chiller life.

Heavy-Duty Construction:

• The vessel, condenser, feeding funnel, and receiving flask are all made of high-quality borosilicate glass (3.3), known for its heat resistance, corrosion resistance, and durability. This ensures long-lasting performance and reliability even under demanding conditions.
• The agitator is made of 304 stainless steel with a PTFE coating, ensuring smooth and consistent mixing, even in highly viscous materials.

Enhanced Operational Safety:

• The mechanical vacuum gauge helps to monitor vacuum levels, ensuring optimal reaction conditions with a vacuum level down to 20 torr.
• The built-in condenser offers effective material recovery and prevents material loss during processing.
• PTFE gaskets ensure excellent sealing, preventing leaks and maintaining a safe environment.

User-Friendly Design:

• Adjustable stirring speeds provide the flexibility to adjust torque or speed based on your material’s requirements.
• Patented PTFE stirring rod bearing ensures quiet and reliable operation, reducing wear and tear over time.
• The reactor is supported by a heavy-duty stainless steel framework with lockable casters for easy mobility and stability.

Comprehensive Safety & Compliance:

• The reactor is ETL listed to UL and CSA standards (optional) and complies with CE regulations, providing peace of mind that it meets global safety and quality standards.
• Designed for use in a C1D1 environment, the reactor meets industry-leading safety criteria for working with flammable materials.

Warranty & Support:

• Backed by a one-year warranty, with lifetime support from Ai, ensuring long-term reliability and exceptional customer service.
• US-based parts and service support are available, offering peace of mind for maintenance and repairs.

Specifications:

• Model: R50ex
• Electrical Requirements: 220V 50/60Hz single-phase
• Explosion-Proof Parts: Made in the USA, including explosion-proof motor (3/4 HP, 560W), controller, and enclosure
• Volume: 50L main vessel (13 gallons), 16L fluid jacket (4.2 gallons)
• Material: High borosilicate glass 3.3 for the vessel, condenser, funnel, and flask; 304 stainless steel with PTFE coating for agitator
• Temperature Range: -80°C to +200°C (-112°F to +400°F)
• Vacuum & Pressure: Ultimate vacuum level of 20 torr; maximum fluid jacket pressure of 4.4 psi (0.03 MPa)
• Dimensions (Unit): 26" x 33" x 85" (WxDxH)
• Shipping Dimensions: 27" x 80" x 32", Weight: 330 lbs
• Compliance: ETL listed to UL and CSA standards (optional), CE (optional)
• Warranty: One year

Conclusion:

The Ai 50L Jacketed Glass Reactor with Explosion-Proof Motor & Controller is an advanced, high-performance solution for safe and efficient chemical reactions, particularly in environments dealing with volatile and flammable substances. Its explosion-proof features, high-quality materials, and precise control systems make it an essential tool for laboratories and industrial applications that require optimal safety and performance. Backed by a one-year warranty and lifetime US-based support, this reactor ensures a reliable and secure reaction environment for your research and production needs.
