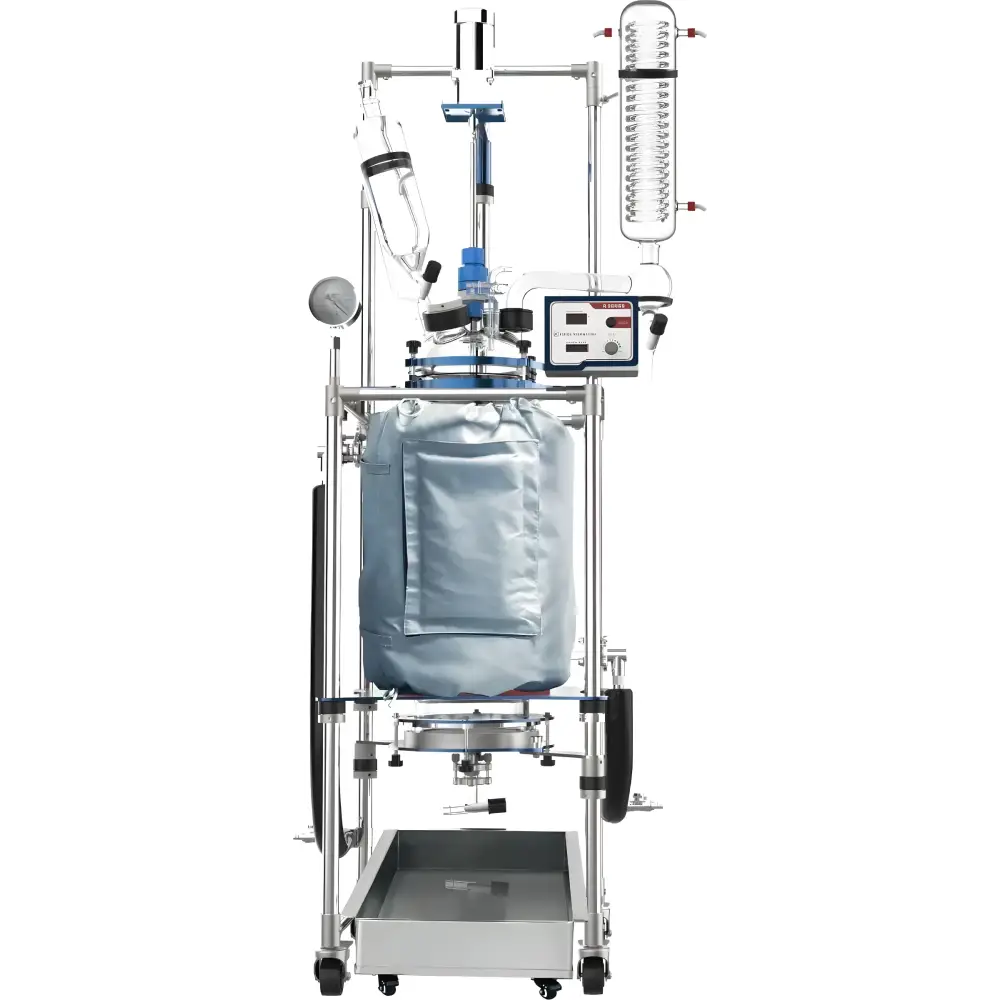

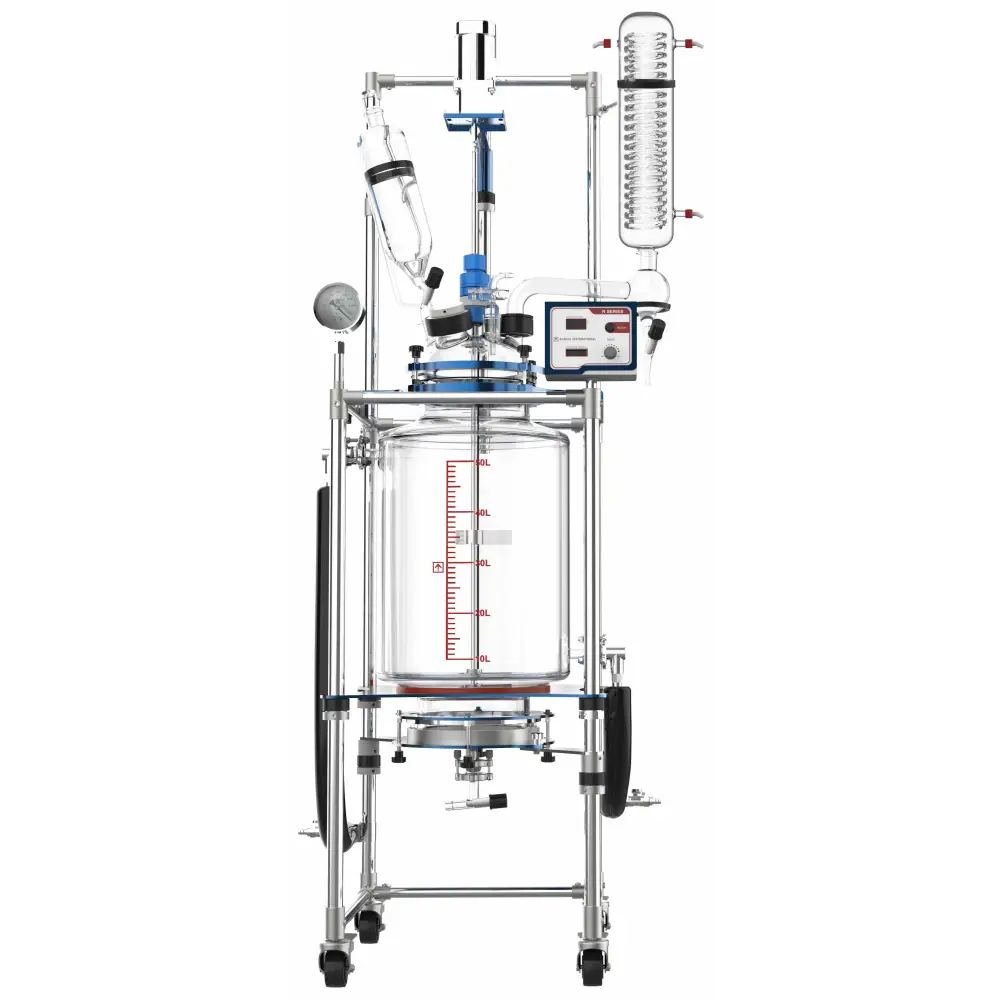

The Ai 50L single or dual jacketed filter glass reactors are designed to support multi-step synthetic reactions and filtrations in a controlled temperature and vacuum environment. These systems are ideal for industrial-scale synthesis, production, and peptide processes, offering efficiency and flexibility while minimizing material loss through a built-in filter base.
Key Features
-
Enhanced Functionality
- Designed for single or multi-step reactions and filtrations in the same vessel.
- Integrated filter base eliminates material transfers and significantly reduces material losses.
-
Detachable Modular Filter Assembly
- Enables easy cleaning and filter paper replacement.
-
Premium Materials
- High-grade borosilicate glass 3.3 ensures heat, cold, and corrosion resistance.
- PTFE components for long-term durability and solvent resistance.
-
Temperature and Vacuum Control
- Operates over a wide temperature range: -110°F to 400°F (-80°C to 200°C).
- Supports vacuum operation up to 20 torr.
-
Efficient Design
- Adjustable stirring speeds with patented PTFE rod bearing for quiet operation.
- Condenser with a large cooling surface ensures effective condensation.
-
User-Friendly Operation
- Digital speed and temperature displays.
- Heavy-duty stainless-steel framework with lockable casters for mobility and stability.
-
Safety Features
- ETL tested to UL and CSA standards, with optional CE certification.
- Precautions outlined to mitigate risks during operation.
-
One-Year Warranty
- Includes lifetime US-based parts, service, and support.
Specifications
Model |
R10 |
R20 |
R50 |
R100 |
Capacity |
10L (2.6 gal) |
20L (5.3 gal) |
50L (13 gal) |
100L (26 gal) |
Jacket Volume |
3L (0.8 gal) |
6L (1.6 gal) |
16L (4.2 gal) |
30L (8 gal) |
Filter Plate |
OD: 9 inches |
|
|
|
Temperature |
-110°F to 400°F |
|
|
|
Vacuum Level |
20 torr |
|
|
|
Drain Port ID |
14 mm |
|
|
|
Unit Dimensions |
26 x 33 x 85" |
|
|
|
Shipping Weight |
330 lbs |
|
|
|
The Ai 50L single or dual jacketed filter reactor is a versatile solution for laboratory and industrial processes, offering precision, durability, and ease of use.
