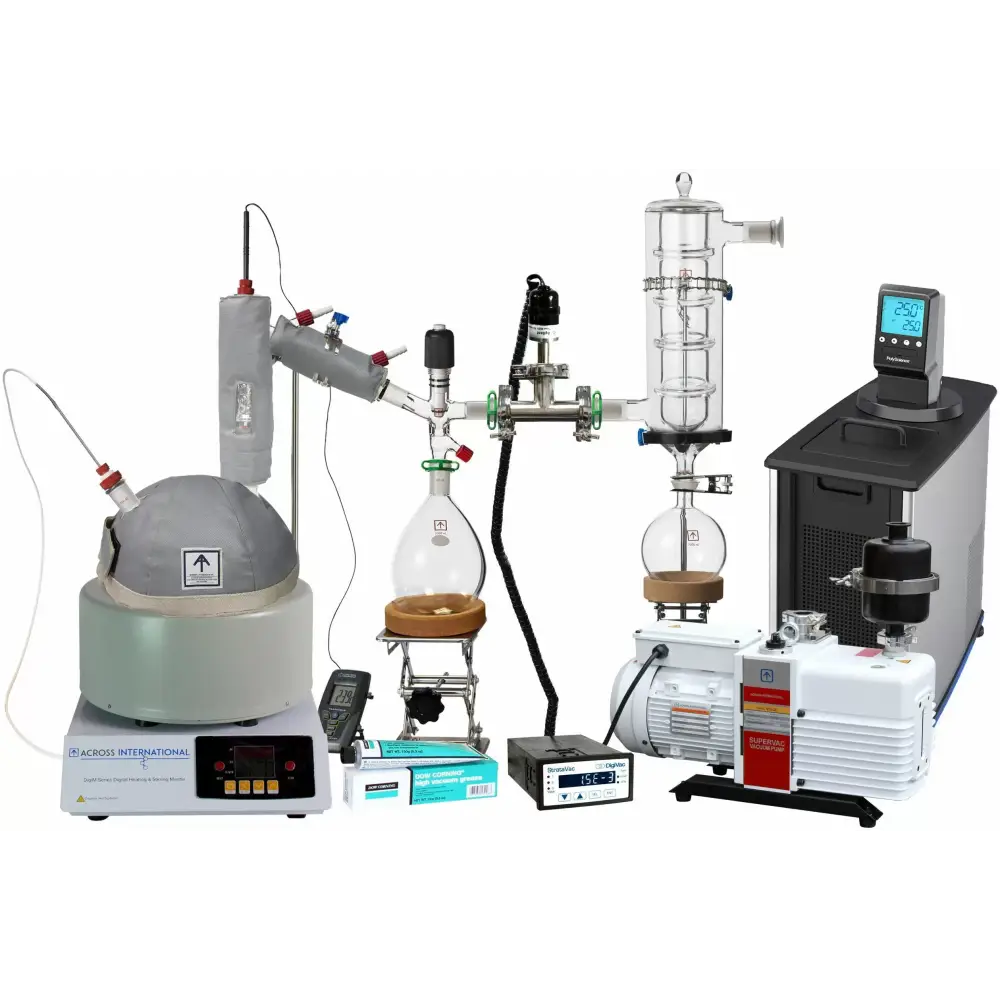

Ai 5L HeatedShield 400C Fabric Heating Top with Temp Controller

The Ai 5L HeatedShield Fabric Heating Top is a high-performance, safety-focused solution for distillation processes, designed to maintain optimal performance and protect both the equipment and operators during high-temperature applications.

Key Features

• High-Temperature Resilience:

  • Inner Beige Fabric: Rated for 1000°C constant temperature with 96%+ SiO₂ content.
  • Fiberglass Insulation: Rated for 800°C.
  • Outer Fabric: Light grey, rated for 280°C.

• Enhanced Safety and Performance:

  • Prevents vapor condensation and thermal strain between flask sections.
  • Shields against drafts, glass implosions, and falling objects during high-vacuum distillations.

• Precise Heating Control:

  • Equipped with the Ai Quick Controller for accurate temperature adjustments up to 400°C.

• Versatile Compatibility:

  • Designed to fit 1-neck, 2-neck, or 3-neck 5L flasks.

• User-Friendly Design:

  • Easy to install and remove with Velcro straps.
  • Lightweight and compact for ease of use.

• Non-Conductive, Durable Materials:

  • Constructed from all non-electric conductive materials, ensuring safe and efficient operation.

Specifications

• Electrical Requirements: 110V 60Hz, 220 watts.
• Maximum Temperature: 400°C.
• Dimensions:
  • Unit: 12 x 12 x 6 inches.
  • Shipping: 12 x 12 x 12 inches.
• Weight:
  • Unit: 3 lbs.
  • Shipping: 5 lbs.
• Certifications: UL 61010-1 and CSA C22.2 (optional).
• Thickness: 1 1/4 inches.
• Made in the USA.

The Ai 5L HeatedShield Heating Top is engineered to deliver exceptional insulation and performance for medium-scale distillation setups. Its robust design and precision heating capabilities make it a reliable choice for laboratory environments requiring high-temperature control and operational safety.
