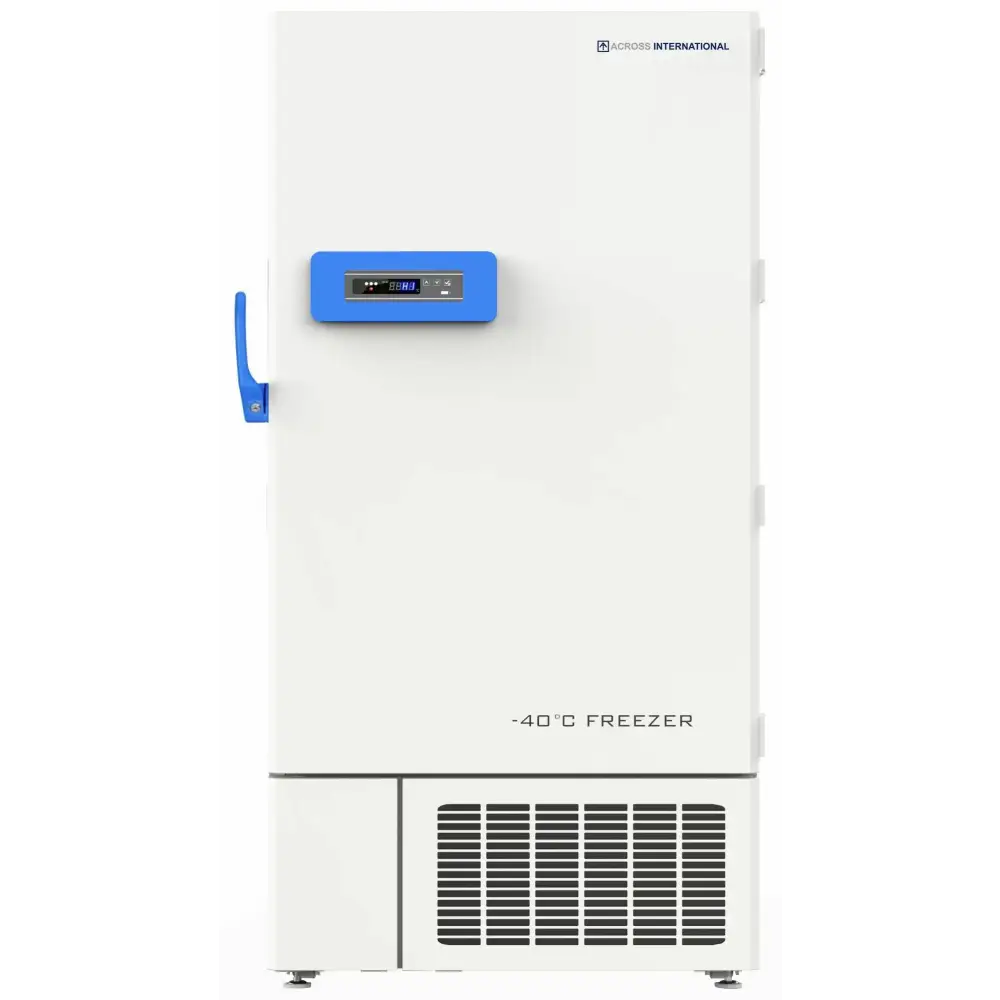

The Ai DeepFreeze D27 freezer is engineered for large-volume medical and scientific storage, offering superior reliability, efficiency, and safety. Designed for storing COVID-19 vaccines, DNA, RNA, virus samples, organs, and serum, this 27 Cu Ft upright freezer is a versatile and essential addition to laboratories, research facilities, and healthcare institutions.

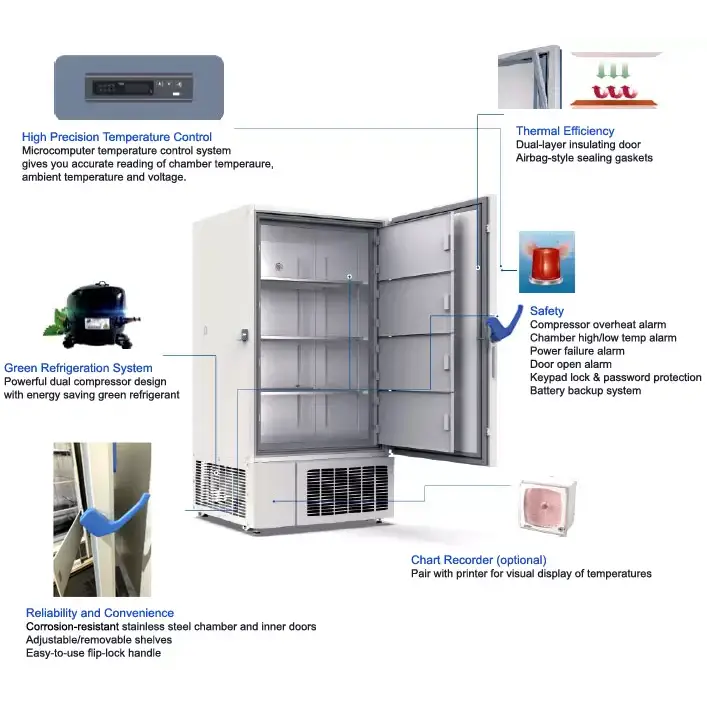

Key Features:
Performance and Design:
-
Temperature Range: Operates efficiently from -20°C to -40°C, reaching the lowest temperature in 4 hours.
-
Stainless Steel Interior: Ensures durability, easy cleaning, and hygienic operation.
-
Dual Sealing Gaskets: Provides airtight operation, reducing energy consumption and ensuring temperature stability.
Capacity and Usability:
-
Large Capacity: 27.1 Cu Ft chamber with the ability to hold:
-
450 lbs on the chamber base (evenly distributed).
-
110 lbs across the three adjustable shelves.
-

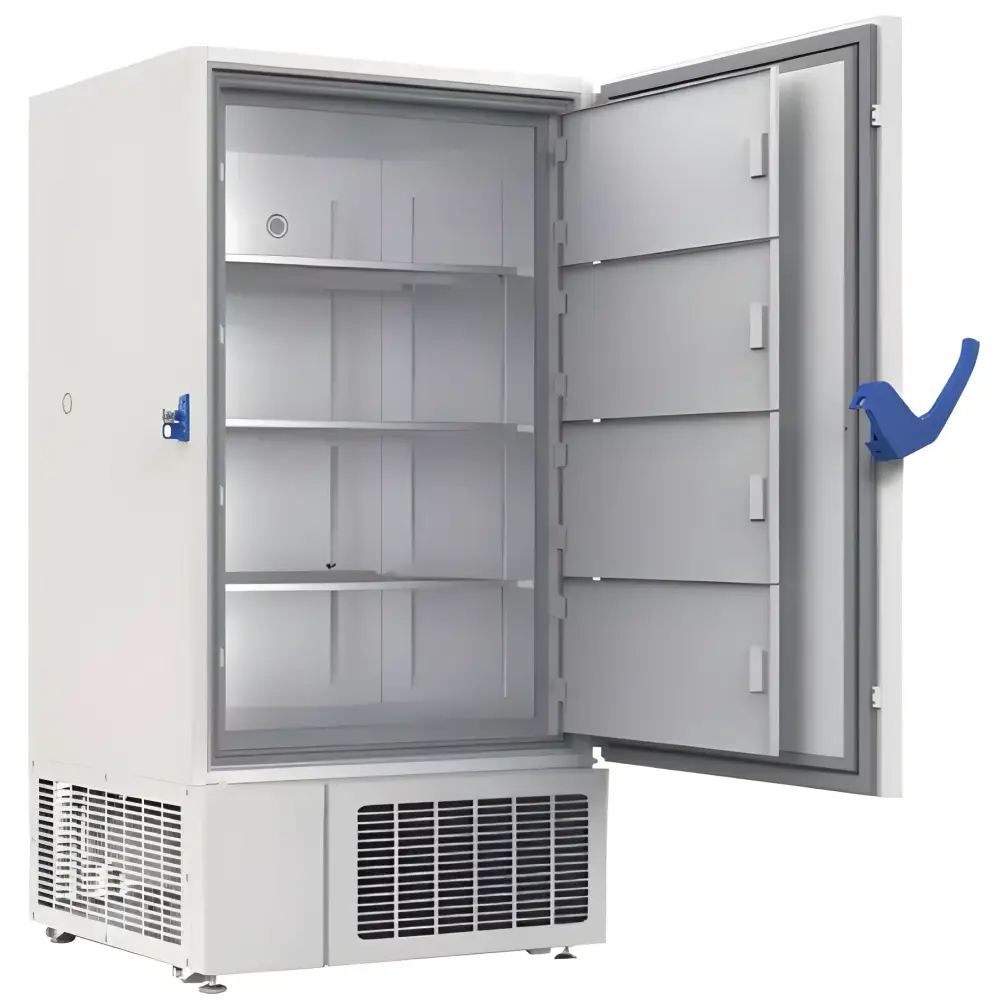

Adjustable Shelves: Stainless steel shelves are customizable for varying storage needs, with additional shelves available for $150 each.
-
Multiple Compartments: Four inner compartments with individual sealing gaskets for added temperature control.
Advanced Control and Monitoring:
-

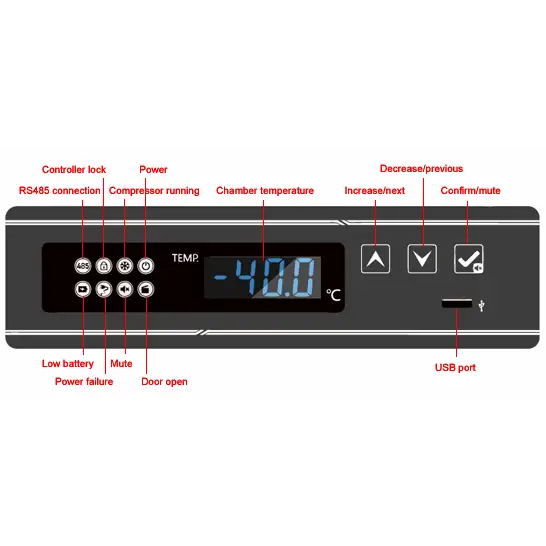

Integrated Touchscreen Controller: Includes advanced monitoring features and safety alarms.
-
Data Export and Monitoring:
- Built-in USB interface for data export.
-

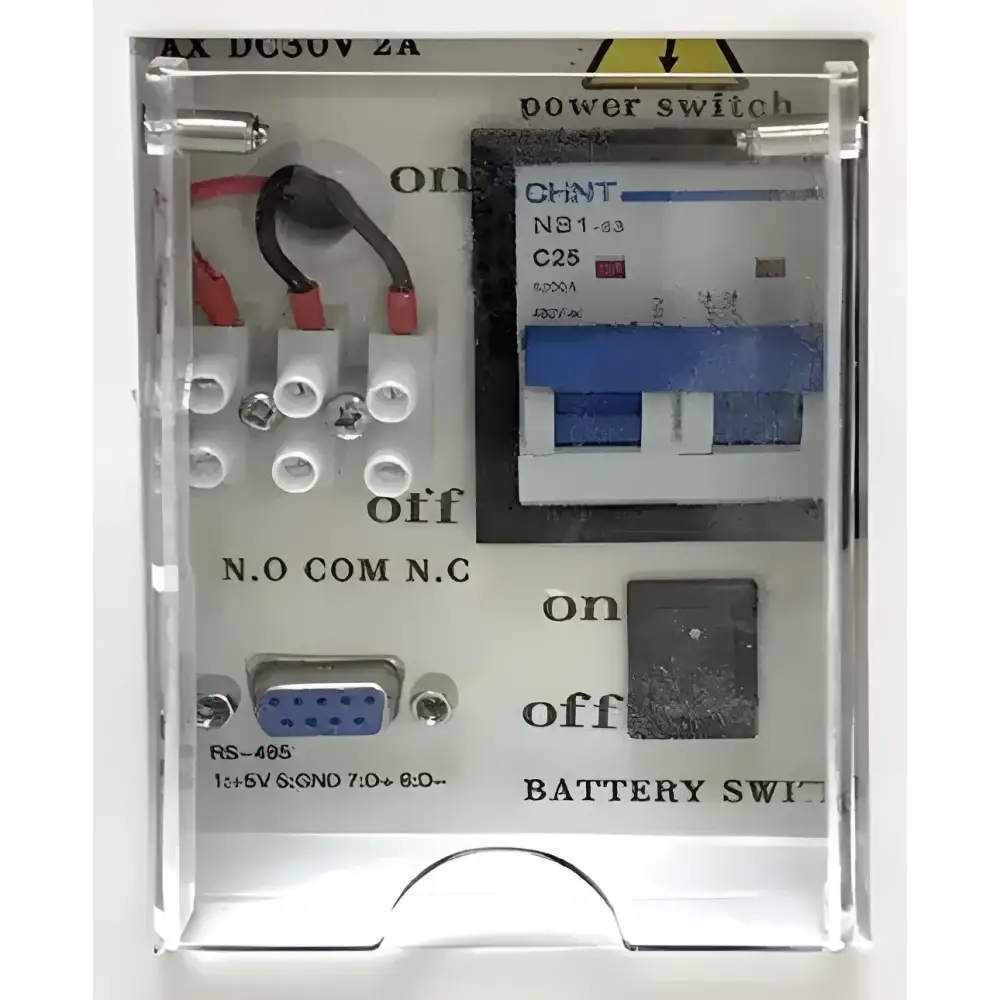

RS-485 port and 4-20mA transmitter for remote monitoring.
-
72-Hour Battery Backup: Supports alarms and controller display during power outages.
Energy Efficiency and Eco-Friendliness:
-
Low Power Consumption: Operates at 1,320 watts, powered by an energy-efficient SECOP compressor.
-
Quiet Operation: Emits only 52 dBA, ideal for noise-sensitive environments.
-
Environmentally Friendly Refrigerants: Uses R507, compliant with RoHS standards.
Safety Features:
-
Multiple Alarms: Alerts for power failure, high/low temperature, door open, and filter clogging.
-
Compressor Protections:
- Over-temperature and surge delay protections.
- Short circuit and over-current safeguards.
-
Lockable Door: Ensures security for sensitive materials.
Mobility and Placement:
-
Built-In Swivel Casters: Four casters for easy relocation, two with leveling feet for stability on uneven surfaces.
-
Compact Footprint: Optimized for laboratory and medical settings, with 12-inch clearance required for proper airflow.
Specifications:
Model: D27
-
Electrical Requirements: 110V ±10%, 60Hz, 1-Phase, 1,320W, 12A
Performance:
-
Temperature Range: -20°C to -40°C
-
Cooling Time: Reaches -40°C in 4 hours
Chamber:
-
Interior Dimensions: 34 x 27.5 x 51 inches (WxDxH)
-
Material: 304 Stainless Steel
-
Capacity: 27.1 Cu Ft
Storage:
-
Shelves: Three adjustable shelves (additional shelves for $150 each).
-
Compartment Dimensions: 33 x 26 inches per shelf.
-
Maximum Load Capacity:
-
450 lbs (chamber base).
-
110 lbs (shelves).
Dimensions and Weight:
-
Unit Dimensions: 47.5 x 41.5 x 77.5 inches (WxDxH)
-
Shipping Dimensions: 51 x 46 x 85 inches (WxDxH)
-
Unit Weight: 635 lbs
-
Shipping Weight: 866 lbs
Noise Level: 52 dBA
Access Ports:
- Two 1-inch diameter ports (side and back) for additional connectivity.
Battery Backup: 72 hours for alarms and controller.
Compliance:
- RoHS compliant, environmentally friendly materials.
Warranty: One year
Important Notes:
-
Initial Setup: Let the freezer stand for 24 hours before initial operation.
-
Placement: Ensure the unit is on a stable, well-ventilated platform with at least 12 inches of clearance from walls or ceilings.
-
Electrical Setup: Use a dedicated power outlet and avoid extension cables longer than 10 feet.
-
Maintenance: Clean condenser fins and defrost the chamber at least once a month.
Conclusion:
The Ai DeepFreeze 27 Cu Ft -40°C Upright Freezer combines robust storage capacity, advanced control systems, and top-notch safety features. Designed with energy efficiency and ease of maintenance in mind, it is a reliable solution for medical and research applications requiring precise temperature management.
