Ai P04M 0.4L/min Compact Peristaltic Pump ETL

The Ai P04M is a compact peristaltic pump, ideal for applications requiring low-flow fluid transfer with high precision. This pump operates on the principle of positive displacement, using a rotor with rollers that compress flexible tubing to move fluids through the pump, making it perfect for sensitive fluids that require non-contaminating, pulsation-free flow.

Key Features:

• Peristaltic Pumping Mechanism:

  • As a positive displacement pump, the P04M uses rollers to compress flexible tubing, inducing fluid flow via peristalsis. This ensures precise flow and minimal risk of contamination since only the inside of the tubing is in contact with the fluid.

• Low Flow Rate:

  • This pump offers a flow rate of 0.4L/min, suitable for applications that require small and precise fluid movement.

• Adjustable Speed:

  • The P04M has an adjustable rotation speed of up to 100 rpm with a fine 0.1 rpm step, allowing for accurate control over the flow rate.

• Analog Controller:

  • The P04M features an analog controller for straightforward operation, allowing users to adjust speed and control the flow rate according to specific requirements.

• Max Tubing Size:

  • The pump can accommodate tubing sizes up to 1/2 inch.

• Communication Port:

  • The pump includes a remote on/off switch and supports optional RS485, 0-5V, 0-10V, and 4-20mA inputs for integration with PLC systems. This allows remote control of the pump's start/stop function, speed, and rotation direction.

• Durable Design:

  • The P04M is built with an IP31 rating, which offers protection against dust and splashes, ensuring its reliability in a range of working environments.

Specifications:

• Model: P04M

• Electrical Requirements:

  • 110V-230V with auto intelligent voltage recognition
  • 50/60Hz, 1-Phase, 22 watts
  • Power Cord: 110V US 3-prong (optional 230V cord available upon request)

• Pumping Rate: 0.4L/min

• Max Rotation Speed: 100 rpm (adjustable in 0.1 rpm steps)

• Pump Head: Y15

• Max Tubing Size: 1/2"

• Standard Tubing Model: TP04M.XF

• Controller:

  • Type: Analog

• Working Temperature: 0 to 40°C, < 80% humidity

• IP Rating: IP31 (dust and splash protection)

• Communication Ports:

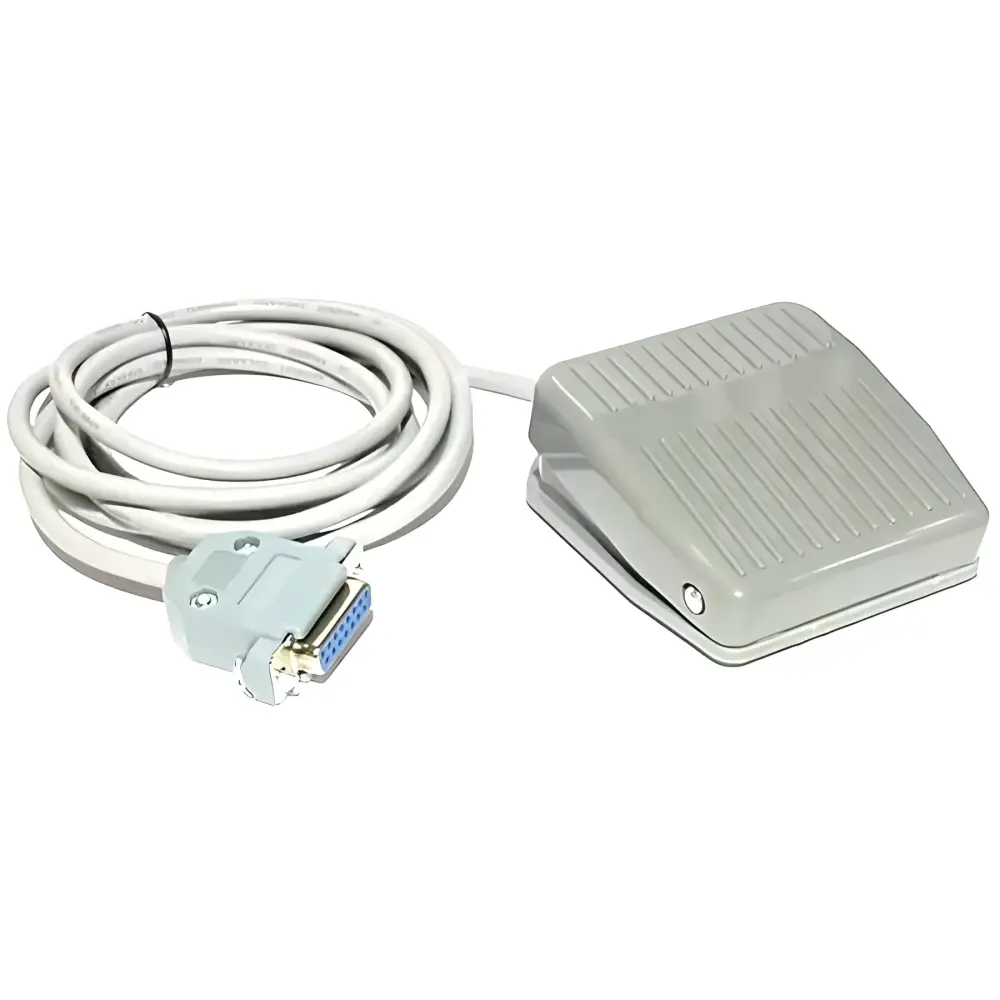

  • Included: Remote on/off switch
  • Optional: RS485, 0-5V, 0-10V, 4-20mA for PLC control

• Unit/Shipping Dimensions:

  • Unit: 6 x 12 x 7.5 inches (WxDxH)
  • Shipping: 10 x 15 x 10 inches (WxDxH)

• Unit/Shipping Weight:

  • Unit Weight: 10 lbs
  • Shipping Weight: 10 lbs

• Compliance:

  • ETL tested to UL and CSA standards

• Warranty: One year

Conclusion:

The Ai P04M Compact Peristaltic Pump is a reliable solution for applications requiring low-flow fluid transfer with precision. With its adjustable speed, analog control, and compact design, it is well-suited for laboratory, research, and small-scale industrial applications. Its easy integration with PLC systems and protection against dust and splashes further adds to its versatility and durability.
