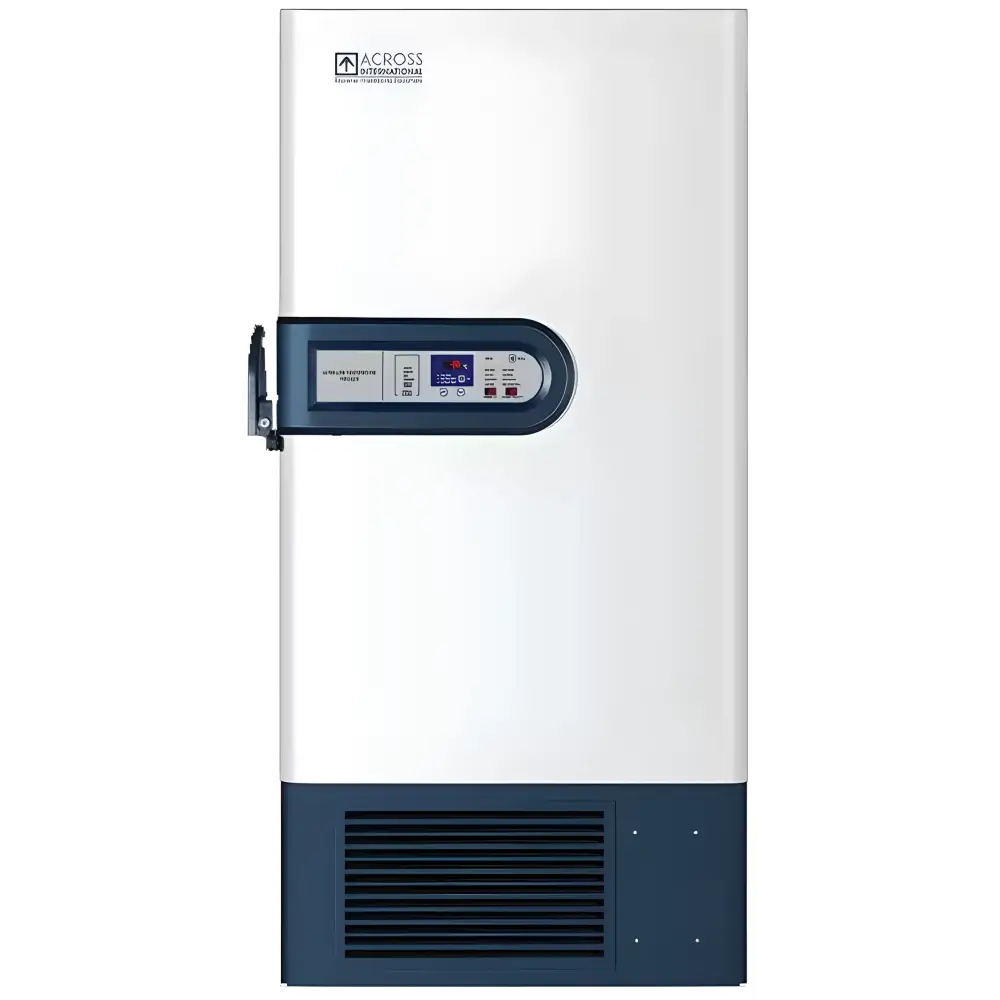

Ai RapidChill 26 CF 86°C Ultra-Low Temp Upright Freezer UL 110V

The Ai RapidChill -86°C Ultra-Low Freezer offers exceptional performance, reliability, and energy efficiency for laboratories, research centers, and healthcare facilities. Designed to comply with CDC and VFC guidelines, it provides safe and stable storage for sensitive materials such as vaccines, DNA, RNA, and serum.

Key Features

• Temperature Range: -40°C to -86°C for ultra-low storage needs.

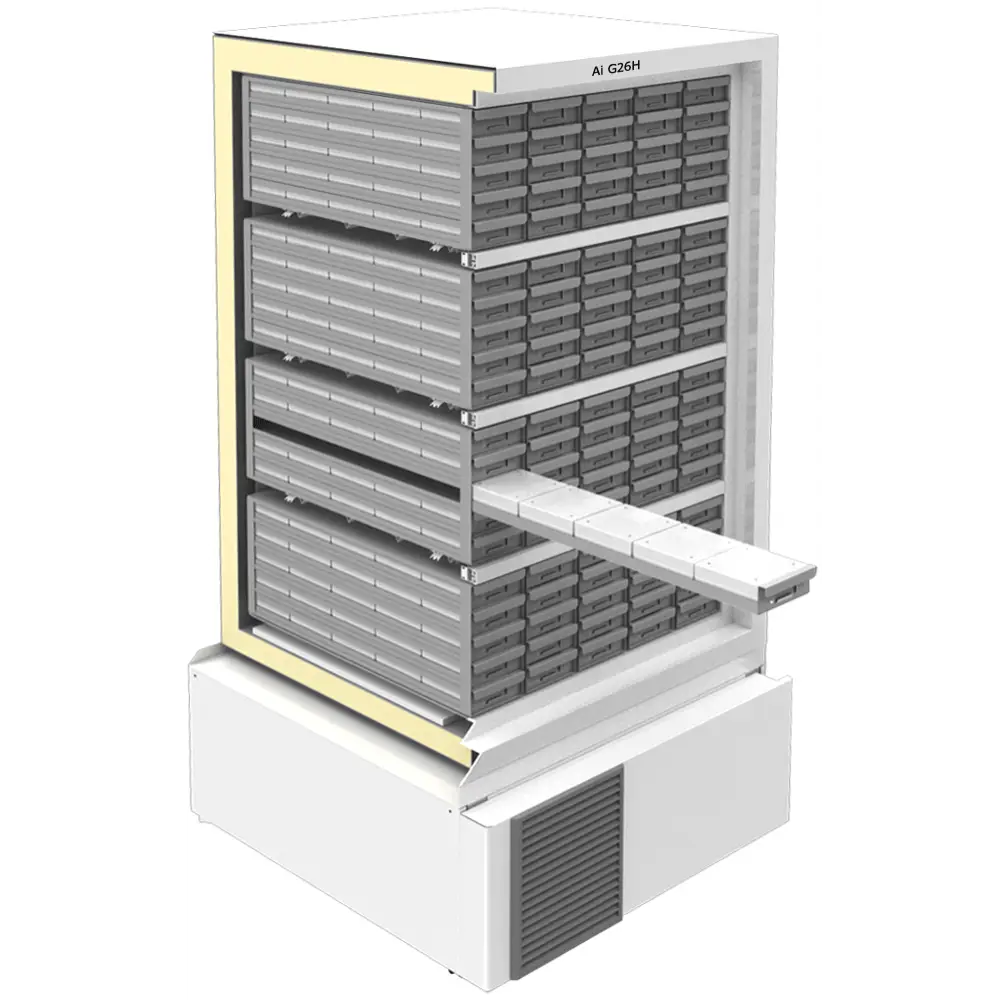

• High Capacity: 26 Cu Ft (25.7 Cu Ft usable) with space for up to 500 cryo boxes (5x5x2").
• Energy Efficient: Energy Star certified, with only 10.5 kW/day power consumption.
• Advanced Insulation: VIP (Vacuum Insulated Panel) ensures superior thermal retention.

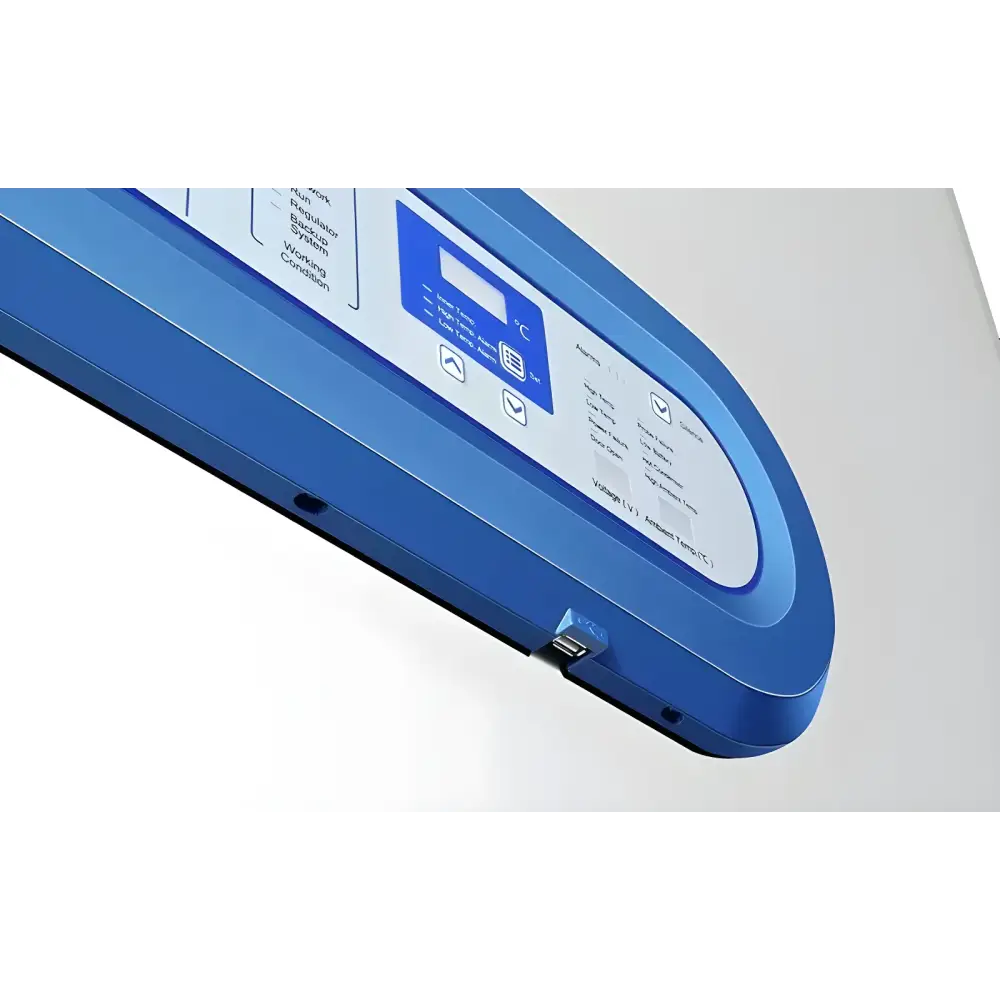

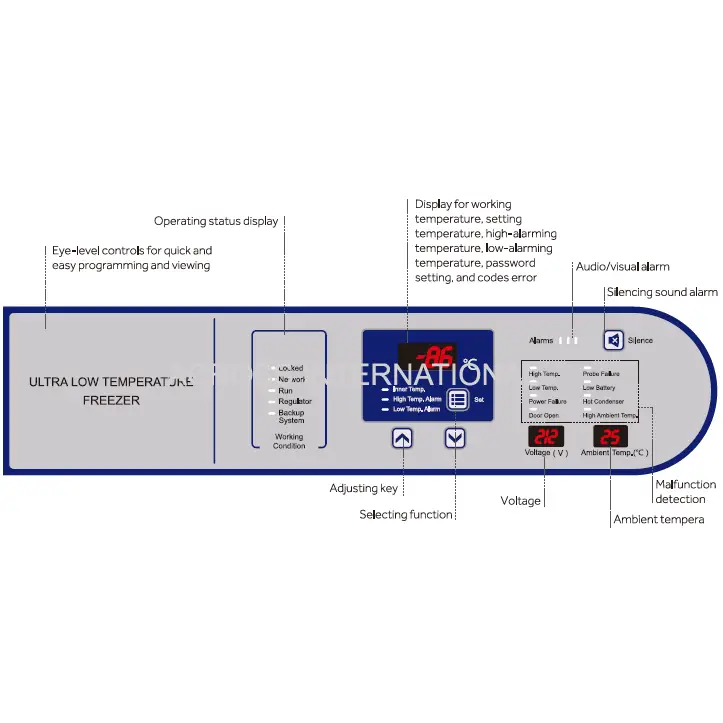

• User-Friendly Design: Microcomputer-controlled system with a digital temperature display.
• Dual Compressors: Two SECOP (Germany) compressors for consistent and reliable performance.
• Low Noise: Operates at 50 dBA, minimizing disturbances.

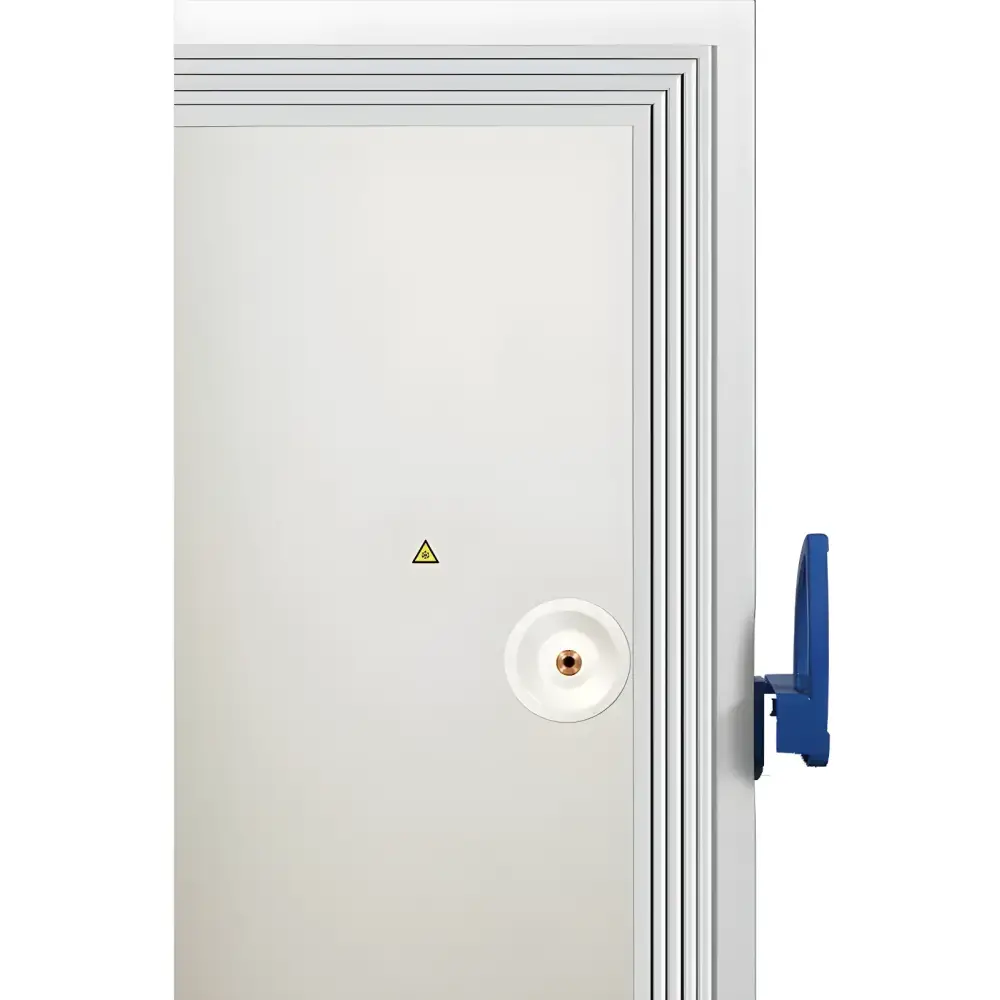

• Robust Safety: Equipped with multiple alarms, password protection, and door locks.
• Compliance: Meets UL 61010-1, CSA C22.2, and Energy Star standards.

Specifications

Performance

• Temperature Range: -40°C to -86°C.
• Cooling Time:
  • Ambient to -86°C: 5 hours.
  • Recovery from -86°C to -50°C: 5 hours.
  • Door open recovery time (1 min open, -75°C): 30 mins.
• Uniformity: ±4°C.

Electrical

• Voltage: 110V (±10%) 60Hz, 1-phase.
• Power Consumption: 10.5 kW/day.

Construction

• Exterior Dimensions: 41 x 38.5 x 78" (WxDxH).
• Interior Chamber: 30.5 x 28.2 x 51.6" (WxDxH).
• Insulation: VIP.
• Material: Powder-coated steel exterior, stainless steel (304) shelving.

Storage

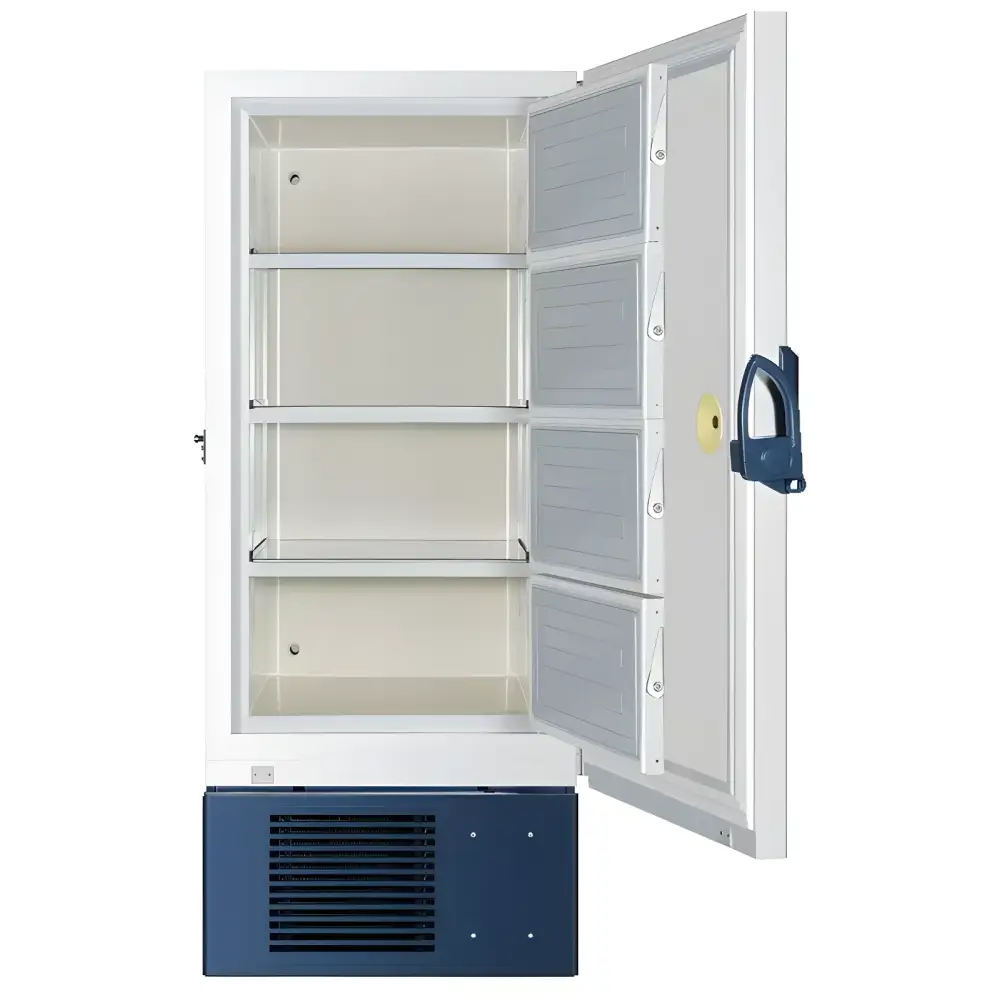

• Shelves:
  • 3 fully adjustable shelves, 29.5 x 26.7" (WxD).
  • Load Capacity: 200 lbs.

Communication

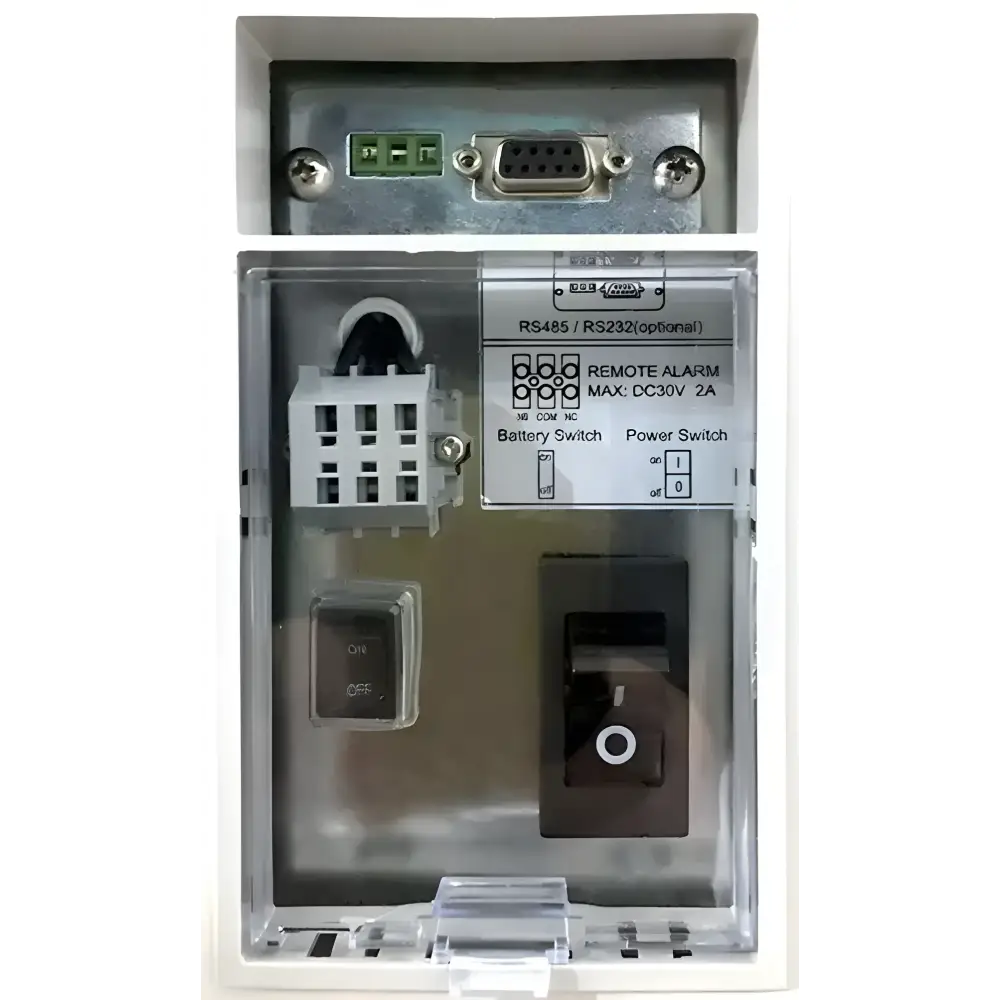

• Ports:
  • RS-485, USB (stores 15 years of data).
  • Optional: 4-20mA transmitter.

Safety and Alarms

• Over-temperature, low-temperature, and ambient over-temp alarms.
• Compressor surge delay protection.
• Door open, condenser clogging, and system failure alarms.
• 48-hour battery backup for controller and alarms.

Weight

• Net/Shipping Weight: 760 lbs / 850 lbs.

Additional Notes

1. Installation: Ensure a stable, ventilated platform with at least 12 inches of clearance from walls or ceilings.
2. Power Requirements: Use a dedicated outlet, avoid sharing power, and limit extension cords to 10 feet.
3. Maintenance: Monthly condenser cleaning and frost removal are recommended.
4. Startup: Allow the freezer to sit 24 hours before initial power-up.

Warranty

• Full Service: 2 years.
• Parts: 3 years.
• Compressor: 5 years.

The Ai RapidChill 26 Cu Ft ULT Freezer is an ideal choice for environments demanding precise temperature control, efficient energy use, and robust safety features.
