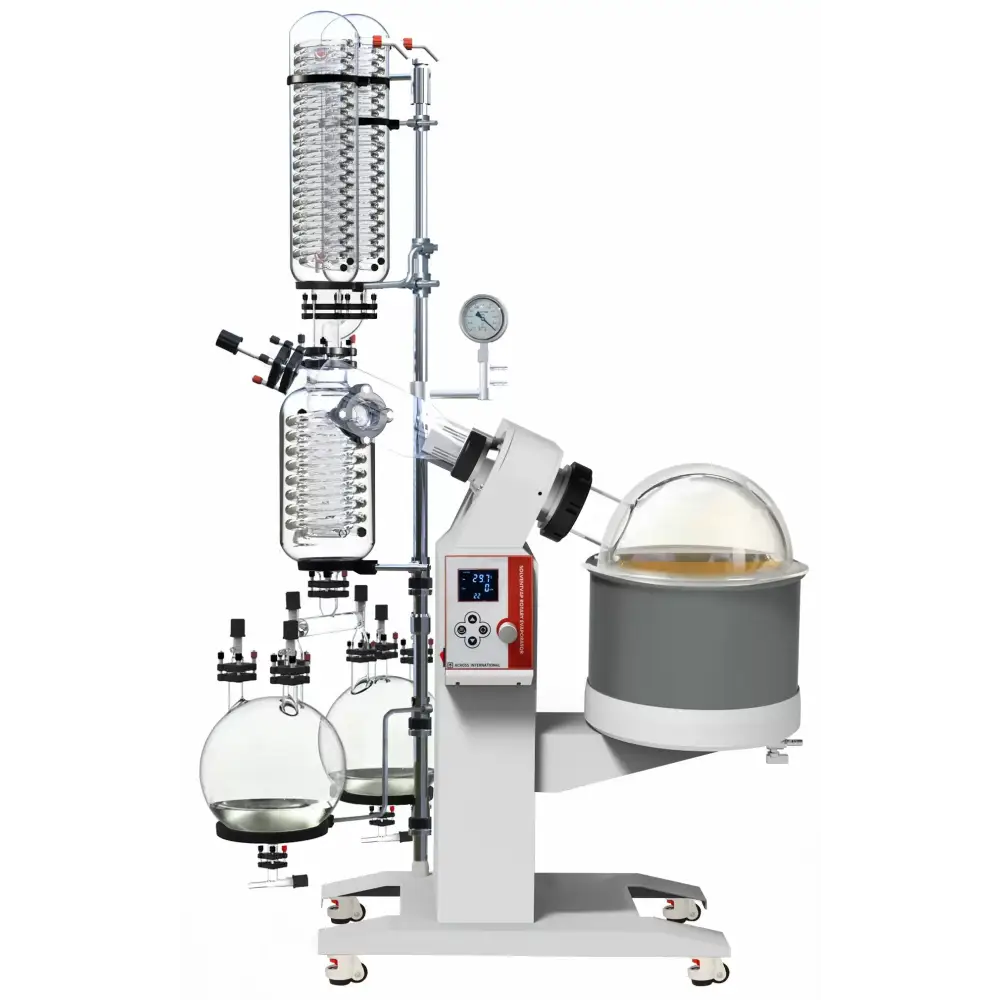

Ai SolventVap 2.6-Gallon/10L Rotary Evaporator w/ Motorized Lift

The Ai SolventVap 10L Rotary Evaporator is a high-capacity, ETL-tested system designed to offer reliable, efficient, and safe solvent evaporation. With motorized lifting, vertical glassware, and advanced safety features, this evaporator is an excellent solution for large-scale distillation applications, particularly in chemical, pharmaceutical, and research laboratories.

Key Features:

• ETL Tested to UL/CSA Standards: This certification ensures that the unit meets high safety and performance standards, which is crucial for ensuring a long equipment lifespan and secure operation.

• Motorized Lift: The motorized water bath lift allows precise control over the flask's height, making it easier to adjust during the evaporation process.

• Cold Trap Condenser: The evaporator includes main and auxiliary triple-circulating cold traps, utilizing highly efficient glass tubes that maximize the surface area for optimal solvent condensation. The cold traps utilize dry ice for maximum condensation efficiency.

• Digital Temperature Control: The PID temperature controller ensures accurate control of the water bath temperature (ambient to 99°C or 210°F), with a digital display for both speed and temperature, ensuring user-friendly operation.

• Swivel Casters: Equipped with strong swivel casters, the system is designed for easy mobility, even on uneven floors, offering better storage and positioning flexibility.

• Safety Features: Built-in safety features include dry-run protection, over-temperature shut-off, and circuit breakers to enhance user safety. Additionally, the unit has a built-in vacuum release to safely and efficiently manage the vacuum system.

• PTFE & Viton Seals: Solvent-resistant PTFE and Viton gaskets are used throughout the system to ensure long-term, reliable operation, even with aggressive solvents.

• Compact and Efficient: The optimized glassware design and powerful motor ensure that the unit delivers high performance, even during continuous operation. The evaporator has two heaters in the water bath for efficient heating, reducing the time required to reach optimal temperatures.

Specifications:

• Electrical Requirements:

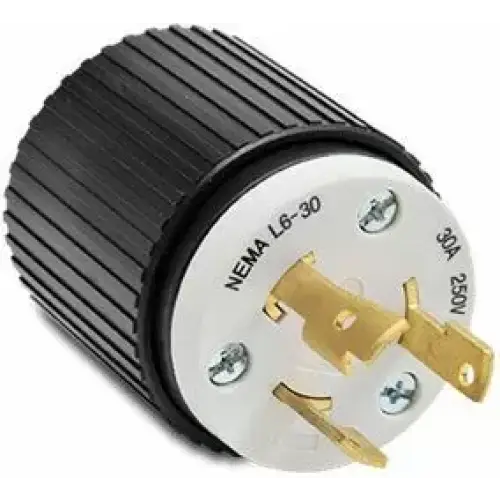

  • 220V 50/60Hz single-phase, 3800 watts, 17.3A
  • Rotation motor: 300 watts

• Evaporating Flask:

  • Capacity: 2.6 gallons (10 liters)
  • Maximum load: Not to exceed 60% of the flask’s capacity
  • Sealing flange: 4.9" diameter
  • Rotation speed: 10 to 130 rpm
  • Evaporating speed: 0.75 gallon/hour (water), 1.5 gallon/hour (alcohol)

• Receiving Flask:

  • Capacity: 1.3 gallon (5 liters)

• Condenser:

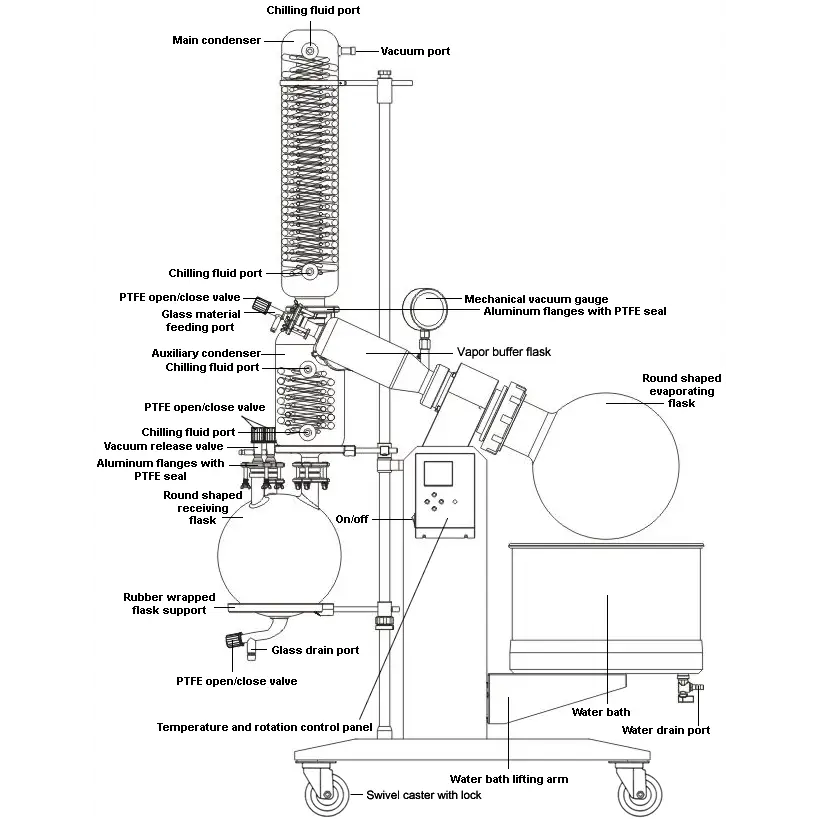

  • Type: Main and auxiliary triple-circulating cold traps (vertical)
  • Chilling fluid connection: 3/8" hose barb x 4 (2 on main + 2 on auxiliary)
  • Condensing surface:
    • Main condenser: 3,900 cm² (4.2 sq ft)
    • Auxiliary condenser: 2,530 cm² (2.7 sq ft)

• Water Bath:

  • Temperature range: Ambient to 99°C (210°F)
  • Material: Stainless steel
  • Max water level: Not to exceed 1" from the top rim of the bath
  • Lifting: Motorized (4-inch maximum lift)
  • Number of heaters: Two
  • Drain port: One
  • Exterior liner: Rubber

• Vacuum System:

  • Vacuum level: < 3 torrs
  • Vacuum sealing: PTFE + Viton gaskets
  • Vacuum connection: 3/8" hose barb x 1

• Mobility:

  • Swivel casters: Four, built-in with locks for secure positioning

• Safety:

  • Dry-run protection, over-temperature shut-off, and built-in circuit breakers for enhanced safety

• Shipping Weight:

  • Evaporator: 200 lbs
  • Glassware: 100 lbs

• Unit Dimensions:

  • 36 x 22 x 67" (WxDxH)
  • Shipping dimensions: 39 x 22 x 44" (evaporator), 30 x 25 x 28" (glassware)

• Compliance:

  • UL 61010-1: 2012 Ed.3
  • CSA C22.2# 61010-1-12: 2012 Ed.3
  • CE certification optional

Conclusion:

The Ai SolventVap 10L Rotary Evaporator with Motorized Lift is an excellent choice for high-capacity distillation tasks, offering efficient and reliable solvent evaporation with advanced features that ensure safety, precision, and convenience. This unit is suitable for laboratory settings that require continuous, large-scale solvent recovery and offers an ideal solution for chemical, pharmaceutical, and industrial applications
