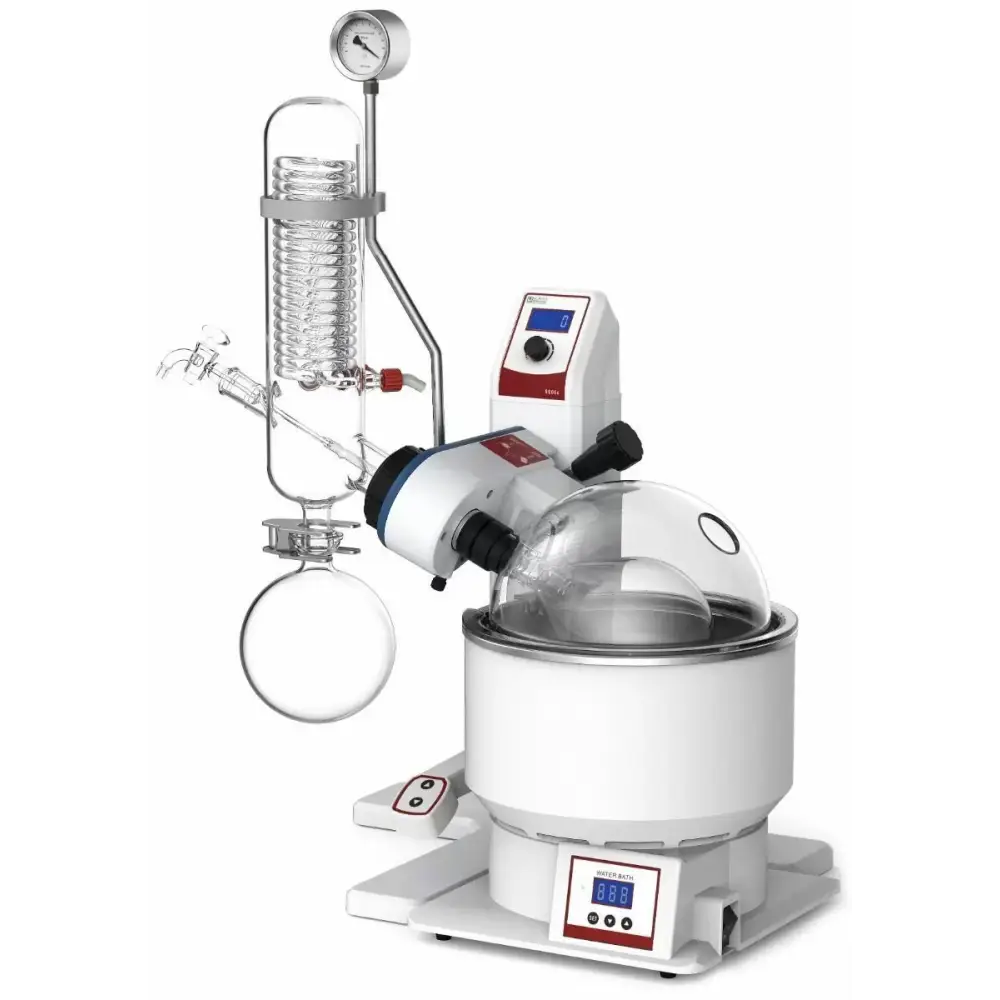

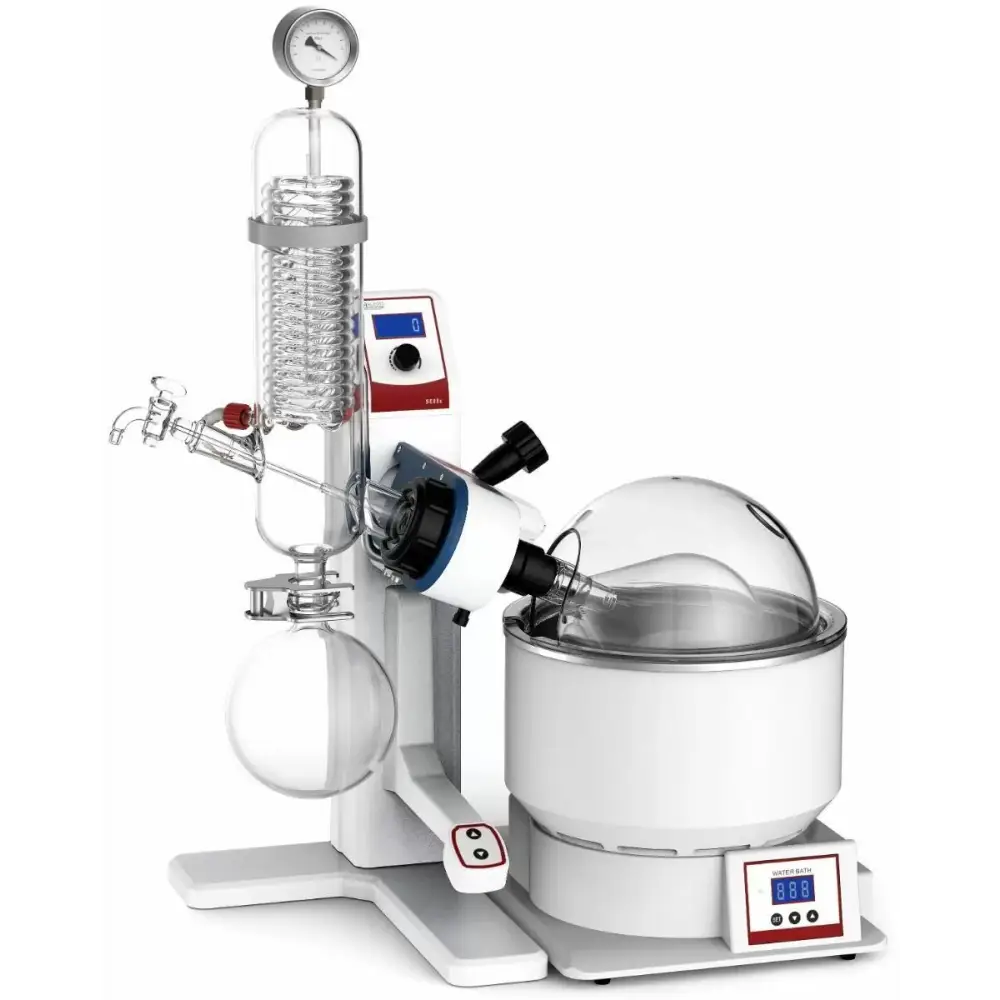

Ai SolventVap 2L Rotary Evaporator with Electric Flask Lift 110V

The Ai SolventVap 2L Rotary Evaporator is an efficient, easy-to-use evaporation system, ideal for laboratories requiring the removal of solvents in applications such as chemical synthesis, extraction, and distillation. With its electric flask lift, modular design, and digital temperature/rotation control, this evaporator offers advanced features typically found in higher-end models, making it a reliable choice for researchers and industrial users.

Key Features:

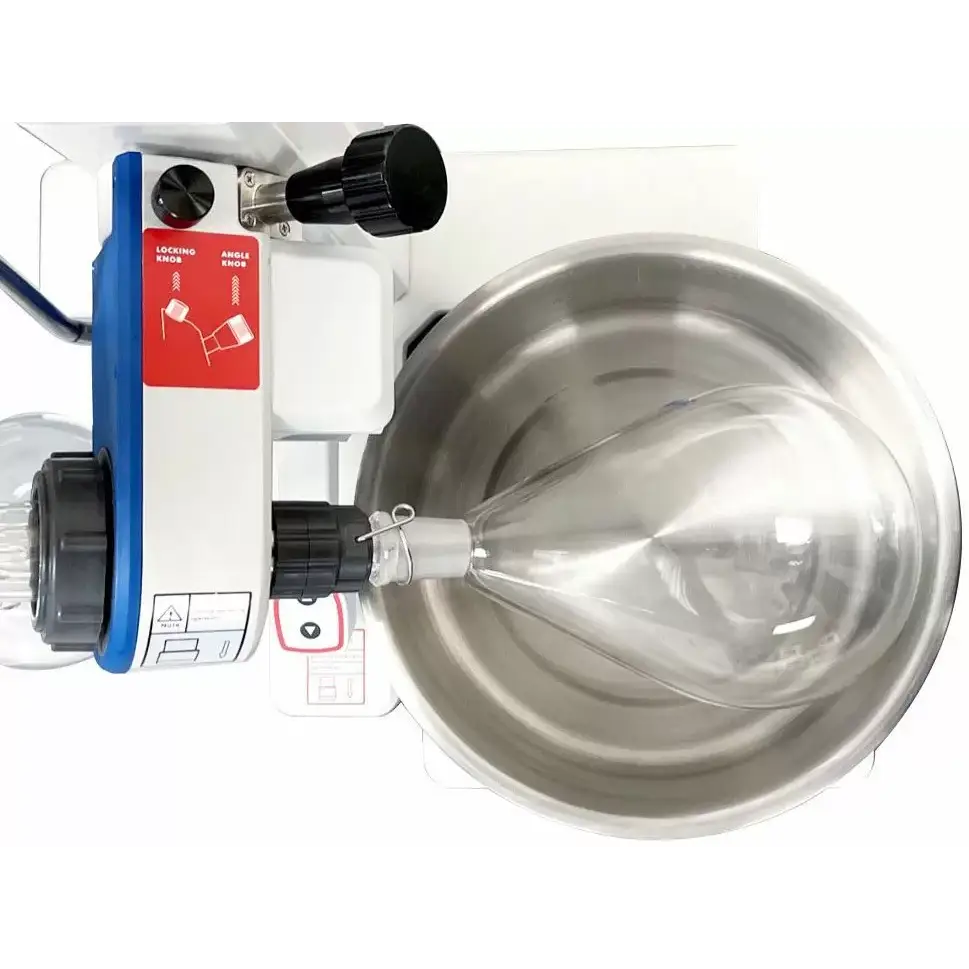

• Electric Flask Lift: The new electric flask lift allows for smooth and easy lifting of the evaporating flask without exposure to a water bath heater. This lift also features a secure locking mechanism and a lifting distance of up to 4 inches, which can be extended to 10 inches.

• Non-exposed Water Bath Heater: The water bath heater is non-exposed, preventing overheating and ensuring safety during operation. It includes a plexiglass cover to protect the user and help maintain consistent temperature control.

• Solvent-Resistant Gaskets: The PTFE and Viton gaskets ensure long-lasting, solvent-resistant performance, making the system highly durable and efficient.

• Quiet, Vibration-Free Operation: The specialized motor features an intermeshed worm and worm gear that provide quiet and vibration-free operation, contributing to a more stable and efficient evaporation process.

• Downward-Condensing Vacuum Connection: The downward-condensing design ensures safe vacuum operation by directing the vacuum line downward, minimizing the risk of leaks.

• Modular Design: The system is modular, with separate rotary and water bath modules. This design allows for easy future upgrades or replacements of parts.

• PID Temperature Control: The PID temperature controller ensures precise and accurate control of the water bath temperature, ranging from ambient to 95°C.

• Safety Features: Built-in safety features such as dry-run protection, over-temperature shut-off, and fuse protections help prevent accidents during operation.

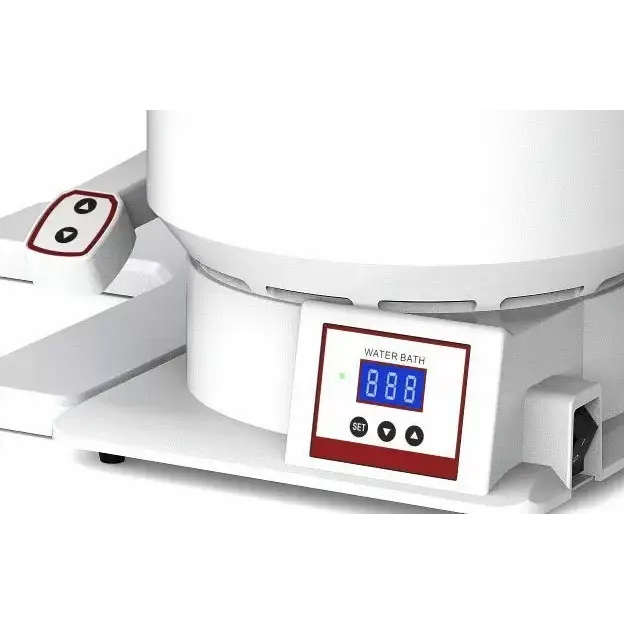

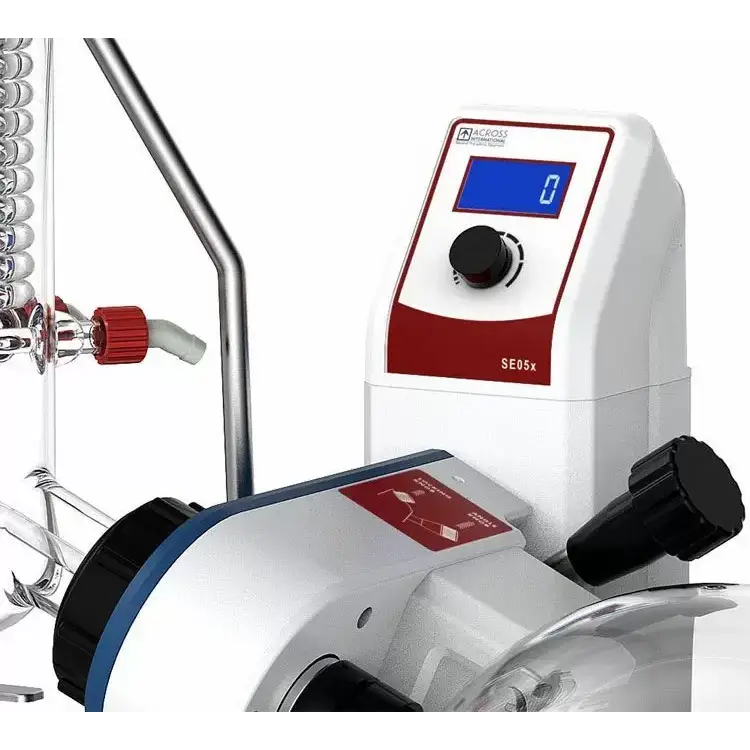

• Digital Display: The digital speed and temperature display make it easy to monitor and adjust the settings for optimal performance.

Specifications:

• Electrical Requirements:

  • 110V, 60Hz, 1-phase
  • Power: 1,340W (1,300W for the heater, 40W for the motor)

• Glass Material: High-quality borosilicate glass 3.3 for durability and resistance to thermal shock.

• Evaporating Flask:

  • Capacity Options: 0.13 gallon (0.5L), 0.26 gallon (1L), or 0.53 gallon (2L)
  • Maximum Load: Do not exceed 60% of the flask's capacity
  • Rotation Speed: 20 to 280 rpm
  • Evaporating Speed: 20 ml/min

• Lifting Mechanism:

  • Type: Electric lift
  • Max Lifting Distance: 4 inches (extendable to 10 inches)

• Receiving Flask: 1L capacity

• Condenser:

  • Design: Vertical with dual-spiral glass tubing
  • Chilling Fluid Connection: 3/8" hose barb x 2
  • Vacuum Connection: 3/8" hose barb x 1
  • Condensing Surface Area: 1,260 cm² (1.4 sq ft)

• Water Bath:

  • Capacity: 6.5L
  • Material: Stainless steel
  • Temperature Range: Ambient to 95°C
  • Dimensions: 10" diameter x 5" depth x 9.75" height
  • Media: Distilled water only
  • Max Water Level: Do not exceed 1" from the top rim
  • Heaters: 1 heater

• Vacuum:

  • Ultimate Vacuum: <3 torr
  • Vacuum Connection: 3/8" hose barb on condenser
  • Sealing: PTFE + Viton gaskets

• Safety:

  • Dry-run protection
  • Over-temp shut-off
  • Fuse protection

• Weight:

  • Unit Weight: 21 lbs
  • Shipping Weight: 55 lbs

• Dimensions:

  • Unit: 22" x 12.5" x 26" (WxDxH)
  • Shipping: 24" x 24" x 25" (WxDxH)

• Warranty: One-year warranty (except glassware and sealing gaskets)

• Compliance: ETL-tested to UL and CSA standards

Conclusion:

The Ai SolventVap 2L Rotary Evaporator provides reliable, efficient, and safe solvent evaporation with advanced features such as electric flask lift, modular design, and precise temperature control. Its safety features, durable construction, and easy-to-use digital controls make it a great choice for labs in need of a robust evaporation system. Whether for small-scale or high-demand applications, the SolventVap 2L ensures consistent results with an excellent value proposition compared to higher-end models.
