BenchMixer™ XL

BenchMixer XL – Multi-Tube Vortexer

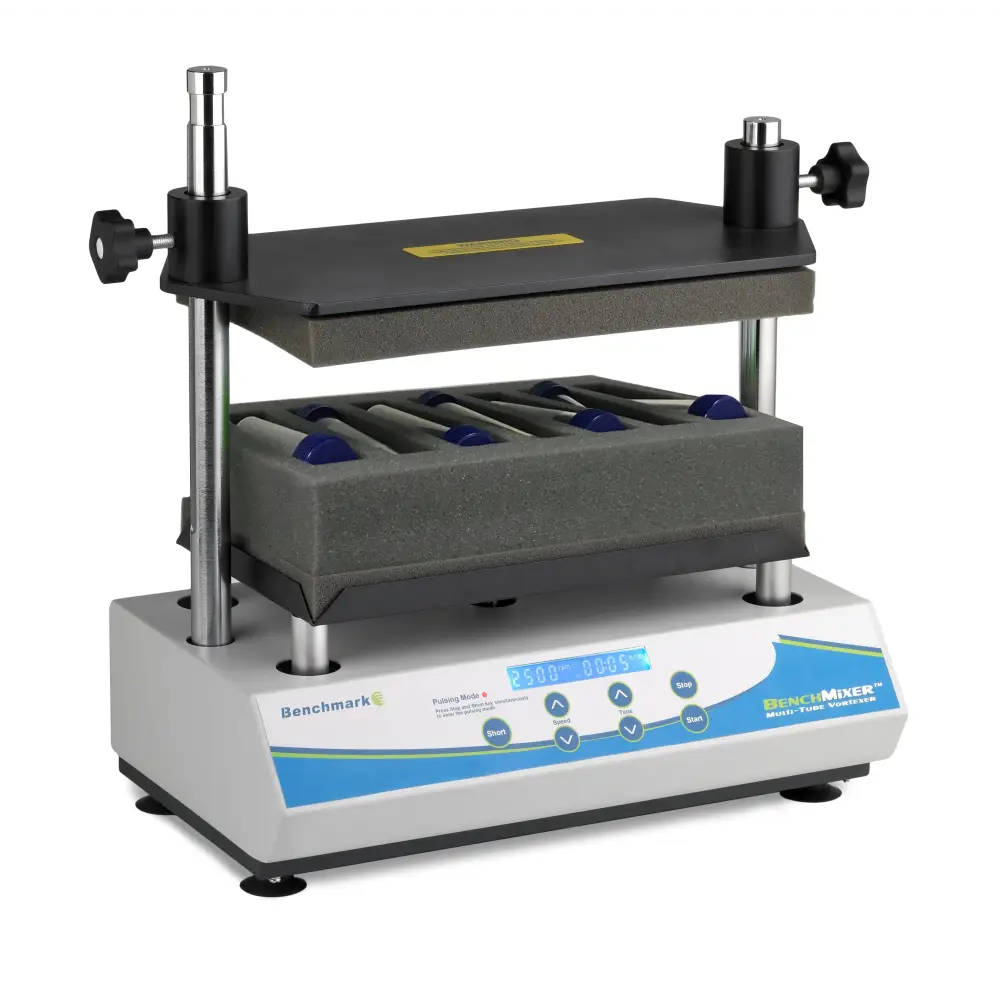

The BenchMixer XL is a heavy-duty, high-capacity vortexer designed for hands-free mixing of a variety of tubes, vials, and cylinders, making it ideal for laboratories with high-throughput requirements. It’s an excellent solution for applications such as the QuEChERS pesticide analysis method and more.

Key Features:

1. High-Speed Vortexing:

   • The BenchMixer XL provides powerful vortexing with speeds ranging from 500 to 2500 rpm, delivering a true vortex in each tube. This makes it ideal for thorough mixing in a wide range of vessels.

2. Hands-Free Operation:

   • The hands-free operation is a major advantage, especially for laboratories handling a high volume of samples. Load the sample rack, tighten the locking knobs, and the vortexer does the rest. It will run automatically for up to 100 hours, making it perfect for extended operation.

3. Large Capacity:

   • The 7x12 inch platform accommodates a wide variety of tubes and vessels, including standard pre-drilled tube racks. Its max. capacity of 6 x 50ml tubes ensures versatility for various laboratory applications.

4. Customizable for Multiple Applications:

   • The BenchMixer XL comes with a wide assortment of accessories for different tube sizes, including micropipettes, flasks, and plates. The platform is adaptable for both horizontal and vertical applications, providing unmatched versatility in vortexing.

5. Pulsing Program for Interval Mixing:

   • A built-in pulsing program allows for interval mixing, which is great for sensitive samples or applications that require mixing in short bursts.

6. Easy to Use:

   • Simply load the sample rack, select the desired speed, and press “Start” to begin mixing. The vortexer will run continuously and can be left unattended for long durations.

7. Ideal for High-Throughput:

   • Its large capacity and ability to handle a variety of vessels make it an excellent choice for laboratories with medium to high throughput. The BenchMixer XL is designed to maximize workflow efficiency.

Technical Specifications:

• Speed Range: 500 to 2500 rpm
• Max. Capacity: 6 x 50ml tubes or equivalent
• Timer: 1 min to 99 hr 59 min
• Orbit: 3.6mm
• Platform Dimensions: 12 x 7 in / 30 x 17.8 cm
• Exterior Dimensions: 15.9 x 12 x 16.5 in / 40.5 x 30.5 x 42 cm
• Operating Temp. Range: 4°C to 65°C
• Weight: 13 kg / 29 lbs
• Electrical: 100V to 240V, 50-60Hz, 50W
• Warranty: 2 years

Ordering Information:

• BV1010: BenchMixer XL Multi-Tube Vortexer, 115V (Includes 50 x 12mm tube rack)

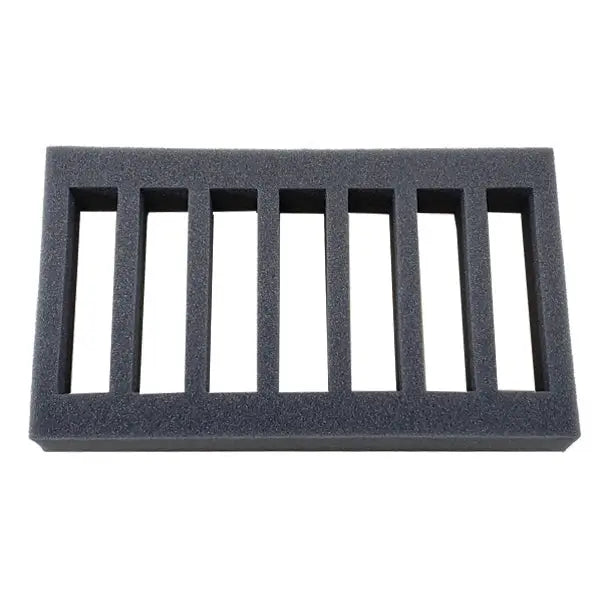

• BV1010-05: Tube Rack, 6 x 0.5ml (88mm)
• BV1010-10: Tube Rack, 15 x 1.5ml (107mm)
• BV1010-12: Tube Rack, 30 x 1.5ml (126mm)

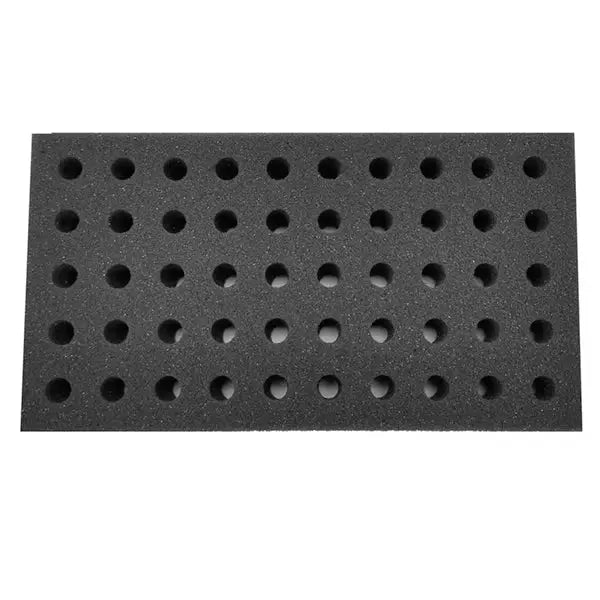

• BV1010-20: Tube Rack, 50 x 1.5ml (135mm)
• BV1010-50: Tube Rack, 15 x 50ml
• BV1010-MP: Microplate Rack, 30 x 96 well plates

The BenchMixer XL offers unmatched versatility and capacity for a wide range of vortexing applications. Ideal for high-volume, high-throughput labs, this unit ensures reliable, hands-free mixing that saves time and reduces operator fatigue.
