CO2 Incubators ST-45 and ST-180

Benchmark SureTherm™ CO2 Incubators

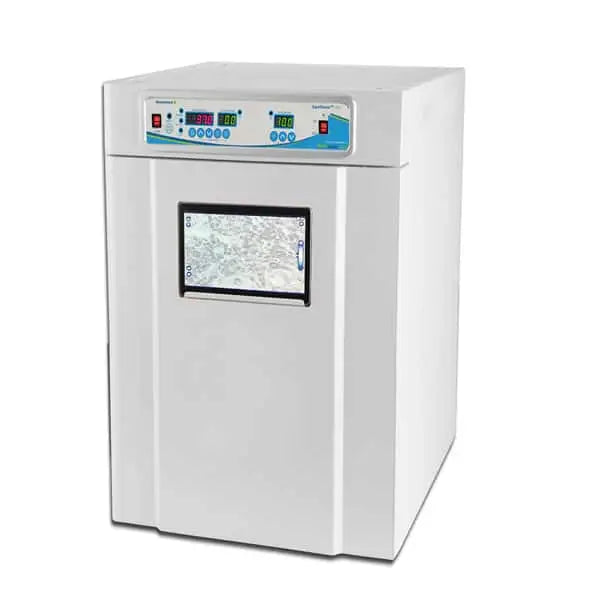

Benchmark’s SureTherm™ CO2 Incubators provide an ideal environment for cell cultures, offering precise temperature and CO2 control to optimize growth conditions. Equipped with advanced features like the patented IncuView™ LCI (Live Cell Imaging) technology, these incubators allow for real-time monitoring of live cells without removal from the incubator, minimizing the risk of contamination and maintaining stable temperature and CO2 levels.

Key Features:

• IncuView™ LCI (Live Cell Imaging): The integrated internal microscope enables viewing of live cells in real-time on a large, integrated display or remotely via a tablet, computer, or WiFi-enabled device. This feature eliminates the need to remove samples from the incubator, preventing temperature fluctuations and contamination risk.
• Precise CO2 and Temperature Control: With precise control over temperature (ambient +5°C to 60°C) and CO2 levels (0 to 20%), the SureTherm™ incubators create an optimal environment for cell growth. The incubator’s dual beam infrared CO2 sensor ensures accurate CO2 measurement and maintains consistent growth conditions.
• Advanced Heat Distribution: A unique 6-sided direct heating system ensures rapid temperature recovery and consistent heat distribution, while the heated door and frame prevent condensation on the glass.
• High Heat Decontamination Cycle: The 180L models come with a high-heat decontamination cycle that can heat the chamber up to 125°C to reduce the risk of contamination.
• Split Inner Door: The innovative split inner door design reduces contamination risks by allowing external door access without disrupting the internal environment. This feature is available on 180L models.

Technical Specifications:

• Models Available:
  • H3565-45: 45L with two shelves
  • H3565-180: 180L with three shelves
  • H3565-180HD: 180L with High Heat Decontamination
  • H3565-180HD02: 180L with O2 Control and Heat Decontamination
• Temperature Range: Ambient +5°C to 60°C
• Temperature Accuracy: ±0.1°C (45L), ±0.4°C (180L)
• CO2 Range: 0% to 20% (0% to 10% for 180L with O2 Control)
• CO2 Accuracy: ±0.1%
• Oxygen Control: Available on the H3565-180HD02 model (0.5% to 20%)
• Power Consumption:
  • 45L: 300W
  • 180L: 420W
  • 180L with High Heat Decontamination: 700W
• Dimensions:
  • 45L: 13.2 x 14.2 x 15.4 in (33.5 x 36 x 39.2 cm)
  • 180L: 18.7 x 20.8 x 28.1 in (47.3 x 52.8 x 71 cm)
  • 180L with High Heat Decontamination: 18.7 x 20.8 x 28.1 in (47.3 x 52.8 x 71 cm)
• Weight:
  • 45L: 77 lbs (35 kg)
  • 180L: 172 lbs (78 kg)
  • 180L with High Heat Decontamination: 172 lbs (78 kg)

Ordering Information:

• H3565-45: Benchmark SureTherm™ CO2 Incubator, 45L, with two shelves
• H3565-180: Benchmark SureTherm™ CO2 Incubator, 180L, with three shelves
• H3565-180HD: Benchmark SureTherm™ CO2 Incubator, 180L, with High Heat Decontamination
• H3565-180HD02: Benchmark SureTherm™ CO2 Incubator, 180L, with O2 Control and Heat Decontamination

Optional Accessories:

• H3565-45-LCI: IncuView™ LCI Integrated Shelf (for 45L incubator)
• H3565-180-LCI: IncuView™ LCI Integrated Shelf (for 180L incubator)
• H3550-45-SH: Additional Shelf for 45L incubator
• H3550-180-SH: Additional Shelf for 180L incubator
• H3700-REG: Regulator (optional for connecting to CO2 source)
• HT4001: Orbi-Shaker™ CO2, motor-controlled orbital shaker (available for 45L and 180L models)

Microscope Specifications (for IncuView™ LCI):

• Magnification: 200x
• Field of View: 1 x 1 mm
• Resolution: 2 µm
• Illumination: Top and bottom
• Image Format: 5MP (2592 x 1944 pixels)
• Video Format: MPEG-4 up to 1296 x 972 10FPS
• Optics: Brightfield or darkfield
• Sensor: CMOS

Ordering Information for IncuView™ LCI:

• H3565-45-LCI: IncuView™ LCI Integrated Shelf for 45L incubator
• H3565-180-LCI: IncuView™ LCI Integrated Shelf for 180L incubator

Conclusion: The Benchmark SureTherm™ CO2 Incubators provide unparalleled performance and safety for cell culture research, offering precise temperature and CO2 control, live cell imaging capabilities, and advanced features like high heat decontamination and oxygen control. These incubators are perfect for researchers looking to optimize growth conditions while maintaining a contamination-free environment.
