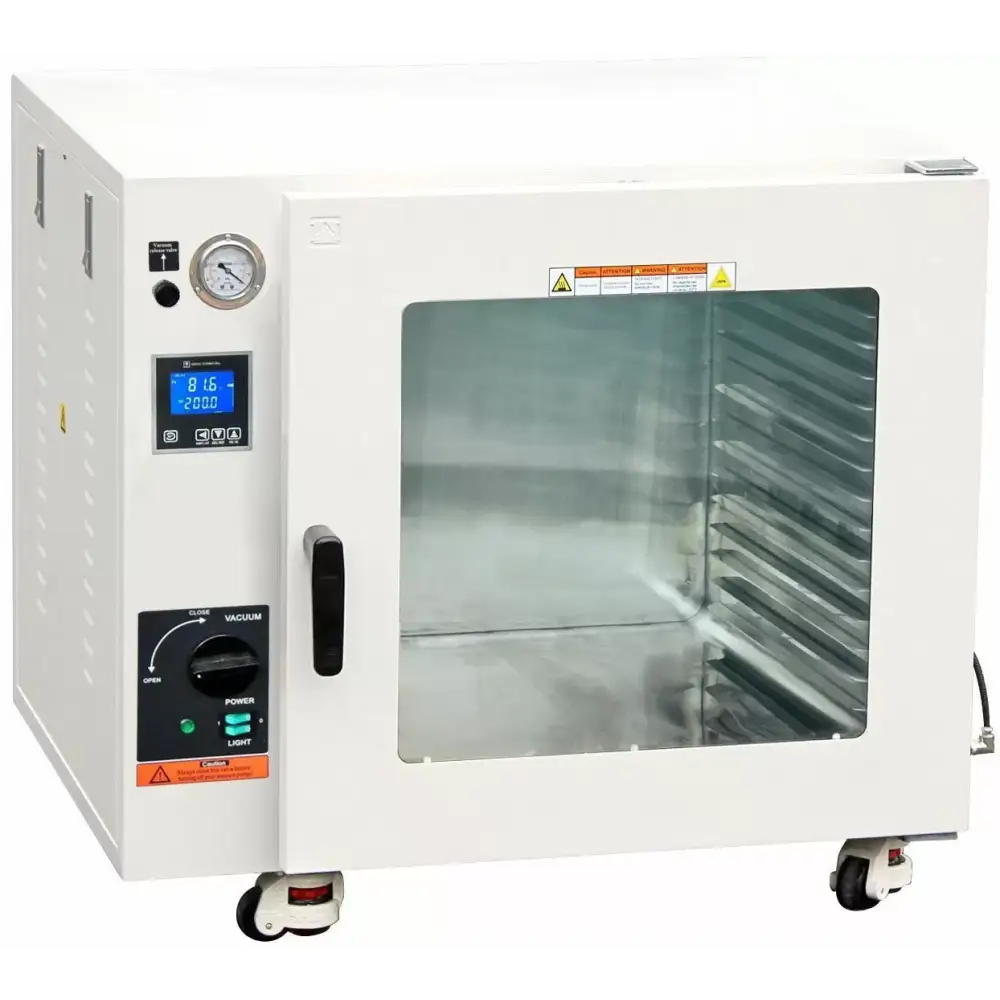

ECO 150C 14 Shelf Max 5 CF Vacuum Oven w/ LED Lights

The ECO 150C Vacuum Oven with a 14-shelf capacity offers an expansive 5.0 cubic feet of drying and curing space, making it a powerful and versatile tool for laboratories and industrial applications that require precise temperature control in a vacuum environment. Equipped with advanced temperature regulation, enhanced safety features, and energy-efficient design, this oven is ideal for high-quality processing of heat-sensitive materials like oil extracts, powders, and pastes.

Key Features:

• Large Capacity:

  • Maximum 14 shelves (standard 7 shelves included) provide 39.3 sq ft (5,660 sq in) of total surface area, making it perfect for large-scale operations or multiple samples.
  • Shelf Dimensions: 19.25" x 21" x 0.5" (WxDxH), with a shelf capacity of 20 lbs per shelf.

• Efficient Heating:

  • Three-sided heating (left: 800W, right: 800W, bottom: 1,400W) provides even, rapid heat distribution for efficient drying and curing.
  • The 3rd generation low proportional gain temperature controller ensures the oven temperature remains within ±1°F (or ±0.5°C) for precise temperature control.
  • Temperature range: ambient to 150°C (302°F) with uniformity of ±7% of the setpoint.

• Vacuum Environment:

  • Ultimate vacuum level: Better than 500 microns/millitorrs.
  • Ideal for degas/purge processes, heat-sensitive material processing, and drying of powders or pastes.
  • KF25 vacuum port and vent port with KF25 flange for easy connection to external vacuum pumps (sold separately).

• Durability and Safety:

  • Oil-filled mechanical vacuum gauge provides accurate readings and extends the lifespan of the gauge.
  • Dual-layer observation window with 3/4" tempered safety glass allows safe, easy monitoring of materials inside the chamber.
  • Built-in alarm system alerts when the oven is shut down due to temperature anomalies, enhancing safety.
  • Thermal insulation (3") prevents heat loss and keeps the outer surface cool.

• Energy Efficiency:

  • Efficient heating system for fast, uniform temperature control and low energy consumption.
  • Easy-to-clean stainless steel interior for durability and low maintenance.

• Convenience:

  • LED in-door lights enhance visibility inside the oven.
  • Swivel casters with leveling feet allow easy movement and stable setup in any lab or industrial setting.

• Warranty & Support:

  • 1-year warranty with lifetime US-based support for parts and service.
  • Phone and email assistance from an Ai support engineer available within 30 minutes.

Specifications:

• Electrical Requirements:

  • 110V or 220V ±10% 50/60Hz 1-PH, 3,000 watts

• Chamber:

  • Size: 19.75" L x 21.5" W x 19.75" H
  • Material: Stainless steel
  • Capacity: 5.0 cubic feet

• Heater:

  • Power: 800W (left and right sides), 1,400W (bottom)
  • Heating Style: 3-sided for even heat distribution.

• Temperature Control:

  • Controller: Low proportional gain, microcomputer PID-controlled
  • Temperature Range: Ambient to 150°C (302°F)
  • Uniformity: ±7% of setpoint
  • Timer: Dwelling timer range of 1 to 9999 minutes

• Vacuum:

  • Ultimate Vacuum Level: Better than 500 microns/millitorrs
  • Mechanical Gauge Range: 0 to 30 inch mercury
  • Vacuum Port: KF25 flange (x1)
  • Vent Port: KF25 flange (x1)
  • Vacuum Pump: Sold separately

• Shelves:

  • Material: Aluminum (pan-style)
  • Shelf Dimensions: 19.25" x 21" x 0.5" (WxDxH)
  • Maximum Shelf Capacity: 14 shelves
  • Total Surface Area: 39.3 sq ft (5,660 sq in) with all 14 shelves
  • Distance Between Shelves: 1.25"

• Safety Features:

  • Built-in Circuit Breaker
  • Overheat Shutoff Protection
  • Secondary Over-temp Protection Dial
  • Alarm for Temperature Anomalies

• Weight:

  • Unit: 390 lbs
  • Shipping: 620 lbs

• Dimensions:

  • Unit: 32.25" W x 28" D x 30" H
  • Shipping: 41" W x 40" D x 41" H

• Warranty:

  • 1-year warranty

• Compliance:

  • ISO 9001:2000
  • ISO 12100-1:2003, ISO 12100-2:2003
  • EN1050:1996, EN294:1992, EN60204-1:2006
  • CE Certified

Conclusion:

The ECO 150C 14-Shelf Vacuum Oven offers a large-capacity, high-performance solution for curing, degassing, drying, and processing heat-sensitive materials. With 14 shelves, 3-sided heating, and advanced vacuum and temperature control systems, this oven delivers fast, uniform results with minimal processing time. The easy-to-use controls, advanced safety features, and durable construction make this vacuum oven an ideal choice for laboratories and industries focused on high-quality product production with a fast turnaround.
