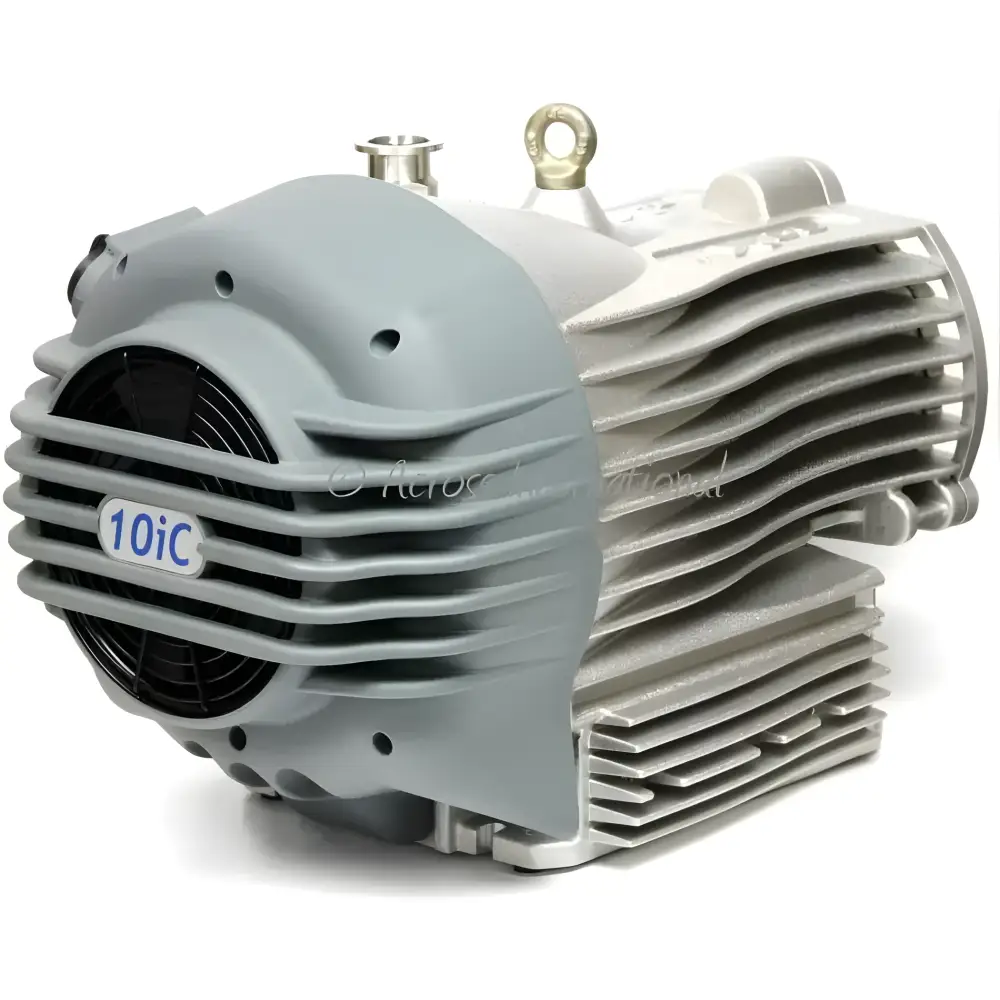

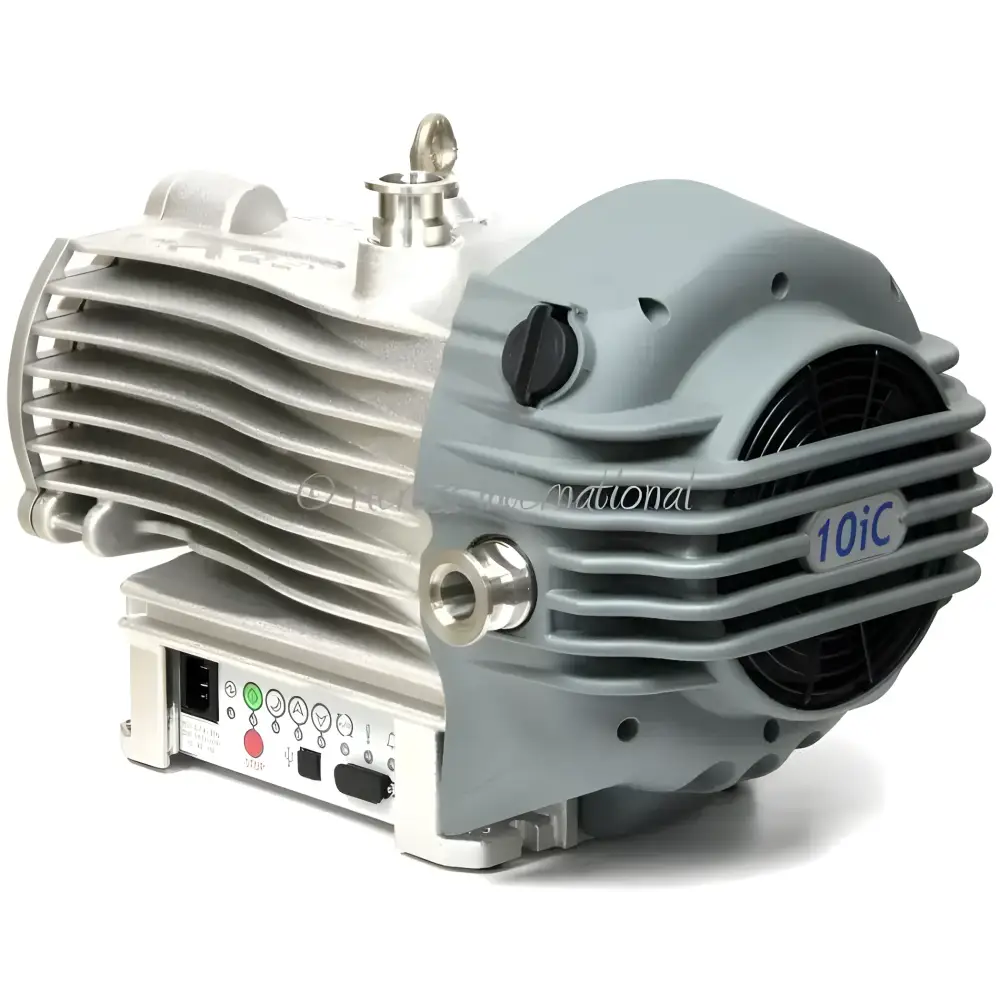

Edwards nXDS10iC 7.5 cfm Chemical-Resistant Dry Scroll Pump

The Edwards nXDS10iC Dry Scroll Pump is a highly advanced, chemically resistant vacuum pump designed for vapor handling and applications involving corrosive substances. This modified version of the nXDS pump incorporates Chemraz internal valves and stainless steel fittings to provide superior protection from the pumped media, making it ideal for challenging processes. With an emphasis on high-performance, minimal maintenance, and low operational costs, the nXDS10iC is the preferred choice for cutting-edge technologies.

Key Features:

• Chemical & Corrosion Resistant: Equipped with Chemraz internal valves and stainless steel fittings, offering enhanced protection for pumping corrosive substances.
• Oil-Free Design: The nXDS10iC is completely dry, with bearings isolated from the vacuum space, ensuring no contamination from lubricants.
• Extended Service Life: Features advanced tip seal technology, which significantly extends the time between seal replacements, reducing maintenance costs.
• Quiet Operation: The nXDS10iC operates up to 20 times quieter than traditional pumps, making it ideal for noise-sensitive environments.
• Energy Efficient: With an integrated inverter drive, it optimizes pumping performance while minimizing power consumption.
• Simple Serviceability: The design allows for easy field service with minimal special tools, ensuring quick maintenance and maximum uptime.
• Advanced Control: Offers various traditional, analogue, and digital control methods, with the ability to remotely monitor and control the pump via USB, RS232, or RS485 interfaces.
• Long Service Interval: With up to five-year service intervals, this pump offers a low cost of ownership.

Applications:

• General Clean Pumping: Ideal for laboratory and industrial clean applications.
• Scanning Electron Microscopes (SEM): Provides clean, reliable vacuum for SEM applications.
• High Energy Physics: Suitable for beam lines and high-energy physics environments.
• Backing Turbo Pumps: Works effectively as a backing pump for turbo pumps in high vacuum systems.
• Centrifuges & Ultra-High Speed Applications: Supports vacuum environments for fast spinning centrifuges.
• Coating & Cryogenics: Essential for vacuum coating processes and cryogenic applications.
• Degassing and Curing: Used in oil and resin degassing/curing processes.
• Freeze Drying & Distillation: Perfect for freeze drying, distillation, and solvent recovery.
• Laboratory Bench Top Vacuum: Provides reliable vacuum for a variety of lab-based applications.
• Laser & Gas Recovery: Ideal for laser systems, gas recovery, and recirculation.
• Leak Detection & Helium Systems: Suitable for leak detectors and helium recovery systems.
• Research and Development: Used in a wide range of research, development, and industrial applications.

The nXDS10iC is supplied with a one-year warranty and includes free KF25 flexible stainless steel bellow, clamps, and centering rings (valued at $219). Edwards offers comprehensive technical support, ensuring peace of mind and optimal performance for your applications.
