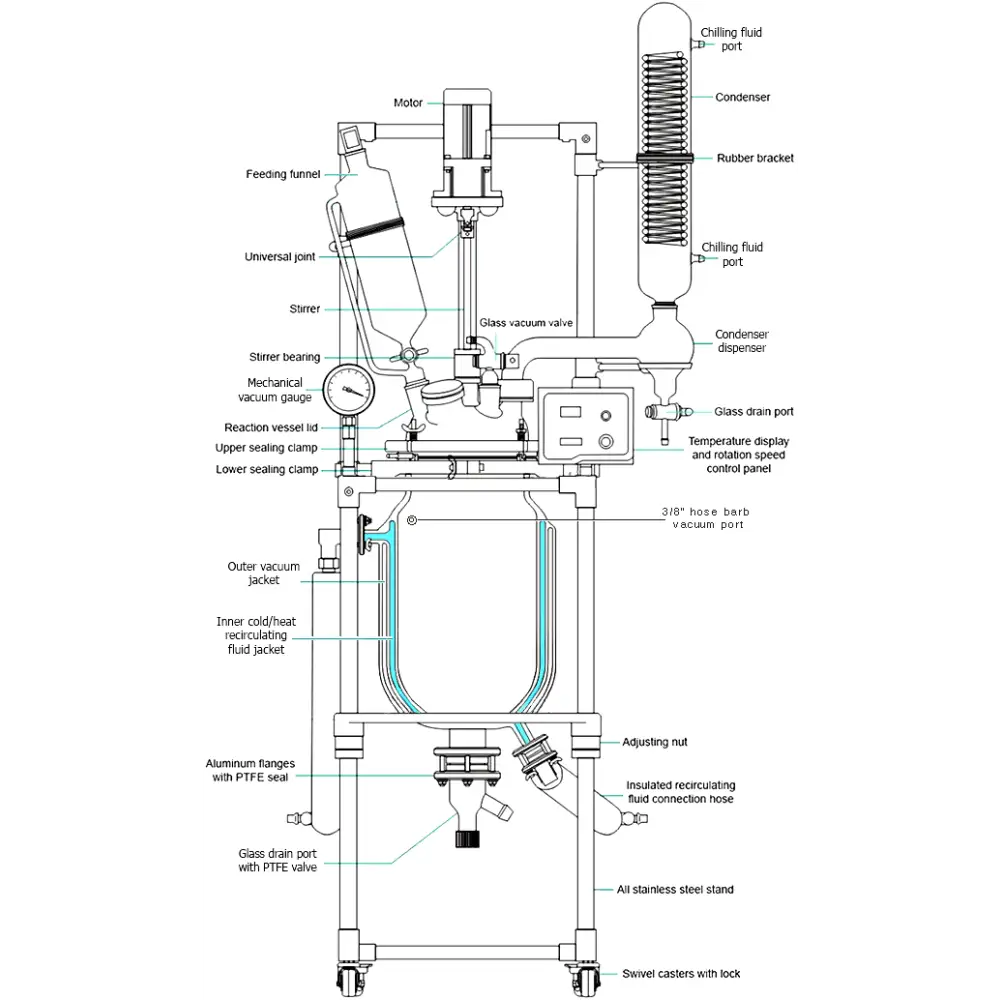

Glass Reactor Ai 10L Single or Dual Jacketed Systems

The Ai R-Series 10L Glass Reactors provide reliable, efficient, and versatile solutions for controlled synthetic reactions. Designed to handle a variety of materials, these systems combine precision, durability, and ease of operation, making them ideal for laboratory and industrial applications.

Key Features

1. Superior Jacketed Design

   • Single jacketed model: Provides consistent temperature control for your reactions.
   • Dual jacketed model: Allows vacuum control in the outer jacket, enhancing insulation and preventing frost build-up for clear visibility into the vessel.

2. Thermo Insulation Jacket (Free with purchase)

   • Helps reduce utility costs and extends the life of chillers.
   • Adjustable drawstrings for a snug fit and easy access with an open/close viewing window.

3. Premium Materials and Construction

   • Food-grade borosilicate glass 3.3: Resistant to heat, cold, and chemical corrosion.
   • Solvent-resistant PTFE seals: Long-lasting and reliable.

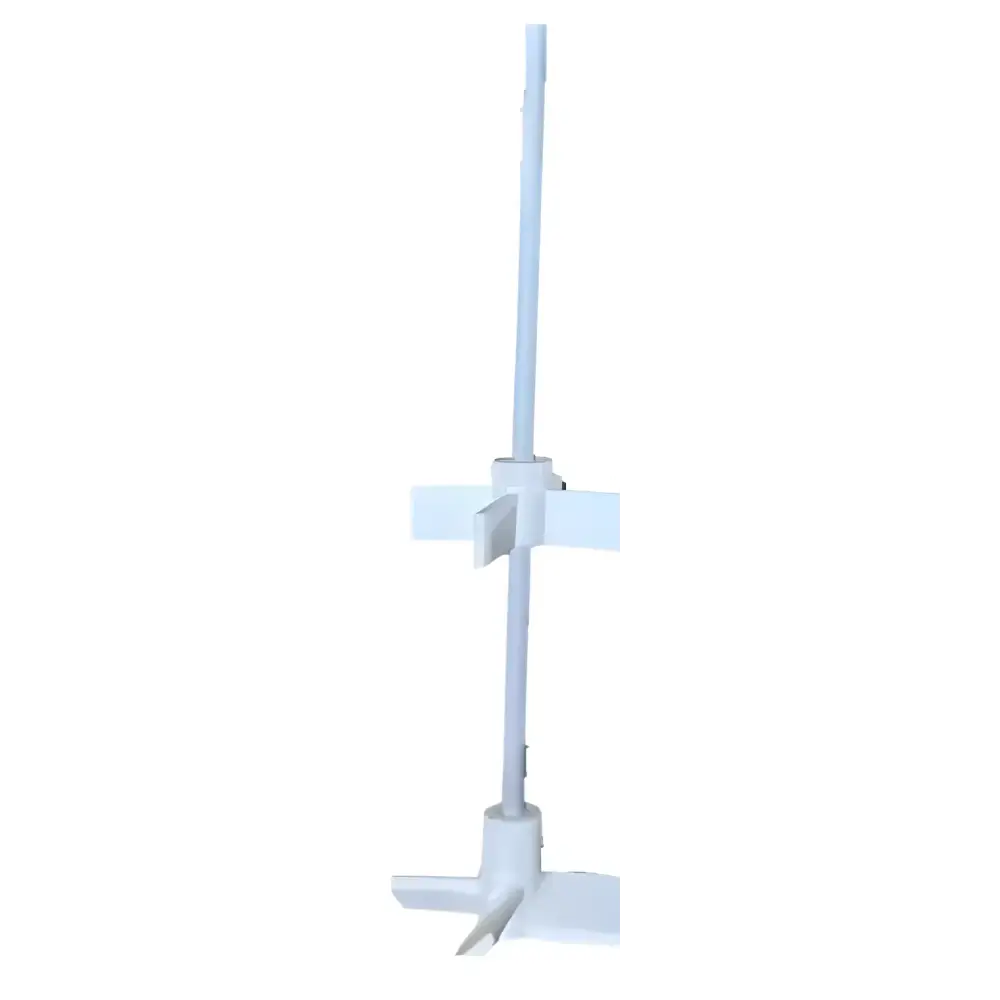

   • Stainless steel reinforced PTFE stirrer with anchored agitator for a wide range of viscosities.

4. Advanced Performance Features

   • Adjustable stirring speeds from 50–500 RPM with a digital variable frequency controller.
   • Large cooling surface on the built-in condenser for superior condensation performance.
   • Wide operational temperature range: -110°F to 400°F.

5. Safety and Mobility

   • Heavy-duty stainless steel frame with lockable casters for stability and mobility.
   • Clear safety precautions to prevent accidents involving rotating parts or reactive materials.

6. User-Friendly Design

   • Constant pressure feeding funnel for controlled material addition.
   • Digital displays for speed and temperature monitoring.
   • Large, flush-sealed drain valve for efficient cleaning and maintenance.

7. Warranty and Support

   • One-year warranty and lifetime U.S.-based service and support.

Specifications

Applications

• Chemical synthesis and reactions
• Pharmaceuticals and material research
• Essential oil extraction
• Nanotechnology and material development

The Ai 10L Glass Reactor System offers precision, safety, and ease of use, making it the ideal choice for professional laboratories and pilot-scale production.
