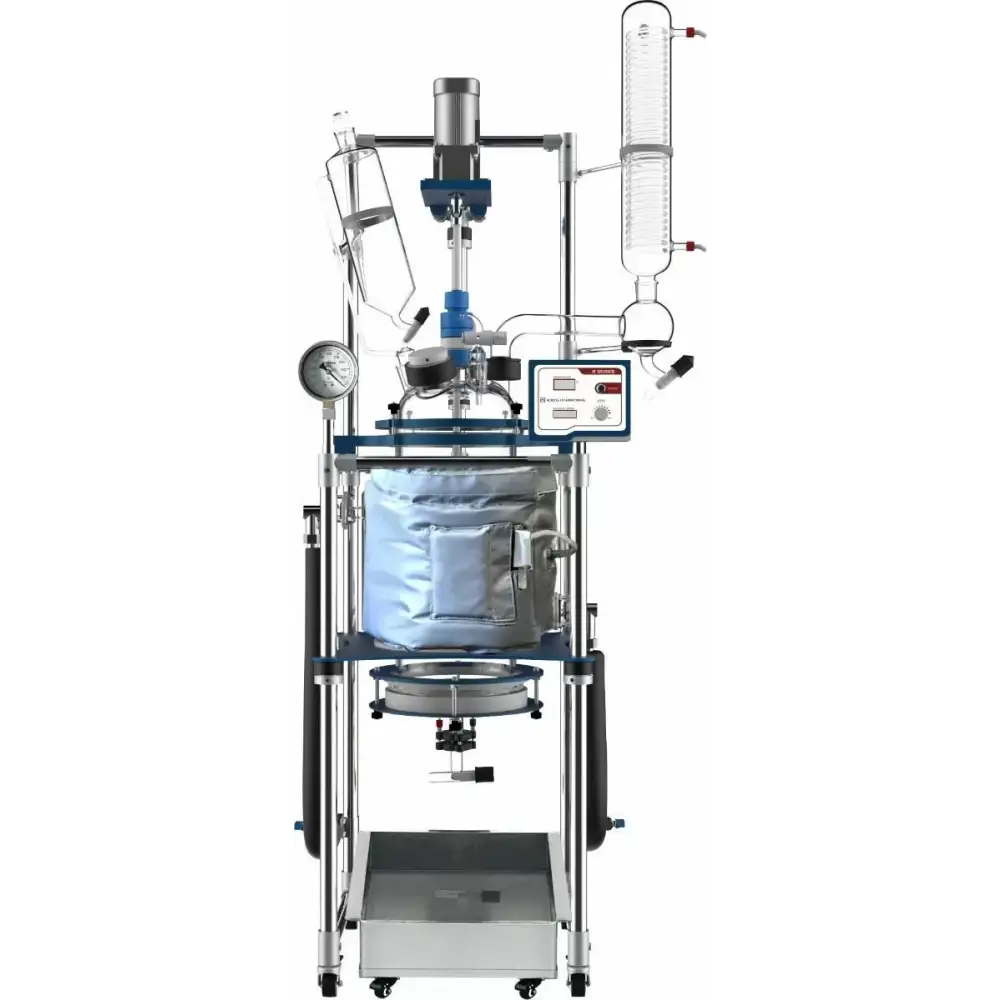

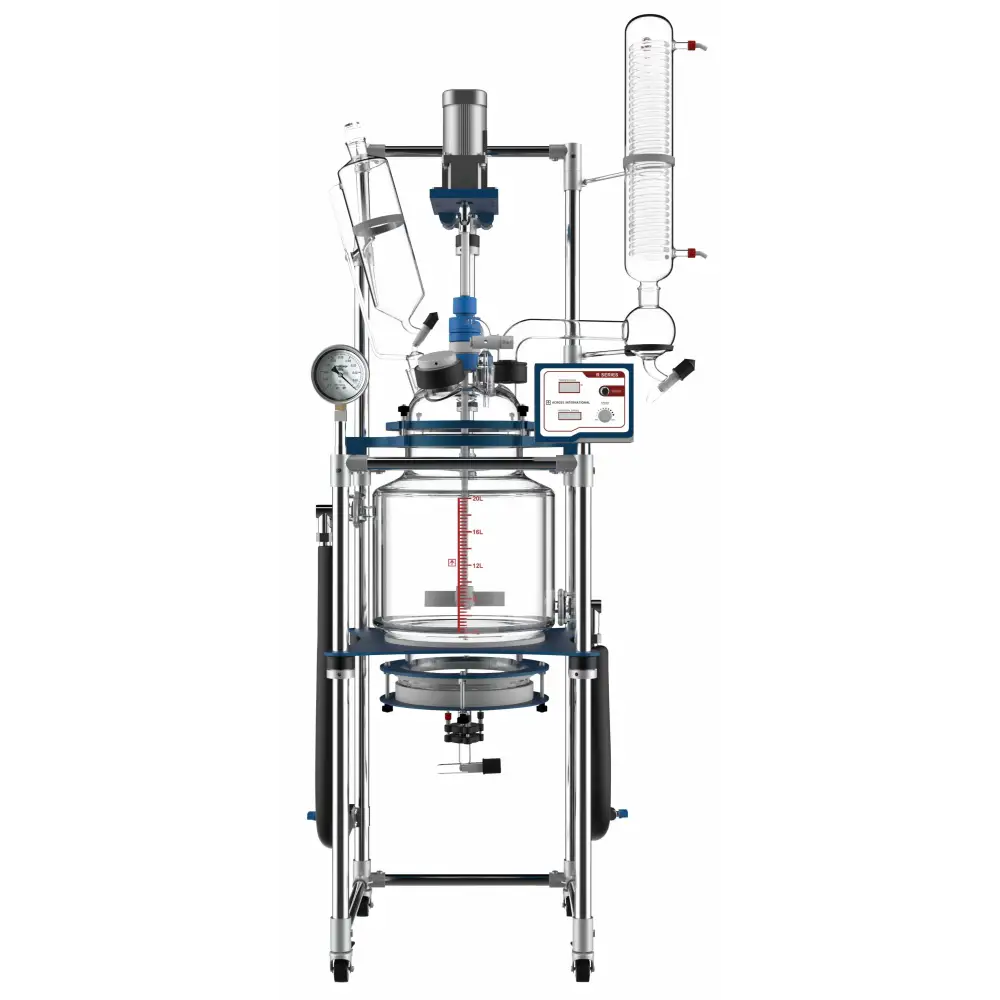

Glass Reactor Ai 20L Single or Dual Jacketed Filter Systems
Overview
Ai R-series jacketed glass filter reactors are designed for the synthetic reaction of various materials under controlled temperature and vacuum environments. These reactors are ideal for single or multi-step reactions and filtration in the same vessel, minimizing material transfers and reducing losses. The modular design allows easy cleaning and replacement of the filter paper.
Features
-
ETL tested to UL and CSA standards, CE (optional)
-
Filter Reactor Design:
The filter reactor allows for both reactions and filtration in the same vessel, eliminating material transfers and reducing losses.
-

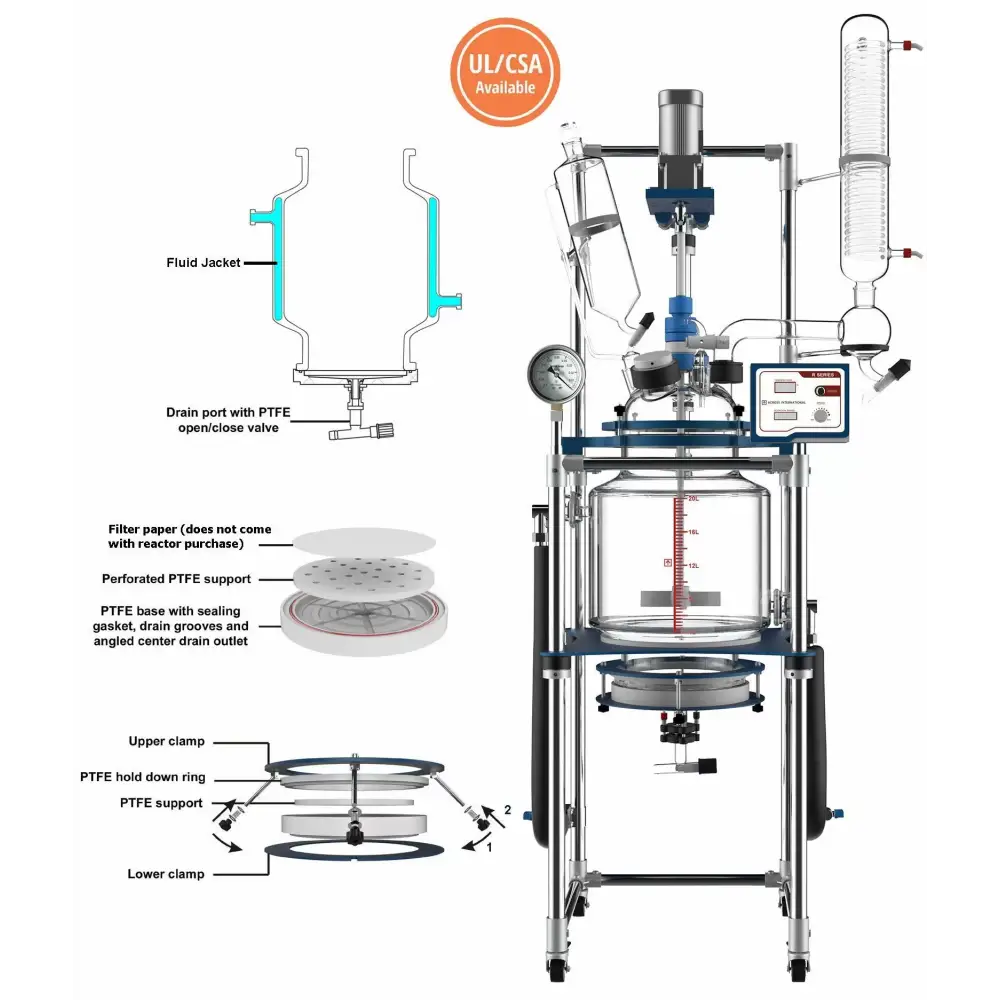

Modular Filter Assembly:
Easily detachable for cleaning and filter paper replacement.
-
Efficient Drainage:
Features a center downward drain port with angled drain grooves for easy material drainage.
-
Solvent-resistant PTFE Components:
Ensures long-lasting durability and reliability during operation.
-
All Glassware is Handmade:
Constructed from food-grade, high borosilicate glass 3.3, resistant to heat, cold, and corrosion.
-
Adjustable Stirring Speed:
Allows for both high-torque stirring and high-speed agitation.
Digital controller with variable frequency drive (50 to 500 rpm).
-
Temperature Range:
Operates from -110°F to 400°F, providing versatility for various reactions.
-
Large Condenser Surface:
Exceptional condensation performance.
-
Stainless Steel Reinforced PTFE Stirrer:
Suitable for a wide range of viscous materials.
-
Heavy Duty Stainless Steel Framework:
With lockable casters for mobility and stability. The entire support and glass vessel come pre-assembled.
-
Warranty and Support:
Comes with a 1-year warranty and lifetime US-based parts, service, and support.
Specifications
| Feature |
R10 (10L) |
R20 (20L) |
R50 (50L) |
R100 (100L) |
| Electrical Requirements |
110V 60Hz or 220V 50/60Hz |
110V 60Hz or 220V 50/60Hz |
110V 60Hz or 220V 50/60Hz |
110V 60Hz or 220V 50/60Hz |
| Power |
90W |
140W |
250W |
630W |
| Glass Vessel Capacity |
2.6 gallons (10L) |
5.3 gallons (20L) |
13 gallons (50L) |
26 gallons (100L) |
| Cooling/Heating Jacket Capacity |
0.8 gallons (3L) |
1.6 gallons (6L) |
4.2 gallons (16L) |
8 gallons (30L) |
| Filter Plate |
9 inches (OD) |
9 inches (OD) |
9 inches (OD) |
9 inches (OD) |
| Size of Holes (PTFE Filter Support) |
8 mm |
8 mm |
8 mm |
8 mm |
| Rotation Speed |
50 to 500 rpm |
50 to 500 rpm |
50 to 500 rpm |
50 to 500 rpm |
| Maximum Jacket Pressure |
4.4 psi |
4.4 psi |
4.4 psi |
4.4 psi |
| Drain Port (ID) |
14 mm |
14 mm |
14 mm |
14 mm |
| Vacuum Level |
20 torr |
20 torr |
20 torr |
20 torr |
| Vacuum Sealing |
Glass and PTFE |
Glass and PTFE |
Glass and PTFE |
Glass and PTFE |
| Temperature Range |
-110°F to 400°F |
-110°F to 400°F |
-110°F to 400°F |
-110°F to 400°F |
| Shipping Weight |
240 lbs |
262 lbs |
330 lbs |
390 lbs |
| Compliance |
UL/CSA, CE (optional) |
UL/CSA, CE (optional) |
UL/CSA, CE (optional) |
UL/CSA, CE (optional) |
Safety and Usage Considerations
- Always exercise caution when operating glass reactors to avoid injury or damage to the apparatus.
- Protective equipment such as gloves and safety goggles should be worn.
- Ensure that all seals and gaskets are intact and that the reactor is in good working condition before each use.
- Be mindful of the high-pressure conditions and the potential for chemical reactions under vacuum, especially when working with volatile or air-reactive materials.
This reactor system is ideal for chemical synthesis, extraction, and filtration, offering high efficiency and safety for demanding processes.
