Hand-Held Homogenizer Accessories

Benchmark D1000 Handheld Homogenizer

The D1000 Handheld Homogenizer is a powerful and efficient device designed for rapid homogenization, emulsification, and suspension of biological samples. Ideal for use with microtubes and larger samples, the D1000 can process volumes from 0.1 ml to 250 ml, depending on the generator probe used. This versatile homogenizer is suitable for a wide range of laboratory applications, including DNA/RNA extraction, cell lysis, and protein extraction.

Key Features:

• Efficient Homogenization: The D1000 works by drawing the sample into the generator probe with the variable speed rotor and forcing it through the slots in the stator, achieving mechanical shearing. This process is repeated multiple times to thoroughly homogenize the sample in under 30 seconds.
• Wide Volume Range: The D1000 is capable of processing volumes from 0.1 ml to 250 ml, making it ideal for small and large sample preparation. The generator probes available in 5mm and 7mm diameters ensure versatility for different sample sizes.
• Powerful Motor: The D1000 is equipped with a 130W motor that drives the rotor at speeds ranging from 8,500 to 30,000 rpm. This powerful motor ensures thorough and consistent sample processing.
• Ergonomic Design: The homogenizer features a slim, ergonomic handle that makes it comfortable to use, even for extended periods. The lightweight design (0.6 kg) reduces hand fatigue.
• Adjustable Speed: Speed is adjustable in six steps, allowing you to tailor the homogenization process to the specific needs of your sample. The separate on/off switch enables easy operation, ensuring that the device can be left on at the appropriate setting for continuous use.
• Easy Sterilization: All generator probes are made of stainless steel and are autoclave-safe for easy cleaning and sterilization after use.

Technical Specifications:

• Speed Range: 8,500 to 30,000 rpm
• Capacity: 0.1 ml to 250 ml (depending on the generator probe)
• Noise Level: <70 dB
• Operating Temperature Range: 4°C to 65°C
• Dimensions: 1.8 x 2.3 x 9 in (without generator probe)
• Weight: 0.6 kg (1.35 lbs)
• Electrical: 115V, 60Hz, or 230V, 50Hz
• Warranty: 2 years

Generator Probes:

• D1000-M5: 5mm generator probe (included)
• D1000-M7: 7mm generator probe (included)
• Optional Generator Probes:
  • D1000-M10: 10mm x 115mm saw tooth, for 15 and 50 ml tubes
  • D1000-M14: 14 x 130mm saw tooth, for 50 ml samples
  • D1000-M5: 5 x 50mm flat bottom, for microtubes
  • D1000-M7: 7 x 50mm, saw tooth, for microtubes
  • D1000-M14: 10 x 50mm, saw tooth, for larger volumes

Ordering Information:

• D1000: D1000 Handheld Homogenizer with 5mm (flat bottom) generator probe and 7mm (saw tooth) generator probe

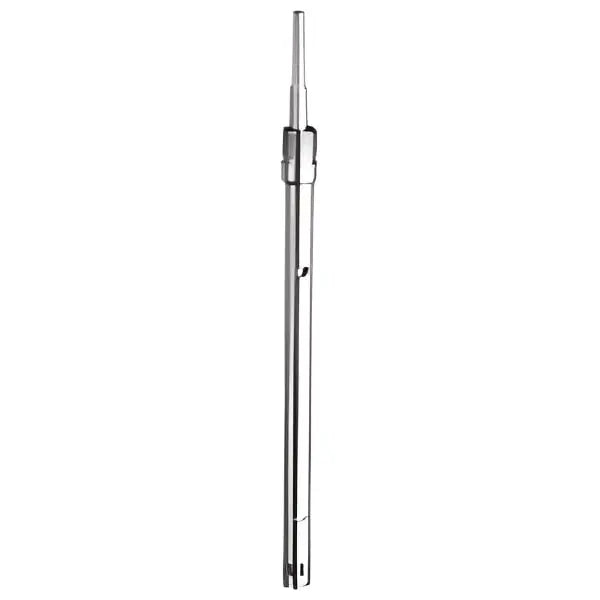

• D1000-M10: Optional 10mm x 115mm saw tooth probe, for 15 ml and 50 ml tubes
• D1000-M14: Optional 14 x 130mm saw tooth probe, for 50 ml samples
• D1000-M5: Optional 5 x 50mm flat bottom probe, for microtubes
• D1000-M7: Optional 7 x 50mm saw tooth probe, for microtubes
• D1000-S: Optional stand for the D1000 Homogenizer

Conclusion: The D1000 Handheld Homogenizer is a versatile and powerful tool for a variety of laboratory homogenization tasks. With its ability to process a wide range of sample volumes, adjustable speed settings, and robust design, the D1000 provides reliable and efficient performance for researchers working with DNA/RNA, cells, proteins, and more. The ergonomic design ensures ease of use, while the stainless steel generator probes allow for easy cleaning and sterilization.
