High Capacity Magnetic Stirrers Accessories

Benchmark HCS Series High-Capacity Magnetic Stirrers

The Benchmark HCS Series Magnetic Stirrers are designed for large-scale, high-volume mixing applications, ideal for laboratories and industrial settings that require stirring of volumes up to 150 liters. Available in two models—HCS-50 for up to 50L and HCS-150 for up to 150L—these stirrers provide robust, reliable, and efficient performance for both low and high-viscosity samples.

Key Features:

• High Capacity Stirring: The HCS Series can stir volumes ranging from 50L to 150L, making it suitable for large-scale applications such as mixing media, chemicals, or industrial liquids.
• Chemically Resistant Ceramic Surface: The stirrers feature a white ceramic top plate that is both chemically resistant and durable, preventing leaks and spills, and ensuring a long operational life.
• Powerful Motor Drive: Equipped with a powerful motor drive system, the HCS stirrers efficiently mix large volumes of liquid, ensuring thorough mixing even in viscous samples.
• Digital Speed and Time Control: The stirring speed can be precisely adjusted in increments of 1 rpm from 50 to 1500 rpm (or 50 to 1200 rpm for the HCS-150 model). Additionally, the mixing time can be set anywhere from 1 second to 9 hours, or continuously, allowing for flexibility in your processes.
• Large Digital Display: The HCS stirrers feature a clear, easy-to-read digital display that shows both speed and time settings, enabling precise control over the mixing process.
• Optional Accessories: The stirrers can be paired with optional stir bars (100mm for the HCS-50 and 150mm for the HCS-150), further enhancing their performance.

Technical Specifications:

• Model:
  • HCS-50L: Suitable for volumes up to 50L
  • HCS-150L: Suitable for volumes up to 150L
• Speed Range:
  • HCS-50L: 50 to 1500 rpm
  • HCS-150L: 50 to 1200 rpm
• Maximum Stir Capacity:
  • HCS-50L: 50 liters
  • HCS-150L: 150 liters
• Stir Bar Max Length:
  • HCS-50L: 100 mm
  • HCS-150L: 150 mm
• Platform Dimensions:
  • HCS-50L: 11.8 x 11.8 in / 30 x 30 cm
  • HCS-150L: 19.7 x 19.7 in / 50 x 50 cm
• External Dimensions:
  • HCS-50L: 16.7 x 11.8 x 8.3 in / 42.4 x 29.9 x 21.1 cm
  • HCS-150L: 24.4 x 19.7 x 7.6 in / 62 x 50 x 19.3 cm
• Weight:
  • HCS-50L: 11 lbs / 5 kg
  • HCS-150L: 30.9 lbs / 14 kg
• Power Consumption:
  • HCS-50L: 30W
  • HCS-150L: 80W
• Timer Range: 1 second to 9 hours, continuous
• Electrical: 120V or 230V, 50-60Hz
• Warranty: 2 years

Ordering Information:

• IPS7101-50: Benchmark HCS-50 High-Capacity Magnetic Stirrer, 50L
• IPS7101-150: Benchmark HCS-150 High-Capacity Magnetic Stirrer, 150L
• Optional Accessories:

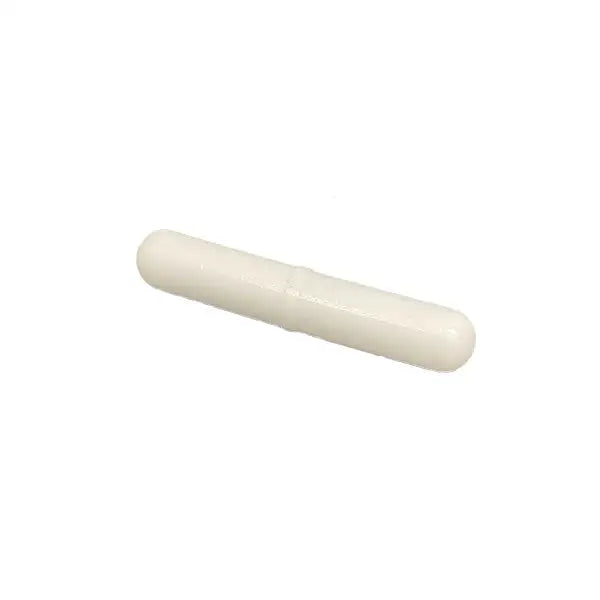

  • IPS7101-BAR100: Stir Bar, 100mm
  • IPS7101-BAR150: Stir Bar, 150mm

The Benchmark HCS Series Magnetic Stirrers are ideal for large-scale mixing, offering precise control and reliability for applications that require mixing volumes up to 150 liters. Whether used in laboratories or industrial processes, these stirrers provide a durable, efficient, and versatile solution for high-volume mixing.
