HUBER -20C to 100C Minichiller 600-H Chiller/Heater OLED Display

The Huber Minichiller is a compact and environmentally friendly cooling solution designed for laboratory applications, offering high efficiency and reliable performance. It provides precise temperature control and stable operating conditions, making it an excellent choice for cooling reactor blocks, vacuum pumps, rotary evaporators, and heat exchangers. The Minichiller's compact size and natural refrigerants ensure both cost-effectiveness and minimal environmental impact.

Key Features:

• Environmentally-friendly, cost-effective cooling solution
• High efficiency with precise temperature control
• Simple operation with intuitive menu navigation
• Durable stainless steel construction for robustness
• Continuous operation with built-in warning functions
• Easy to fill and empty, with illuminated fill level indicator
• Large OLED display for clear temperature readings

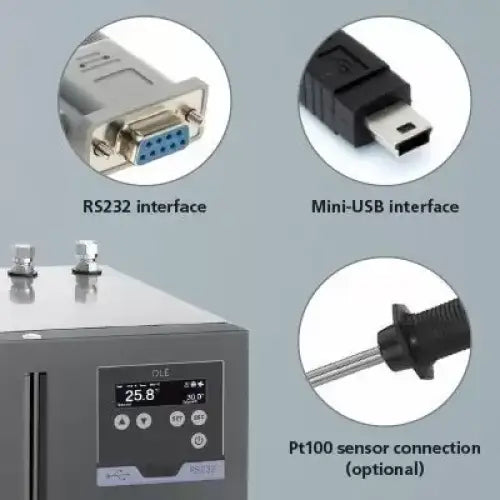

• USB and RS232 interfaces for digital connectivity
• Natural refrigerant (R290) for reduced environmental impact

Specifications:

• Temperature range: -20°C to 100°C
• Temperature stability: ±0.5°C
• Display: OLED, with 0.1°C resolution
• Heating capacity: 2 kW
• Cooling capacity: 0.6 kW at 15°C, 0.35 kW at -10°C, 0.15 kW at -20°C
• Cooling system: Air-cooled
• Refrigerant: R290 (0.085 kg)
• Circulation pump capacity: Max 24 L/min (0.7 bar) for pressure, 18 L/min (0.4 bar) for suction
• Ambient temperature: 5°C to 40°C
• Noise level: 56 dB(A)
• Power supply: 230V, 50/60Hz, Max current 12A
• Dimensions: 280 x 490 x 424 mm
• Weight: 35 kg

The Huber Minichiller is suitable for continuous operation in ambient temperatures up to 40°C and offers substantial savings in water usage, with the potential to save up to 48,000 liters of water in a working week. Its small footprint makes it easy to incorporate into any laboratory setting, ensuring efficient and reliable cooling for a wide range of applications.
