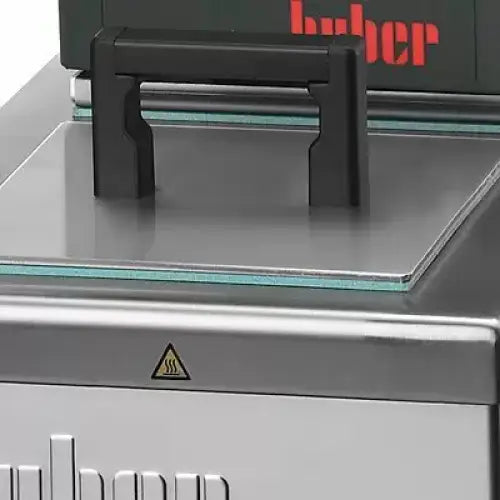

HUBER KISS 205B 200°C 5L Capacity Heating Circulator

The Huber KISS 205B Heating Bath Circulator offers a blend of modern technology, sleek design, and user-friendly functionality. Tailored for research and industrial tasks, it is ideal for routine temperature control applications such as sample thermoregulation, materials testing, and quality assurance.

Key Features:

• KISS Controller: State-of-the-art control with intuitive operation via a bright OLED display that shows setpoint, Tmin, Tmax, and actual temperatures simultaneously.
• Precision Temperature Control: Temperature range from (-30)45...200°C with a stability of ±0.05°C ensures reliability for sensitive tasks.
• Versatile Operation: Supports both internal thermoregulation and external applications, enhancing its adaptability.
• Robust Safety: Equipped with overtemperature and low-level protection in compliance with Safety Class III/FL (DIN 12876).
• Powerful Circulation Pump: Features a 14 lpm pressure pump and 10.5 lpm suction pump, providing optimal circulation and bath homogeneity.
• Autostart Function: Automatically resumes operation after power interruptions for convenience.
• Flexible Interfaces: Includes USB and RS232 ports for seamless data communication.

Specifications:

• Heating Capacity: 1.5–2.1 kW for rapid temperature adjustments.
• Bath Volume: 5 liters (1.32 gallons) for ample capacity.
• Pump Performance:
  • Pressure Pump: 14 lpm at 0.25 bar.
  • Suction Pump: 10.5 lpm at 0.17 bar.
• Temperature Display: Bright OLED for clear readability.
• Dimensions: 178 x 337 x 355 mm (7.01 x 13.27 x 13.98 inches).
• Weight: 9 kg (19.84 lbs).
• Operating Environment: Ambient temperature range of 5...40°C.

Additional Options:

• Pt100 Sensor Connection (#10519, factory-fitted): Displays external process temperatures (not for control; additional charge).
• Available in grey, blue, or red finishes.

The Huber KISS 205B is an efficient and reliable solution for diverse temperature control requirements, combining precision, safety, and ease of use in a compact design. Its powerful heating and pumping capabilities make it a top choice for laboratories and industrial settings.
