HUBER Unistat 905 -90°C to 250°C with Pilot ONE

The Huber Unistat 905 is a highly efficient and precise temperature control system, designed to meet the rigorous demands of both industrial and laboratory environments. It features a range of cutting-edge technologies and superior functionality for optimal performance in various applications.

Key Features:

• Precise Temperature Control: Ensures reproducible results with a temperature stability of 0.01°C.
• Rapid Heating and Cooling: Offers fast heating and cooling rates to improve operational efficiency.
• Wide Temperature Range: Provides temperature control from -90°C to 250°C without the need for fluid changes.

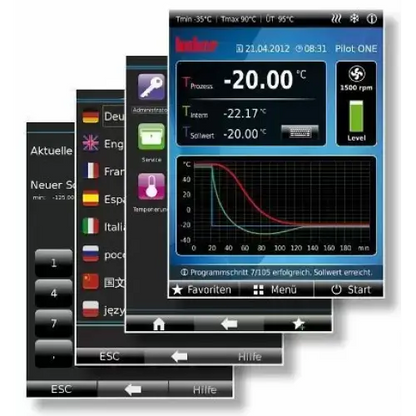

• Pilot ONE Controller: A 5.7" touchscreen interface with intuitive navigation and graphic temperature display for easy monitoring.
• Self-Optimizing Temperature Control: The True Adaptive Control (TAC) ensures optimal temperature regulation and improved accuracy.
• Efficient Circulation Pump: Ensures maximum heat transfer with a self-regulating pump for optimal flow and circulation.
• Versatile Communication Options: Includes USB (Host and Device), Ethernet, and RS232 interfaces for data transfer, remote control, and easy integration into existing systems.
• Energy-Efficient: Designed to minimize operational costs while maintaining high performance and precision.
• Proven for Industrial Use: Reliable functionality and safety features make it suitable for continuous, unsupervised operation in demanding environments.

Specifications:

• Temperature Range: -90°C to 250°C
• Temperature Stability: 0.01°C
• Heating Capacity: 6 kW
• Cooling Capacity:
  • At 250°C: 4 kW
  • At 0°C: 3.6 kW
  • At -80°C: 0.7 kW
• Cooling Method: Air-cooled
• Refrigerants:
  • First stage: R452A
  • Second stage: R23 (0.8 kg)
• Circulation Pump:
  • Max. flow rate: 40 l/min (10.57 gpm)
  • Max. pressure: 0.9 bar (13.05 psi)
  • Pump connection: M30x1.5 AG male
  • Permissible viscosity: 50 mm/s
• Power Supply: 460V, 3-phase, 60Hz
• Filling Volume: Minimum 3.5 liters
• Expansion Volume: 5.3 liters
• Ambient Temperature: 5°C to 40°C
• Dimensions: 540 x 654 x 1500 mm (21.26 x 25.75 x 59.06 inches)
• Weight: Not specified

The Huber Unistat 905 is perfect for those requiring precise and reliable temperature control across a broad range of temperatures. Its high efficiency, user-friendly interface, and robust design ensure that it can meet the demands of both research and industrial applications.
