HUBER Unistat 915w -90°C to 250°C with Pilot ONE

The Huber Unistat 915w is a cutting-edge temperature control system designed to meet the highest standards in precision and performance for industrial applications. Equipped with advanced thermodynamic properties and a robust design, it ensures fast, accurate, and reliable temperature control for processes requiring the most demanding temperature ranges.

Key Features:

• Wide Temperature Range: With a range of -90°C to 250°C, the Unistat 915w is perfect for both ultra-low and high-temperature applications.
• Precise Control: 0.01°C temperature stability ensures highly accurate and reproducible results, essential for precise scientific and industrial work.

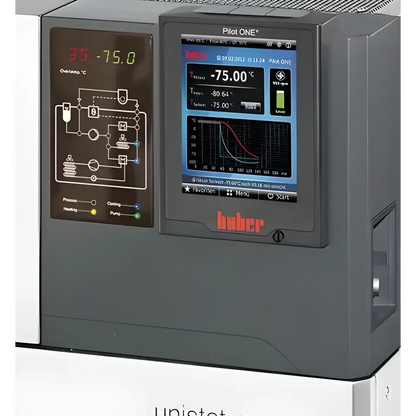

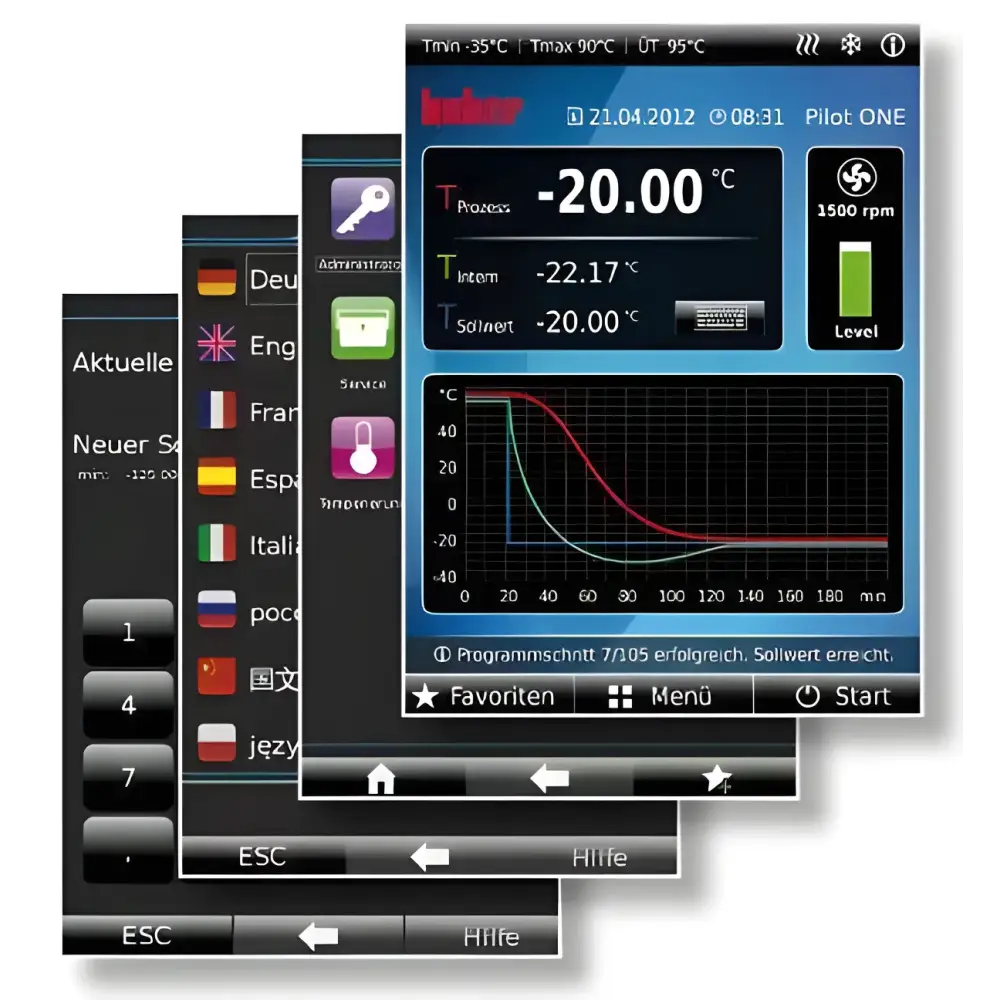

• Pilot ONE Controller: The 5.7" touchscreen offers an intuitive interface with graphic functions, real-time temperature curves, and easy-to-navigate menus for optimal user experience. Integrated USB, Ethernet, and RS232 interfaces enable remote control and data transmission.
• Adaptive Temperature Control: Self-optimizing True Adaptive Control (TAC) automatically adjusts to ensure optimal performance, reducing energy consumption and improving efficiency.
• Efficient Heating and Cooling: Equipped with 6kW heating capacity and up to 11kW cooling capacity, the system provides rapid and reliable thermal regulation for high-performance processes.
• Dual Refrigeration: The system utilizes R452A and R23 refrigerants to deliver superior cooling power, with water-cooled cooling for efficient heat dissipation.
• High Circulation Capacity: A powerful circulation pump with 110 l/min flow and 1.5 bar pressure ensures optimal heat transfer, protecting sensitive glass reactors with a soft start-up feature.
• Long Operational Life: The hydraulically sealed design reduces oil loss and minimizes oxidation, increasing the lifespan of the temperature control fluid and saving resources.
• Safety and Reliability: The Unistat 915w includes advanced safety features such as optical and acoustical alarm messages and ensures safe operation even in unsupervised continuous use.

Specifications:

• Dimensions: 630 x 704 x 1565 mm (W x D x H).
• Weight: 362 kg.
• Heating Capacity: 6 kW.
• Cooling Capacity:
  • At 250°C: 11 kW
  • At -90°C: 0.4 kW.
• Refrigerants: R452A (2.9 kg) and R23 (1.23 kg).
• Circulation Pump: 110 l/min; 1.5 bar, with M30x1.5 AG male connection.
• Filling Volume: 3.9 L minimum with an expansion volume of 6.5 L.
• Cooling Water Connection: G3/4 AG with min. 1 bar differential pressure and max. 6 bar pressure.
• Power Supply: 460V, 3-phase, 60Hz.

Applications:

• The Unistat 915w is ideal for high-performance processes requiring rapid heating/cooling and precise temperature control, such as winterization and laboratory testing for chemical and pharmaceutical industries. The system's versatility and precision make it suitable for demanding industrial environments where reliability and efficiency are paramount.

The Huber Unistat 915w combines power, precision, and user-friendly operation to meet the needs of professionals in industries requiring exceptional temperature management.
