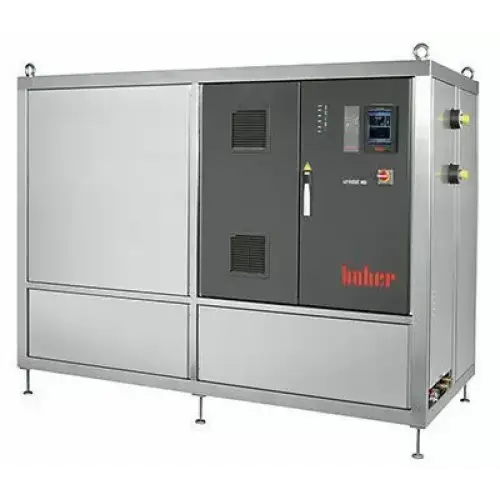

HUBER Unistat 950w -90°C to 200°C with Pilot ONE

The Huber Unistat 950w is a high-performance temperature control system designed for demanding applications, offering precision, speed, and efficiency. It combines cutting-edge features with robust capabilities to ensure optimal operation in industrial and laboratory environments. Below are its key features and specifications:

Key Features:

• Precise Temperature Control: Delivers reproducible temperature control results with a stability of 0.01°C, ensuring accuracy and reliability.
• Rapid Heating & Cooling: Achieves fast heating and cooling rates, improving process efficiency and reducing waiting times.
• Wide Temperature Range: Operates from -90°C to 200°C without the need for fluid changes, making it versatile across a wide range of applications.

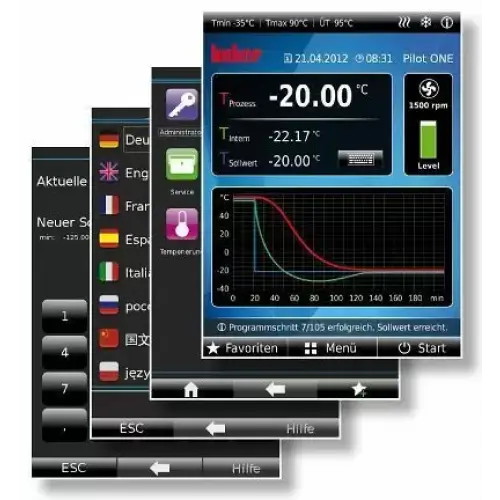

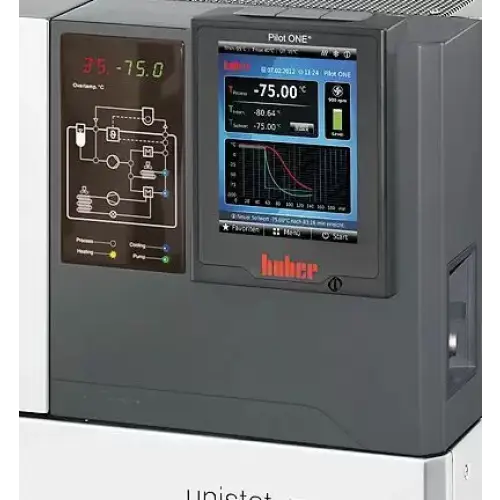

• Pilot ONE Controller: Features a 5.7" touchscreen with intuitive menu navigation, offering real-time graphical temperature curves and easy access to all key parameters.
• Adaptive Temperature Control: The self-optimizing True Adaptive Control (TAC) ensures precise and efficient temperature regulation.
• Efficient Circulation Pump: The system includes an advanced pump with a maximum flow of 240 l/min and 4 bar pressure, providing optimal heat transfer.
• Data Communication: Supports multiple communication interfaces, including LAN, USB, RS232, and RS485 for easy remote control and data transfer.
• Energy Efficiency: Designed for efficient operation, the Unistat 950w helps save both time and operating costs.
• Proven for the Process Industry: Reliable functionality and performance make it ideal for industrial applications requiring continuous, unsupervised operation.

Specifications:

• Temperature Range: -90°C to 200°C
• Temperature Stability: 0.01°C
• Heating Capacity: 36 kW
• Cooling Capacity:
  • At 200°C: 36 kW
  • At 0°C: 36 kW
  • At -80°C: 10 kW
• Cooling Method: Water-cooled
• Refrigerants:
  • First stage: R452A
  • Second stage: R23 (7 kg)
• Circulation Pump:
  • Max. flow rate: 240 l/min (63.41 gpm)
  • Max. pressure: 4 bar (58 psi)
  • Pump connection: Flansch DN40 PN10/40 EN1092-1
  • Permissible viscosity: 100 mm/s
• Power Supply: 460V, 3-phase, 60Hz
• Filling Volume: Minimum 30 liters (7.93 gal)
• Expansion Volume: 90 liters (23.78 gal)
• Cooling Water Requirements:
  • Minimum differential pressure: 3 bar (43.5 psi)
  • Maximum cooling water pressure: 6 bar (87 psi)
• Ambient Temperature: 5°C to 40°C
• Dimensions: 2630 x 1300 x 1980 mm (103.54 x 51.18 x 77.95 inches)
• Weight: Not specified

The Huber Unistat 950w is ideal for large-scale industrial processes where precise and rapid temperature control is required. Its efficient operation, combined with the Pilot ONE controller and advanced pump technology, makes it a powerful tool for optimizing performance and reducing operating costs.
