MiniMag Magnetic Stirrers

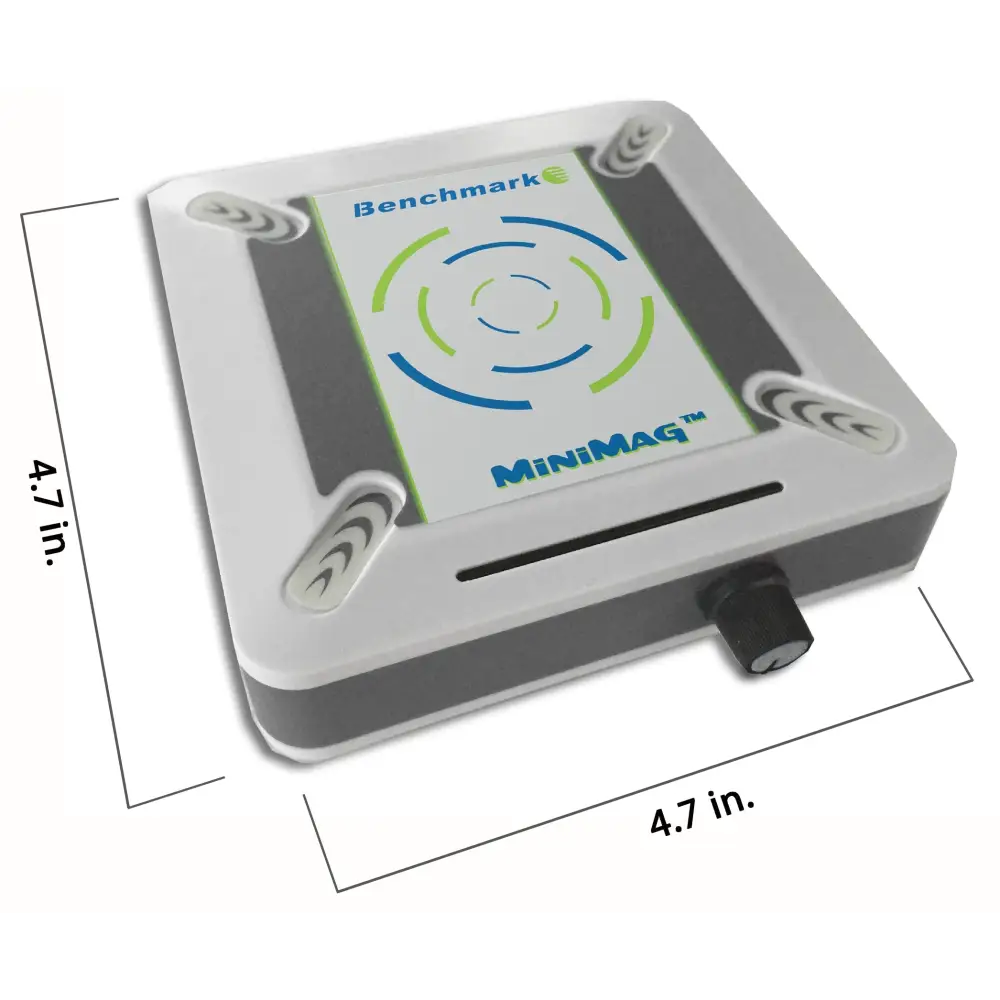

MiniMag™ Mini Magnetic Stirrer

The MiniMag™ Mini Magnetic Stirrer offers a compact and efficient solution for stirring small volumes of liquids in laboratory applications. With a footprint of under 5 inches wide, this device is the most compact stirrer in the Benchmark lineup, making it ideal for tight spaces and crowded benchtops. Despite its small size, the MiniMag™ can effectively mix volumes of up to 1.5 liters, offering versatility for a wide range of laboratory tasks.

Key Features:

• Compact Design: The MiniMag™ has a square platform of just 3.4 x 3.4 inches (8.5 x 8.5 cm), making it highly space-efficient and perfect for smaller work areas.
• Adjustable Speed Control: The stirring speed is continuously adjustable from 100 to 1500 rpm, providing flexibility for different mixing needs and sample types.
• Effective for Larger Volumes: Despite its small size, it can stir volumes up to 1.5 liters, making it suitable for various laboratory vessels, including beakers, flasks, and bottles.
• Temperature Safety: The MiniMag™ is safe for use in incubators and cold rooms, operating within a temperature range of +4°C to +45°C, ensuring reliable performance under different environmental conditions.
• Durable and Lightweight: The unit’s design is durable yet lightweight, weighing just 0.45 lbs (0.2 kg), and is constructed for long-lasting use in laboratory environments.

Technical Specifications:

• Speed Range: 100 to 1500 rpm
• Platform Dimensions: 3.4 x 3.4 in / 8.5 x 8.5 cm
• Operating Temperature Range: +4°C to +45°C
• Max Stir Bar: 30 mm
• Dimensions (WxDxH): 4.7 x 4.7 x 1.2 in / 12 x 12 x 3.1 cm
• Weight: 0.45 lbs (0.2 kg)
• Electrical: 100 to 240VAC, 50-60Hz, 2W (15V DC power supply)
• Warranty: 1 year

Ordering Information:

• S1005: MiniMag™ Mini Magnetic Stirrer

The MiniMag™ is a versatile and reliable magnetic stirrer ideal for laboratories with limited space. Its adjustable speed, compact design, and ability to mix larger volumes make it a valuable tool for any research, educational, or quality control laboratory.
