Orbi-Shaker™ JR (Orbital Shaker, 19mm) Accessories

Benchmark Orbi-Shaker™ Series

The Orbi-Shaker™ Series by Benchmark Scientific offers reliable and efficient orbital shaking for a wide range of laboratory applications. With digital speed control and variable speed options, these shakers are ideal for mixing and aerating samples in flasks, microplates, test tubes, and more. Each model in the Orbi-Shaker™ series features a unique shaking orbit and is designed to cater to different sample sizes and throughput requirements.

Key Features:

1. Orbital Shaking Motion: The Orbi-Shaker™ units utilize precisely controlled, circular (orbital) motion, ensuring even mixing for a variety of samples. The shakers can accommodate different vessels like Erlenmeyer flasks, microplates, and test tubes.

2. Multiple Models for Different Needs:

   • Orbi-Shaker JR: Ideal for small sample sizes and compact spaces, this model features a 19 mm orbital motion and can accommodate up to 12 x 50 ml flasks. With digital speed control from 50 to 300 rpm, it's perfect for general mixing tasks.
   • Orbi-Shaker: With a 19 mm orbital motion and capacity to hold up to 14 x 250 ml flasks or 9 x 500 ml flasks, this model is suited for mid-to-high-volume laboratory applications.
   • Orbi-Shaker MP: Specifically designed for mixing microplates, the 3 mm orbital motion can handle up to 4 microplates, and the speed ranges from 200 to 1500 rpm, making it ideal for high-speed mixing in well plates.
   • Orbi-Blotter: A low-speed orbital shaker designed for gentle mixing of gels and blots, with a speed range of 3 to 70 rpm. Ideal for sensitive applications, it features a large 14x12 in platform that can hold various flat-bottomed vessels.

3. Digital Control: All models feature digital speed control, providing easy adjustments for precise control over mixing speed. The models with digital controls allow users to adjust and monitor the speed for optimized sample mixing.

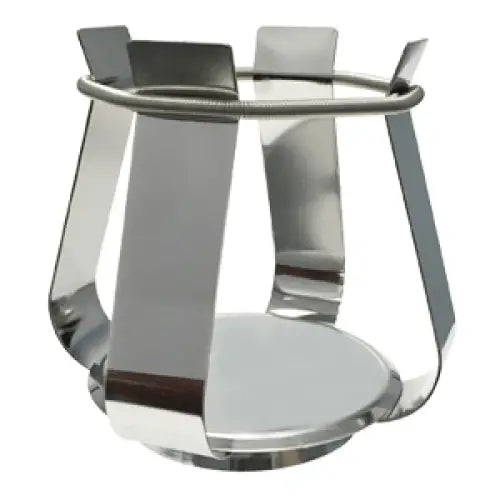

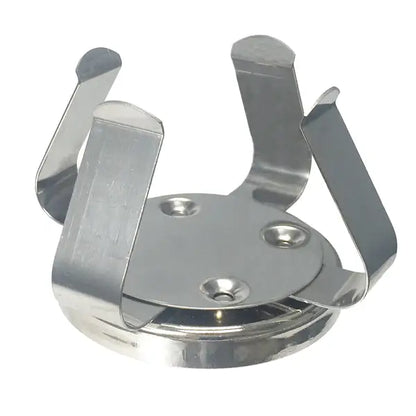

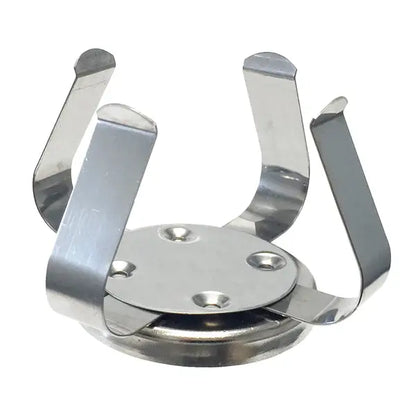

4. MAGic Clamp™ Platform: The Orbi-Shaker models include MAGic Clamp™ platforms, which secure flasks and tubes without the need for additional clamps. This innovative attachment method allows easy changes between flasks of different sizes.

5. Compact and Durable Design: The units are designed to fit in compact spaces, with a solid, sturdy platform to securely hold your samples during operation.

Technical Specifications:

• Orbi-Shaker JR:
  • Speed Range: 50 to 300 rpm
  • Orbit Size: 19 mm
  • Maximum Capacity: 12 x 50 ml flasks
  • Dimensions: 9.5 x 8 in (24 x 20.3 cm)
  • Weight: 12 lbs (5.5 kg)
  • Electrical: 100-240V, 50-60Hz
• Orbi-Shaker:
  • Speed Range: 30 to 300 rpm
  • Orbit Size: 19 mm
  • Maximum Capacity: 14 x 250 ml flasks or 9 x 500 ml flasks
  • Dimensions: 14 x 12 in (35.6 x 30.5 cm)
  • Weight: 25 lbs (11.5 kg)
  • Electrical: 120V, 230V, 50-60Hz
• Orbi-Shaker MP:
  • Speed Range: 200 to 1500 rpm
  • Orbit Size: 3 mm
  • Maximum Capacity: Up to 4 microplates
  • Dimensions: 13.1 x 11.7 x 4.7 in (33.3 x 29.7 x 12 cm)
  • Weight: 12 lbs (5.5 kg)
  • Electrical: 100-240V, 50-60Hz
• Orbi-Blotter:
  • Speed Range: 3 to 70 rpm
  • Orbit Size: 19 mm
  • Dimensions: 14 x 12 in (35.5 x 30.3 cm)
  • Weight: 15 lbs (6.8 kg)
  • Electrical: 120V or 230V, 50-60Hz

Ordering Information:

• Orbi-Shaker JR:
  • BT300: Orbi-Shaker JR with non-slip rubber mat platform
  • H1000-MR: MAGIC Clamp™ universal platform for 50 ml and 125 ml flasks
  • H1000-MR-125: Clamp for MAGIC Clamp™ platform (125 ml flasks)
• Orbi-Shaker:
  • BT3000: Orbi-Shaker with non-slip rubber mat platform
  • H1000-MR-500: Clamp for MAGIC Clamp™ platform (500 ml flasks)
• Orbi-Shaker MP:
  • BT1502: Orbi-Shaker MP with platform for 4 microplates
  • BT1500-A1520: Microtube adapter for H6004 microplates
• Orbi-Blotter:
  • BT30: Orbi-Blotter™ low-speed orbital shaker with non-slip rubber mat
  • BR2000-STACK: Stacking platform for increased work surface area

Conclusion: The Orbi-Shaker™ Series is an essential tool for laboratory workflows requiring precise, gentle mixing and shaking. With a range of models suitable for both small-scale and high-volume applications, the Orbi-Shaker™ provides flexibility for a variety of sample types, from microplates to large flasks. The MAGic Clamp™ technology allows for quick and easy changes between flask sizes, improving workflow efficiency. Whether you're working with gels, blots, or cell cultures, the Orbi-Shaker™ is designed to meet your needs with reliability and ease.
