SIEVA-3 Filtration Centrifuge Accessories

Hermle Benchmark SIEVA-3 Centrifuge System

The SIEVA-3 Centrifuge System by Hermle Benchmark is designed for precise and efficient centrifugation, providing powerful performance with advanced safety features. Ideal for laboratories handling high-volume samples, the SIEVA-3 is a versatile and reliable centrifuge, available in several configurations to meet different operational needs.

Key Features:

• Maintenance-Free Induction Drive: Ensures durable, consistent performance with minimal maintenance requirements.
• Microprocessor-Controlled Speed Regulation: Allows precise speed control from 200 rpm to 10,000 rpm, adjustable in increments of 10 rpm.
• Versatile Timing Options: Set the running time from as little as 10 seconds to 99 minutes and 59 seconds, or select a continuous run for extended applications.
• Safety-Focused Design:
  • Automatic imbalance shut-off.
  • Lid lock with transparent viewing window for enhanced visual control.
  • Stainless steel chamber and housing parts ensure durability and compliance with strict safety regulations (IEC 61010 and 61010-2).

Technical Specifications:

• Max Speed: 10,000 rpm
• Max RCF: 7,825 x g
• Power Supply: 230V / 120V with 0.85 kW power consumption
• Dimensions: 38 x 32 x 50 cm
• Weight: Approx. 37-43 kg depending on model

Centrifugal Baskets (500 ml Capacity):

1. Perforated Basket (Order No: Z600-S3-P) – Standard option with perforated design.
2. Non-Perforated Basket (Order No: Z600-S3-NP) – Ideal for applications requiring a solid design without perforations.
3. Perforated with Special Coating (Order No: Z600-S3-PC) – Includes "SafeCode 778" coating for enhanced protection and longevity.

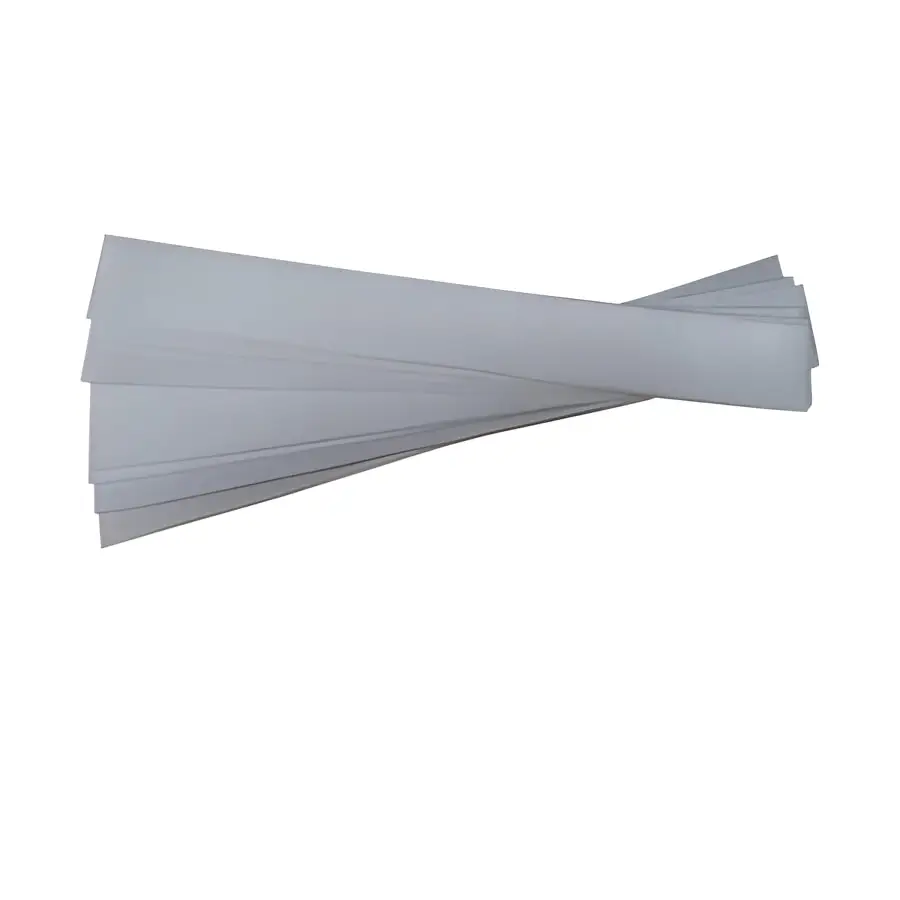

Filter Materials:

The system supports different filter materials, each available in pore sizes of 7µ, 20µ, 30µ, and 50µ (Order Nos: Z600-S3-F7U, Z600-S3-F20U, Z600-S3-F30U, Z600-S3-F50U). These are packaged in units with 10 filters per pack, providing flexibility for specific filtration needs.

SIEVA-3 Units and Additional Options:

• Standard Units: Available for both 120V and 230V configurations.
• External Temperature Equalization: Models with external temperature control options are available, including versions with SafeCode 778 coating and USB connectivity for precise temperature management.

With a blend of advanced functionality, versatile accessories, and robust safety features, the Hermle Benchmark SIEVA-3 Centrifuge System is a comprehensive solution for laboratories requiring efficient and reliable centrifugation across a wide range of applications.
